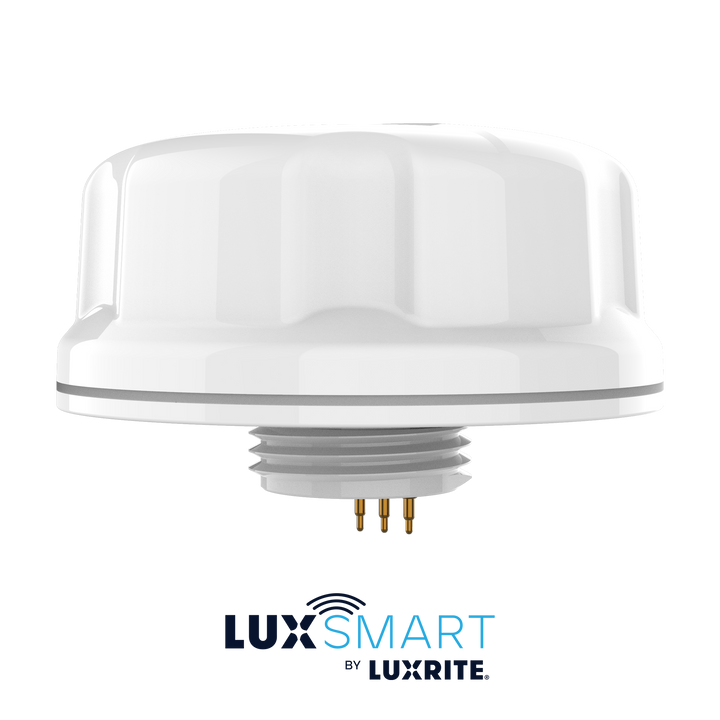

Bi-Level Adjustable Microwave Smart Motion Sensor | Luxrite LR41511

Improve energy efficiency and automate your commercial lighting system with the LR41511 Bi-Level Adjustable Microwave Smart Motion Sensor, an advanced occupancy sensor designed for reliable motion detection and intelligent lighting control. Ideal for warehouses, offices, parking garages, stairwells, storage rooms, retail backrooms, workshops, and industrial facilities, this compact sensor helps reduce wasted energy while improving safety and convenience.

The LEDSNS/MW/BiLevel/SMRT/3XP uses advanced microwave sensing technology operating at 5.8GHz ±75MHz, delivering dependable motion detection even in challenging environments where passive infrared sensors may be less effective. Microwave sensors can detect movement through non-metallic materials and are less impacted by ambient temperature changes, making them an excellent solution for professional lighting systems.

This smart sensor features Bi-Level lighting control, automatically switching fixtures to full brightness when motion is detected and lowering output to a standby dimmed level when the area becomes vacant. This helps maximize energy savings, extend fixture lifespan, and maintain a safe low-light environment when spaces are unoccupied.

Designed with adjustable smart controls, the LR41511 is ideal for customizing detection behavior based on room size, occupancy patterns, and lighting requirements. It supports 0-10V dimming, making it compatible with many LED fixtures and control systems for smooth automated operation.

With a compact size of 2.12" x 0.96", this white-finished sensor includes an audio jack base for fast connection and simplified installation. Operating on 12V low voltage, it draws less than 50mA, offering efficient long-term performance.

Built for demanding environments, this sensor performs in extreme temperatures from -40°F to 158°F, making it suitable for cold storage, industrial facilities, and harsh indoor or covered outdoor conditions where compatible fixtures are used.

Choose the LR41511 Microwave Smart Motion Sensor for advanced occupancy control, lower energy costs, and smarter commercial LED lighting automation.

Technical Specifications

Model Number: LR41511
Item Number: LR41511
Description: LEDSNS/MW/BiLevel/SMRT/3XP

Product Type: Microwave Smart Motion Sensor
Control Type: Bi-Level Adjustable Occupancy Sensor
Shape: Smart Motion Sensor
Base Type: Audio Jack
Finish: White

Dimensions:

• Size: 2.12" x 0.96"
• Diameter: Ø2.12"
• Depth: 0.96"

Electrical:

• Power Consumption: 0.5W
• Input Voltage: 12V
• Dimming: 0-10V
• Input Current: <50mA
• Frequency: 5.8GHz ±75MHz

Operating Temperature:

• Minimum: -40°F
• Maximum: 158°F

Packaging:

• UPC Barcode: 793888462441
• Master Barcode: 10793888462448
• Master Carton Dimensions: 15.78" x 11.81" x 9.29"
