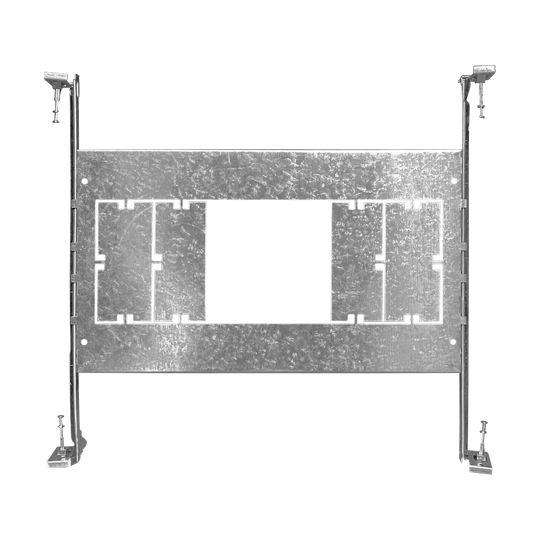

3 Size New Construction Square Mounting Plate | Luxrite LR41013

Streamline your rough-in installations and ensure structurally centered layouts across changing multi-fixture specifications with the Universal New Construction Square Mounting Plate. Identified by product code LR41013 (Ordering Code: MPS-UNV-4.25/7.75/11.75), this highly adaptable rough-in ceiling plate provides a heavy-duty framing framework for newly constructed or completely remodeled spaces before the drywall sheetrock is applied. Engineered with multi-tiered structural square knockouts, a single universal layout sheet handles three distinct standard architectural framing dimensions—providing precision alignments for compact, intermediate, or expansive square downlight system modules.

Measuring 15.55" in length by 7.87" in width with a low-profile depth of 0.86", this installation alignment tracker is made out of heavy-duty galvanized steel. The premium weather-resistant galvanized outer treatment completely seals the underlying steel from rust, degradation, and ambient moisture damage, protecting the structural integrity of the ceiling infrastructure over time. The structural flat design mounts directly to standard wood joists, heavy T-bar channels, or metallic furring strips, holding the ceiling location steady to protect subsequent drywall trimming, mudding, and plaster finishing lines from structural bowing or layout mistakes.

Multi-Aperture Construction Efficiency & Wholesale Grid Management:

Perfectly proportioned for commercial offices, residential living complexes, and high-volume retail renovations, this multi-tiered tracking frame integrates seamlessly with various square recessed fixture frameworks. It offers general contractors, drywall trades, and electrical installation crews a standard, error-free method to center and align architectural downlights across massive ceiling grids.

Key Features:

• 3-in-1 Triple Aperture Configuration: Built-in structural knockouts adapt directly to three layout sizes (4.25", 7.75", and 11.75") to seamlessly match your design needs.

• Rigid Galvanized Steel Frame: Heavy-duty, corrosion-resistant steel framework resists twisting, handling construction stress and environmental humidity with ease.

• Flat Low-Profile Framing Fit: A slim 0.86" depth keeps the plate flush with joists, ensuring drywall sheets fit tightly and flat against the ceiling.

• Precise Geometric Center Tracking: Simplifies rough-in layouts by helping trades pinpoint exactly where to cut drywall before lighting fixtures are installed.

• High-Volume Commercial Distribution: Shipped in wholesale master cases of 20 units to effectively support extensive, fast-paced commercial and residential jobsites.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 732388921164

• Master Case Barcode Identifier: 10732388921161

• Master Carton Outer Volume Dimensions: 17.71" Length × 17.71" Width × 15.35" Height

• Master Carton Wholesale Quantity: 20 Units per Case
