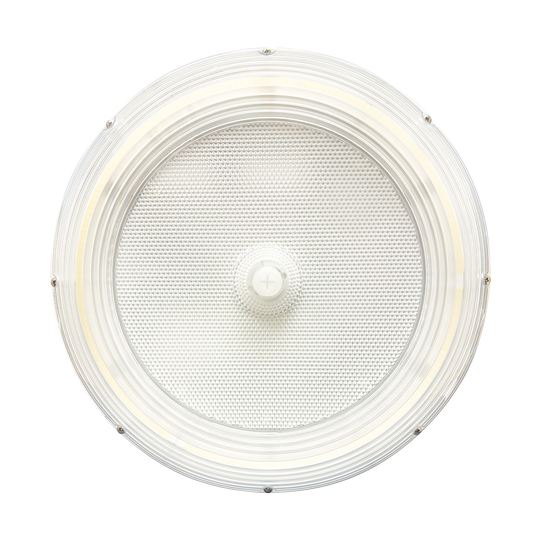

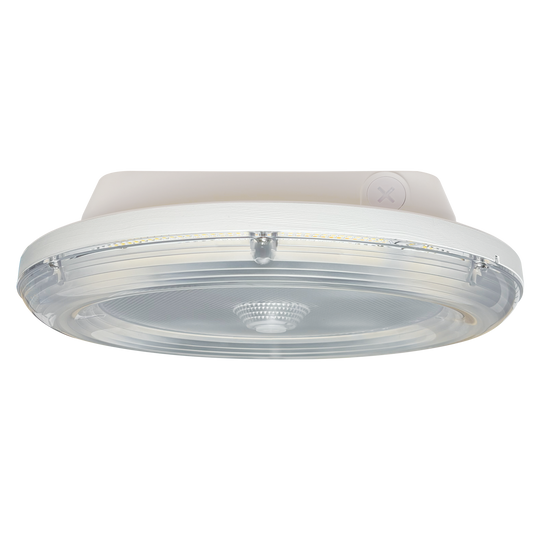

100W Round Garage Canopy | 12,000 Lumens Max | CCT Selectable | Luxrite LR40720

The LR40720 is a high-performance 100W round LED garage canopy light engineered for commercial parking structures, storage facilities, covered walkways, and outdoor canopy applications. Designed with field-selectable wattage and color temperature controls, this versatile fixture allows installers to adjust power output (30W, 50W, 75W, or 100W) and choose between 3000K Warm White, 4000K Cool White, and 5000K Daylight CCT settings directly on-site.

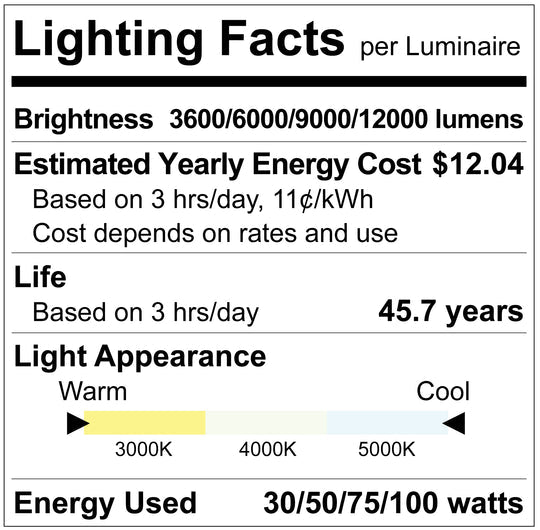

Delivering up to 12,000 lumens of ultra-bright illumination with an efficacy of 120 lm/W and a wide 150° beam angle, the LR40720 ensures uniform, glare-reducing light distribution and features an optional upward lighting feature to eliminate dark ceiling gaps. Operating on a universal 120-277V voltage range, it supports 0-10V continuous dimming, operates reliably in extreme temperatures (-40°F to 113°F), and provides a 50,000-hour rated service life for low maintenance costs over time.

Key Features:

• 4-Wattage Selectable: Field-adjustable switch allows selection between 30W (3,600 lm), 50W (6,000 lm), 75W (9,000 lm), and 100W (12,000 lm).

• 3-CCT Color Selectable: Integrated CCT switch enables instant adjustment between 3000K, 4000K, and 5000K color temperatures.

• Optional Upward Illumination: Designed to provide indirect upward ambient light to prevent the "dark ceiling" effect in parking garages and canopies.

• Universal Commercial Voltage & Dimming: Operates on 120-277V AC input with standard 0-10V dimming capability.

• Rugged Commercial Construction: Durable white housing engineered for demanding environments with an operating temperature range of -40°F to 113°F (-40°C to 45°C).

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Logistics Specifications
