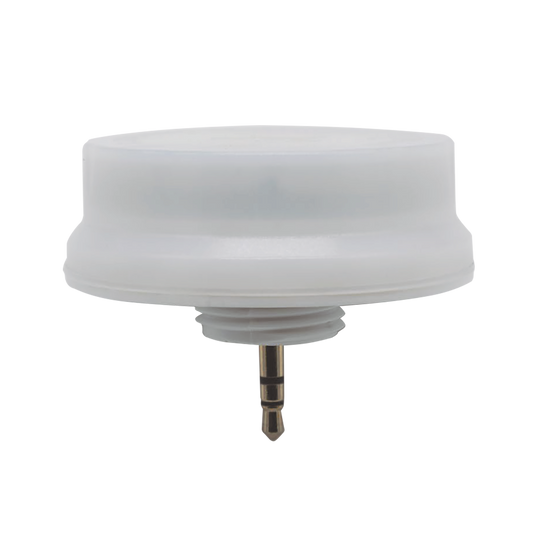

Photocell & Daylight Sensor | 12VDC | Luxrite LR40714

Automate light output and harvest natural daylight efficiently with the Luxrite LR40714 12VDC Photocell & Daylight Sensor. Designed for seamless, plug-and-play installation in compatible commercial LED fixtures, this compact sensor features an Audio Jack base for quick, tool-free field attachment and maintenance.

Operating on a 12V DC input, the LR40714 integrates with 0-10V dimming systems to automatically adjust fixture lumen output based on surrounding ambient light levels. With a compact 2.12" diameter footprint and a durable white finish, it operates reliably across a wide temperature range of -4ºF to 140ºF (-20ºC to 60ºC), making it an ideal choice for energy-saving commercial canopy and outdoor fixture controls.

Key Features:

• Tool-Free Audio Jack Connection: Features an Audio Jack base for fast, plug-and-play mounting into compatible commercial fixtures.

• Daylight Harvesting & Photocell Control: Automatically senses ambient daylight levels to dynamically dim or switch lighting fixtures, maximizing energy savings.

• 0-10V Dimming Integration: Connects with 0-10V dimming drivers for smooth, continuous lighting control.

• Low-Voltage Operation: Powered by a 12V DC circuit with an input current of >30mA.

• Compact Commercial Design: Measures Ø2.12" with a slim 0.78" depth, engineered for operating environments from -4ºF to 140ºF.

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Logistics Specifications
