18 Inch Up-Down HO Outdoor Cylinder Wall Sconce | 40W Max | 4.000Lm Max | 3-CCT Selectable | 120/277V

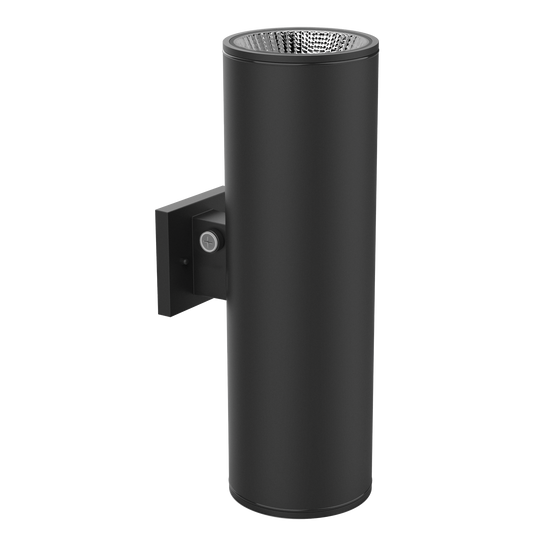

Illuminate expansive exterior spaces with the LR40339 18" Up-Down High Output Outdoor Cylinder, finished in sleek black. Designed with a tall cylindrical profile, this LED fixture provides powerful up-and-down architectural lighting, ideal for residential, commercial, and hospitality exteriors. Perfect for building facades, patios, entryways, walkways, and landscape walls, it combines bold design with high-performance illumination.

Featuring CCT and wattage selectable technology, the LR40339 allows selection of 3000K, 4000K, or 5000K color temperatures and 20W, 30W, or 40W power levels, delivering 2000–4000 lumens for bright, high-output lighting. Its 25° beam angle and CRI of 80 ensure precise, uniform illumination for accent, task, or ambient applications.

This fixture operates on 120–277V with dual dimming capabilities (TRIAC @120V / 0–10V @120–277V) and offers a 50,000-hour rated lifetime, 80 lm/W efficacy, and 0.9 power factor. It functions reliably in outdoor environments from –4°F to 113°F, with an estimated yearly energy cost of $4.81. Each unit ships with complete UPC and master barcode details for simplified inventory management and distribution.

🔧 Technical Specifications

Physical Dimensions

• Size: 18"

• Length: 18"

• Width: 4.25"

• Depth: 8.23"

• Shape: Outdoor Cylinder

• Finish: Black

• MOL: 18"

Photometric & Electrical

• Lumen Output: 2000 / 3000 / 4000

• Beam Angle: 25°

• CRI: 80

• CCT Options: 3000K / 4000K / 5000K

• Power: 20W / 30W / 40W

• Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Lumen Efficacy: 80 lm/W

• Power Factor: 0.9

• Frequency: 50/60Hz

• Dimmable: TRIAC @120V / 0–10V @120–277V

• Operating Temperature: –4°F to 113°F

• Estimated Yearly Energy Cost: $4.81

Packaging

• UPC Barcode: 793888420045

• Master Barcode: 10793888420042

• Master Carton Dimensions: 18.30" L × 12.60" W × 19.40" H

• Master Carton Weight: 29.74 lbs

• Case Size: 4
