4 Inch Interlocking Trimless Module LED Downlight | 1K Lm | 120V | CCT Selectable | Trimlux Collection | Luxrite LR25490

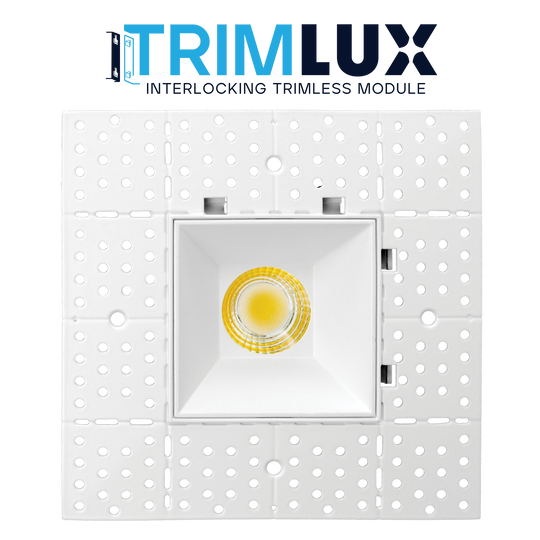

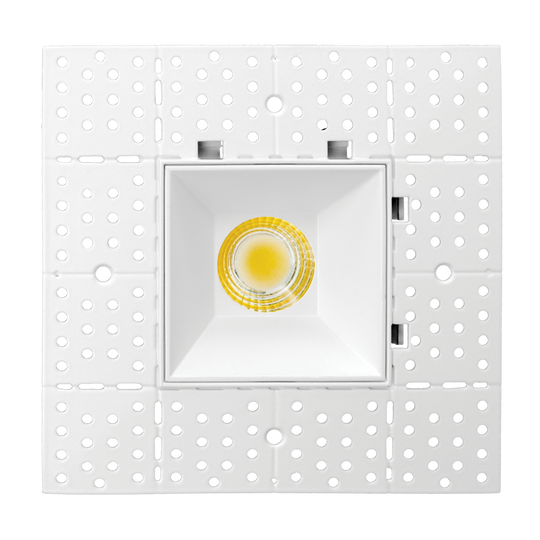

Achieve a bold geometric presentation and clean architectural symmetry with the 4" Interlocking Trimless Square LED Module. Identified by product code LR25490 (Ordering Code: LED/ITLMD4/5CCT/SQ/WT/D), this large-aperture recessed light fixture brings pristine, modern lines to high-end custom ceilings. Finished in a premium matte white (WT), its specialized interlocking plaster frame muds directly into drywall layouts. This eliminates visible outer decorative flanges or trim rings entirely, keeping your ceiling planes perfectly flush, minimalist, and seamless.

Equipped with an adaptable on-board 5-CCT selectable toggle switch, this 4-inch architectural module lets you fine-tune the color profile directly on the job site. Toggle between warm 2700K, cozy 3000K, balanced 3500K, neutral 4000K, and crisp 5000K daylight settings to perfectly complement changing interior finishes and color schemes. The custom-engineered 38º beam optics deliver a clean, impactful narrow flood light distribution, ideal for task spaces, highlighting focal elements, or creating high-contrast pools of light. Driven by an efficient 15-watt electrical engine, the downlight produces a punchy 1,000 lumens with a high 90 CRI (Color Rendering Index) rating, ensuring artwork, wall textures, and fabrics look vibrant and true to color.

Shallow Plenum Capability & Smooth Residential Control:

Optimized for premium custom homes, high-end galleries, and luxury hospitality spaces, this 120-volt module features a high-performance Triac dimming engine for smooth, flicker-free dimming down to low levels on standard residential dimmers. Operating with a high 0.9 power factor, the low-draw fixture remains highly economical, carrying an estimated yearly energy cost of just $1.80. The protective structural housing features a slim profile measuring just 3.30" in depth, making it perfect for shallow ceiling plenums or installations where space is tight, while allowing the light to operate reliably from -4ºF up to 104ºF over an outstanding 50,000-hour rated operational lifetime.

Key Features:

• Bold 4" Micro-Square Profile: Large geometric footprint offers a strong architectural statement while maintaining a borderless, completely integrated layout.

• 38º Precise Narrow Flood Beam: High-grade optical lens directs a punchy beam pattern that handles high-ceiling installations or accent displays flawlessly.

• 5-CCT Field Selectable Toggle: Conveniently switch between five white light profiles (2700K to 5000K) during installation to capture the exact mood of any space.

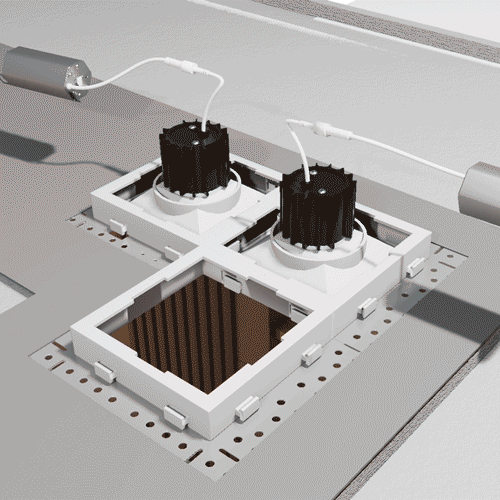

• Interlocking Mud-In Trimless Trim: Snaps securely into matching interlocking framing structures for a high-strength, permanent, crack-free plaster-in finish.

• Low-Profile Shallow Housing: Slim 3.30" depth bypasses tight ceiling joists or framing obstructions without compromising lumen performance.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 793888432345

• Master Case Barcode Identifier: 10793888432342

• Master Carton Outer Volume Dimensions: 24.80" Length × 16.73" Width × 12.20" Height

• Master Carton Wholesale Quantity: 18 Units per Case
