Luxrite 1 Inch Interlocking Trimless Module LED Downlight | 500Lm | 120V | CCT Selectable | Trimlux Collection | Luxrite LR25470

$99.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Certs:

ETL Certified

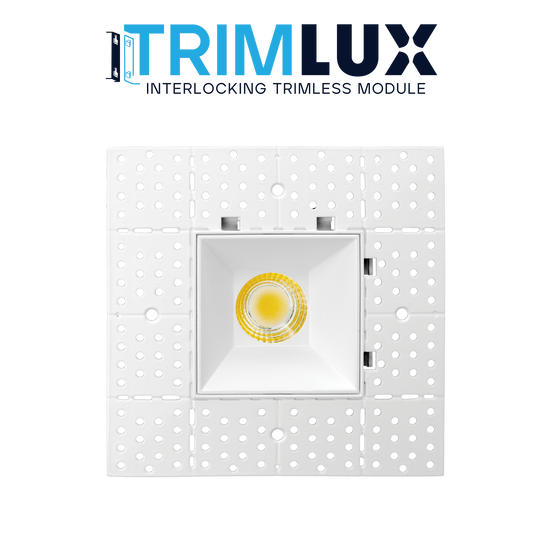

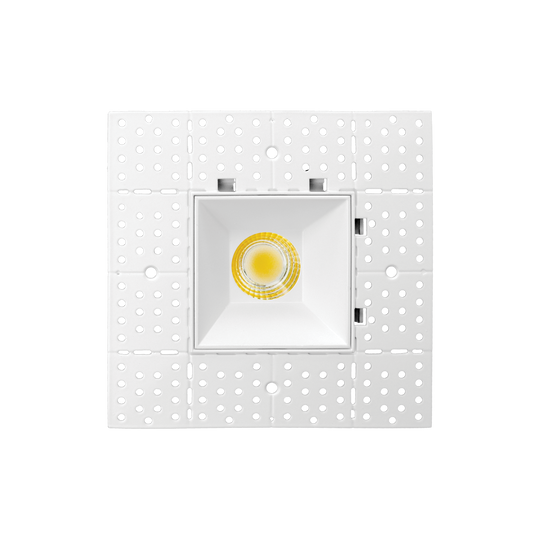

Achieve an ultra-minimalist, high-end design aesthetic with the 1" Interlocking Trimless Square LED Module. Identified by product code LR25470 (Ordering Code: LED/ITLMD1/5CCT/SQ/WT/D), this micro-aperture architectural fixture features a sleek, square layout designed to integrate seamlessly into modern ceiling configurations. Finished in a fine matte white (WT), its specialized interlocking plaster frame mounts flush into drywall ceilings, providing a completely borderless finish that keeps focus on the architecture rather than the fixture.

Equipped with an onboard 5-CCT selectable toggle switch, this compact light source allows you to quickly dial in the perfect color temperature right on-site, cycling between warm 2700K, cozy 3000K, neutral 3500K, crisp 4000K, and clean 5000K daylight profiles. Featuring a specialized 38º directional beam angle, it concentrates output into a precise, punchy narrow flood pattern, making it ideal for task lighting, artwork accentuation, or clean pools of light in corridors and residential living spaces. Running on a low-draw 7-watt engine, it fires 500 lumens of brightness at a luminous efficacy of 75 lumens per watt. A color rendering performance index of 90 CRI guarantees high-fidelity, vibrant color reproduction throughout your interior.

Micro-Aperture Efficiency & Clean Residential Control:

Perfectly proportioned for custom residential layouts and minimalist retail spaces, this 120-volt fixture includes a high-performance Triac dimming engine for smooth, flicker-free control on standard wall dimmers. Operating with a high 0.9 power factor, this micro-fixture stays incredibly economical, running at an estimated yearly energy cost of just $0.84. Built to maintain steady thermal management within compact housing frames, it is rated to operate smoothly from -4ºF up to 104ºF across a long-lasting 50,000-hour rated operational lifetime.

Key Features:

  • Ultra-Compact 1" Micro-Square Profile: Minimal footprint delivers a sleek, geometric appearance that blends into high-end architectural concepts.

  • 38º Precise Directional Optics: Projects a well-defined narrow flood beam perfect for targeted task areas or crisp display highlighting.

  • 5-CCT Field Selectable Switch: Easily toggle between warm hospitality tones or bright daylight settings during installation to match any room palette.

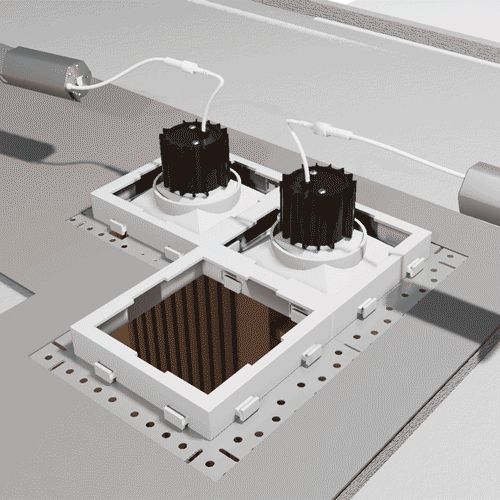

  • Interlocking Trimless Mud-In Ring: Pairs perfectly with the interlocking framework system for a completely seamless, high-end borderless ceiling look.

  • Smooth Triac Dimming Control: Engineered for clean, residential dimming response on a standard 120V power supply.

Technical Specification Table

Technical Specification Product Details (LR25470 Profile)
Item Registry Number LR25470
Ordering Code LED/ITLMD1/5CCT/SQ/WT/D
Product Category Micro-Aperture Interlocking Square Trimless Recessed LED Module
Aperture System Fit 1 Inch Downlight Framework
Power Consumption 7 Watts
Luminous Output 500 Lumens
Luminous Efficacy 75 Lumens per Watt
Color Rendering Index (CRI) 90 High Fidelity Rendering
Color Temperatures (5CCT) Selectable: 2700K / 3000K / 3500K / 4000K / 5000K
Optical Beam Profile 38º Narrow Flood
Aesthetic Surface Finish Fine Matte White (WT)
Physical Dimensions 4.25" Length × 4.25" Width × 3.42" Structural Depth
Ceiling Cutout Dimensions 2.44" × 2.44" (62.0 mm × 62.0 mm) Square Cutout
Input Volts Baseline 120V AC
Dimming Protocols Triac Wall Dimmers
Power Factor 0.9
Operating Frequency 60 Hz
Thermal Operating Limits Min: -4ºF (-20ºC) | Max: 104ºF (40ºC)
Rated Operational Lifespan 50,000 Hours

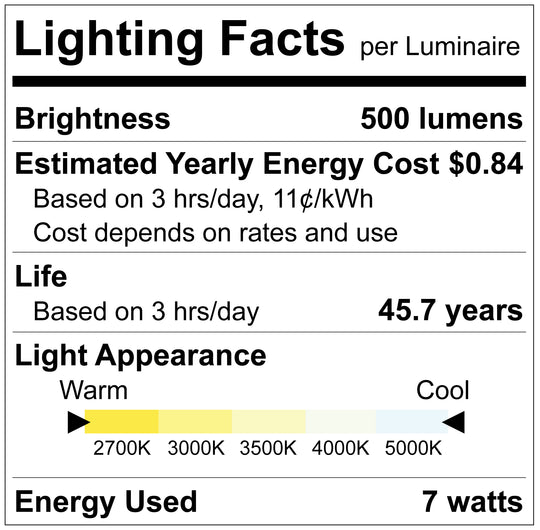

Estimated Yearly Cost $0.84 (Based on standard utility rates)

Logistics & Packaging Specifications

  • UPC Barcode Registration: 793888431348

  • Master Case Barcode Identifier: 10793888431345

  • Master Carton Outer Volume Dimensions: 15.94" Length × 15.94" Width × 6.89" Height

  • Master Carton Wholesale Quantity: 18 Units per Case
