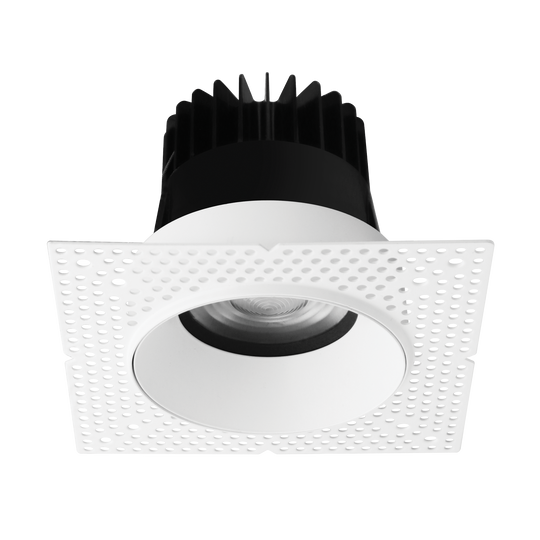

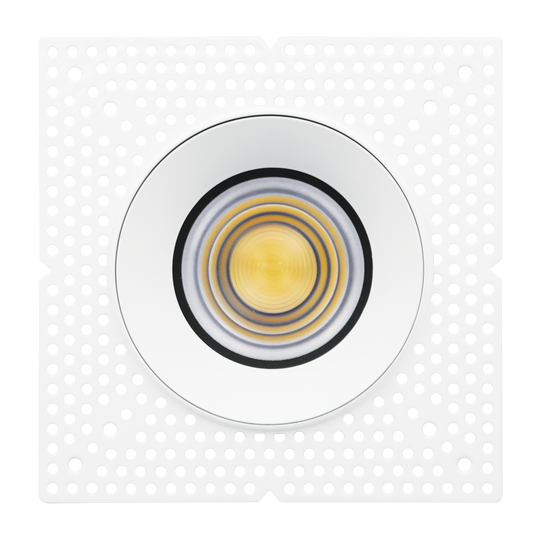

4 Inch Regressed Push N'Lock Zoomable Trimless LED Downlight | 2,100Lm | 120/277V | CCT Selectable | Chatam Collection | Luxrite LR25463

Deliver ultimate high-output performance and precise optical tailoring to larger spaces with the 4" Regressed Trimless Push N' Lock Zoomable Spotlight. Identified by product code LR25463 (Ordering Code: LED/TLMD4HO/5CCT/RD/WT/UNV/DD/ZM), this complete, professional-grade architectural recessed luminaire is engineered for high-ceiling environments and premium spatial lighting. Finished in a clean matte white (WT), its modern mud-in framework creates a completely borderless transition into drywall ceilings, while the deeply regressed lighting engine hides lens glare for elevated visual comfort.

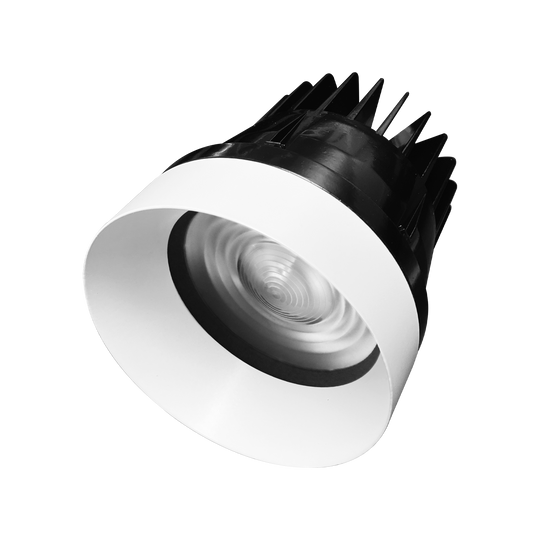

This architectural luminaire features an integrated mechanical zoom lens, allowing lighting designers or installers to smoothly dial the beam angle from a precise 24º accent spot to a 50º wide flood light with a quick adjustment. A built-in 5-CCT selectable switch offers a choice of five distinct white color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K), giving you the freedom to match or shift the room's ambiance late in construction or during future layout changes. Fueled by a powerful 25-watt high-output engine, the fixture pushes out an impressive 2100 lumens with an efficacy of 84 lumens per watt. A high color fidelity rating of 90 CRI ensures that textures, skin tones, and decorative furnishings are rendered with rich, lifelike precision.

Universal Electrical Performance & Commercial Grade Control:

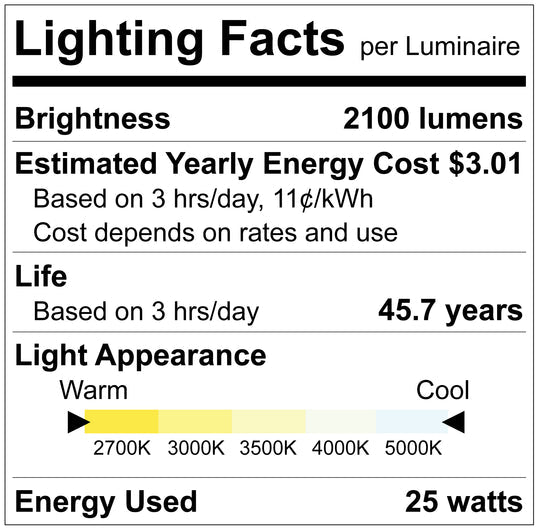

Built to meet commercial electrical standards, this fixture includes a universal voltage input (120-277V) and an advanced dual-dimming driver. This dual architecture guarantees flicker-free, smooth dimming down to low levels when paired with residential Triac/ELV wall dimmers or commercial-grade 0-10V automated control panels. Operating with a power factor of 0.9, the fixture carries an estimated operational energy cost of just $3.01 per year. It features a robust thermal rating built to handle extreme operating parameters from -4ºF to 113ºF across a long 50,000-hour rated lifetime.

Key Features:

• Adjustable Zoomable Optics: Effortlessly shift from a sharp 24º spotlight for focal objects to a wide-reaching 50º flood light for ambient coverage.

• 5-CCT Color Tuning Switch: On-site selectable toggle allows rapid switching between ultra-warm 2700K, crisp 4000K, or clean 5000K daylight settings.

• Dual Dimming & Universal Driver: Ready for immediate deployment across residential Triac setups and commercial 0-10V control networks from 120V to 277V.

• High-Efficiency 2100 Lumen Output: High-output LED layout matches the illumination requirements of taller ceilings and large commercial open areas.

• Seamless Trimless Architecture: Integrates directly into clean, borderless mud-in plaster ceilings while maintaining full compatibility with modular Push N' Lock trims.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 793888480841

• Master Case Barcode Identifier: 10793888480848

• Master Carton Outer Volume Dimensions: 18.70" Length × 17.32" Width × 13.58" Height

• Master Carton Wholesale Quantity: 24 Units per Case
