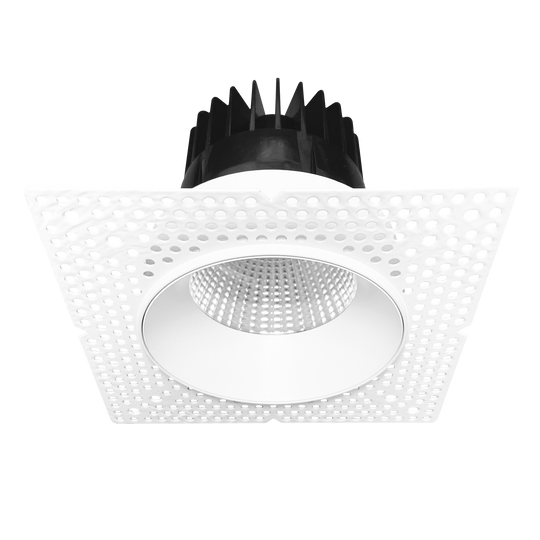

4 Inch Regressed Push N'Lock Trimless LED Downlight | 2K Lm | 120/277V | CCT Selectable | Chatam Collection | Luxrite LR25460/65

Achieve immaculate, high-output directional lighting with the architectural 4" Regressed Trimless Push N' Lock LED Spotlight Series. Comprising item numbers LR25460 (Ordering Code: LED/TLMD4HO/5CCT/RD/WT/UNV/DD) and LR25465 (Ordering Code: LED/TLMD4HO/5CCT/RD/WT/UNV/DD/WFL), these deep-regressed recessed downlights deliver a clean, round regressed trimless design profile. Finished in a premium fine matte white (WT), each luminaire utilizes a specialized plaster-in mud frame to blend entirely flush into drywall ceilings, creating a completely borderless finish. By recessing the lighting engine deeper into the housing ceiling plane (4.56" depth), this series provides an efficient visual glare cutoff, enhancing overall eye comfort across spacious floor plans.

The defining difference within this high-performance series lies in their optical beam engineering, allowing designers to select the precise light distribution for their space:

• LR25460 (38º Narrow Flood): Designed for high-impact task lighting, artwork accentuation, or clean pools of downlight in high-ceiling environments.

• LR25465 (60º Wide Flood): Engineered for broad, uniform ambient overlapping light paths across general residential and commercial spaces.

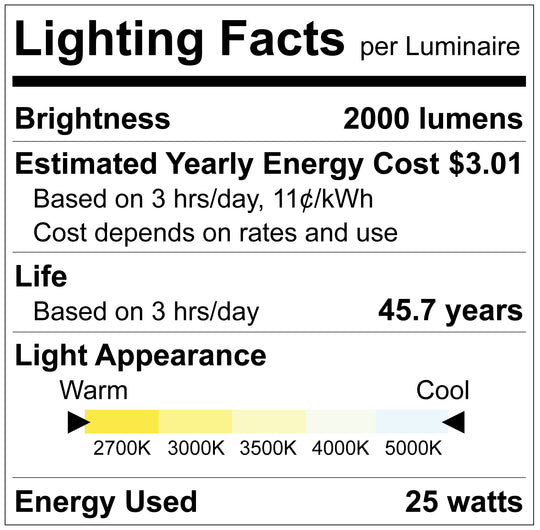

Both variations feature an integrated 5-CCT selectable toggle switch giving installers the immediate ability to choose from five white light settings (2700K, 3000K, 3500K, 4000K, and 5000K) on-site. Running on a robust 25-watt engine, each downlight fires a powerful 2000 lumens of crisp light with a high efficacy rating of 80 lumens per watt. A color rendering profile of 90 CRI ensures exceptional color definition, rendering interior finishes and textures accurately.

Universal Electrical Integration & Dual Dimming Control: Engineered to streamline installation across complex commercial floor plans and custom residential layouts, these architectural fixtures feature a internal universal voltage (UNV) driver working steadily across 120V to 277V frameworks. The built-in dual-dimming engine guarantees smooth, flicker-free dimming range performance on traditional residential Triac/ELV wall dimmers as well as commercial 0-10V dimming networks. Operating with a 0.9 power factor, the yearly energy run cost remains at an economical $3.01 per unit. Built for long-term endurance, the internal electronic components are certified to withstand demanding climates from -4ºF up to 113ºF across an exceptional 50,000-hour rated lifetime.

Key Features:

• Tailored Precision Beam Optics: Choose between a crisp 38º narrow flood (LR25460) or a balanced 60º wide flood beam (LR25465) to match task or ambient needs.

• Deep Regressed Anti-Glare Substructure: Recessed 4.56" internal housing provides a sharp shielding angle for optimal anti-glare visual comfort.

• 5-CCT Field Selectable Switch: Swap seamlessly between warm 2700K hospitality tones, balanced 3500K neutral light, or clear 5000K daylight settings on-site.

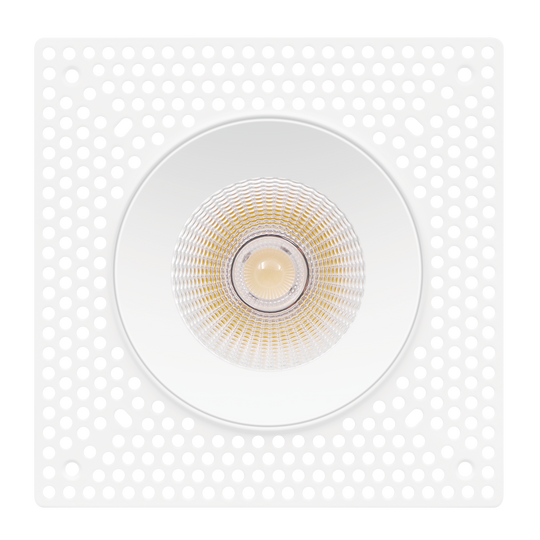

• Seamless Trimless Mud-In Frame: Integrates cleanly with the round Push N' Lock mounting system for a borderless, high-end look in drywall finishes.

• Dual Dimming & Universal Driver: Ready for direct operation across residential Triac/ELV lines and commercial 0-10V control networks from 120V to 277V.

Technical Specification Table

Logistics & Packaging Specifications
