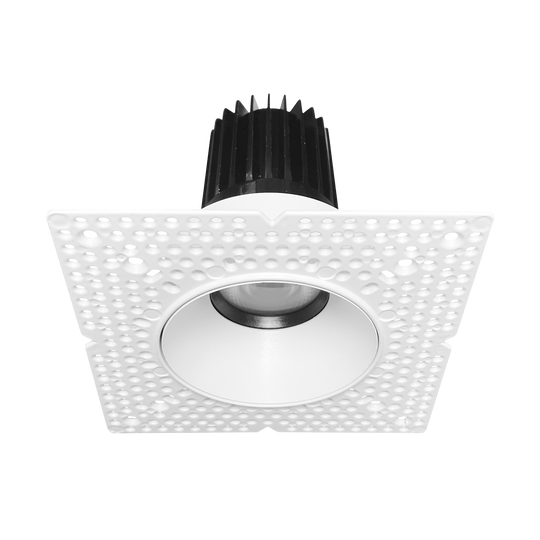

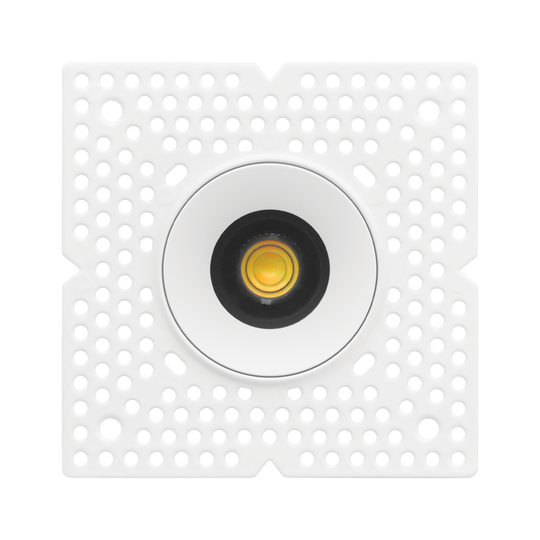

3 Inch Regressed Push N'Lock Zoomable Trimless LED Downlight | 1,100Lm | 120/277V | CCT Selectable | Chatam Collection | Luxrite LR25453

Experience maximum flexibility in high-end architectural lighting with the 3" Regressed Trimless Push N' Lock Zoomable Spotlight. Identified by product code LR25453 (Ordering Code: LED/TLMD3/5CCT/RD/WT/UNV/DD/ZM), this complete, high-performance recessed luminaire brings professional-grade beam tailoring and field-adjustable color temperatures together into a single, sleek system. Designed with an ultra-clean white finish (WT), it installs as a seamless, borderless mud-in fixture that blends into standard ceilings, while its deep-set regressed optics provide exceptional glare control.

The standout feature of this advanced downlight is its adjustable zoom lens, which allows installers or property owners to smoothly dial the beam angle from a tight 20º accent spot to a wide 50º flood light using a simple mechanical adjustment. Paired with a 5-CCT selectable toggle switch (2700K, 3000K, 3500K, 4000K, and 5000K), it lets you easily tune the color temperature on-site to complement specific surface finishes, interior styles, or time-of-day preferences. Powered by an efficient 15-watt LED driver, the fixture outputs a bright 1100 lumens with a high color rendering index of 90 CRI, guaranteeing deep color accuracy and lifelike vibrant skin tones, textiles, and artwork.

Universal Electrical Integration & Commercial Grade Control:

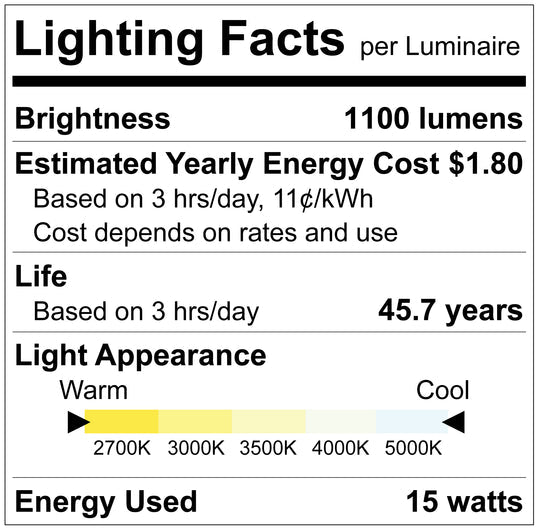

Equipped with a commercial-ready universal voltage input (120-277V) and an advanced dual-dimming driver, this lighting system interfaces seamlessly with standard residential Triac/ELV wall dimmers as well as industrial 0-10V control lines panels. Operating at a 350mA input current with a high power factor of 0.9, it consumes an estimated, ultra-low $1.80 per year in electricity while offering a rated lifetime of 50,000 hours. Its durable internal chassis handles wide operating temperatures ranging from -4ºF up to 113ºF.

Key Features:

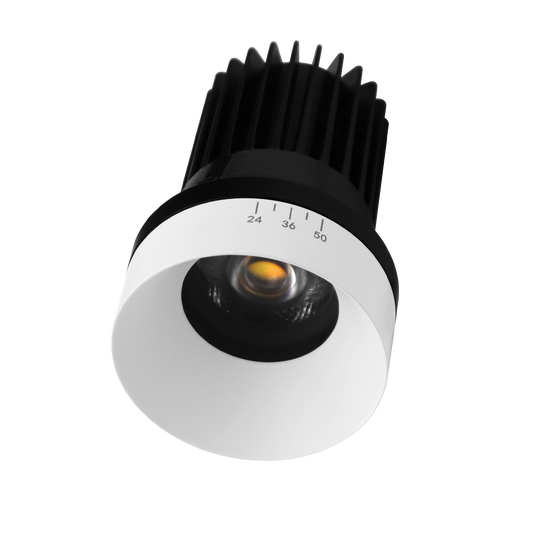

• Mechanical Zoomable Optics: Smoothly transition from a concentrated 20º focal accent beam to a broad 50º ambient room flood light.

• 5-CCT Field Selectable Switch: Choose between warm 2700K ambiance, crisp 4000K work light, or 5000K daylight temperatures right on the job site.

• Dual Dimming & Universal Driver: Built-in compatibility with both Triac and 0-10V dimming configurations across a flexible 120V to 277V baseline.

• High-Accuracy 90 CRI Output: Delivers outstanding color fidelity and spatial rendering across its entire 1100-lumen output window.

• Borderless Mud-In Framework: Works perfectly with interchangeable Push N' Lock trims, keeping a clean minimalist ceiling profile.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 793888480742

• Master Case Barcode Identifier: 10793888480749

• Master Carton Outer Volume Dimensions: 20.66" Length × 17.32" Width × 14.17" Height

• Master Carton Wholesale Quantity: 24 Units per Case
