3 Inch Floating Push N'Lock Gimbal Trimless LED Downlight | 900Lm | 120/277V | CCT Selectable | Chatam Collection | Luxrite LR25452

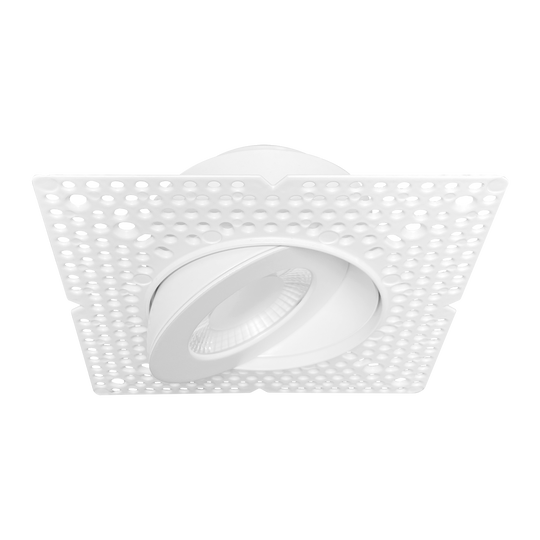

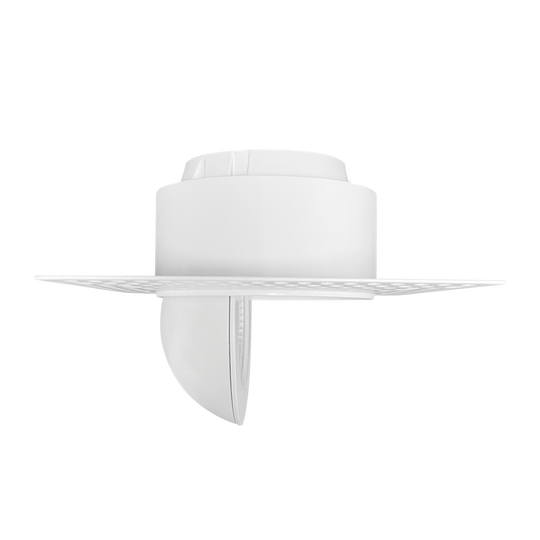

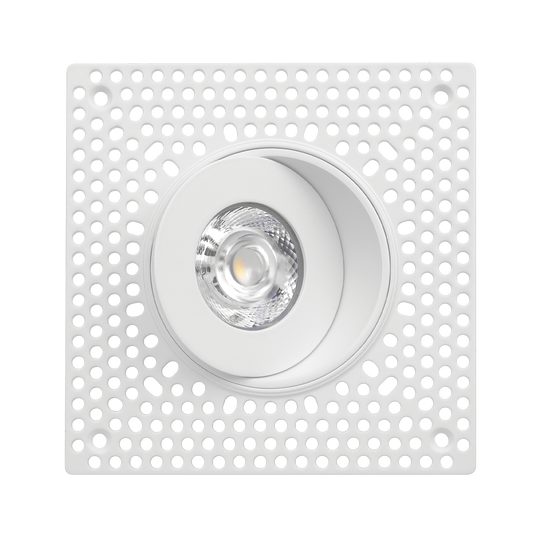

Achieve clean architectural lines and highly flexible directional lighting with the 3" Floating Gimbal Push N' Lock Trimless Spotlight. Identified by product code LR25452 (Ordering Code: LED/TLMD3/FGB/5CCT/RD/WT/D), this low-profile recessed fixture features an integrated adjustable floating gimbal design. Finished in a crisp matte white (WT), its modern mud-in plaster frame blends completely into drywall ceilings for a seamless, borderless finish. This allows you to pivot and tilt the inner light engine to precisely highlight artwork, focal walls, or display areas without breaking the flat ceiling line.

This downlight features an onboard 5-CCT selectable toggle switch, allowing users or installers to easily cycle between five distinct color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K) right on-site. Equipped with specialized optical lenses, it throws a tailored 38º beam angle perfect for focused task or accent lighting. Powered by an efficient 12-watt engine, it delivers 900 lumens of brightness at a luminous efficacy of 75 lumens per watt. A color rendering index of 90 CRI ensures high-fidelity color accuracy, making it ideal for high-end residential interiors, luxury retail, galleries, and corporate settings.

Smooth Residential Dimming & Compact Engineering:

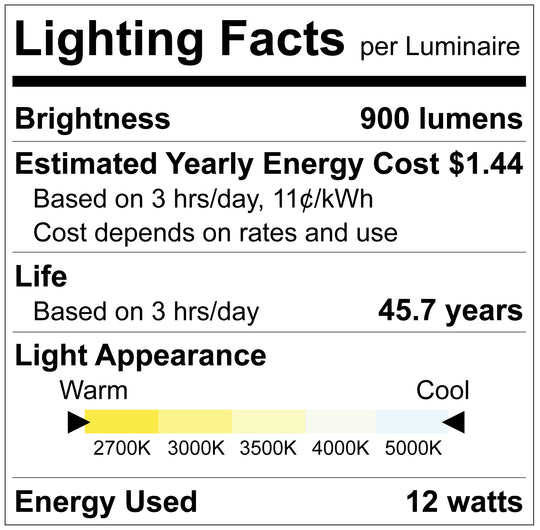

Designed for straightforward residential and commercial integration, the light operates on standard 120V electrical systems with an input current of 280mA. It offers smooth, flicker-free dimming down to low levels via traditional Triac dimming networks. With a 0.9 power factor, the fixture remains economical to operate, drawing an estimated energy cost of just $1.44 per year. Built to last in demanding spaces, it features a rugged thermal design rated to operate from -4ºF up to 113ºF across an exceptional 50,000-hour rated lifetime.

Key Features:

• Adjustable Floating Gimbal: Smoothly tilts and adjusts to provide precise directional lighting on sloped ceilings, architectural features, and artwork.

• 5-CCT Field Selectable Switch: Swap easily between warm 2700K, neutral 3500K, or clean 5000K daylight settings during installation to match any room layout.

• Seamless Trimless Mud-In Ring: Pairs perfectly with the Push N' Lock framing system to deliver a high-end, completely borderless ceiling aesthetic.

• Flicker-Free Triac Dimming: Compatible with standard 120V forward-phase/Triac dimmers for smooth, customizable ambiance control.

• High-Fidelity 90 CRI Light: Reveals true, vibrant color profiles across fabrics, materials, and painted surfaces.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 793888427648

• Master Case Barcode Identifier: 10793888427645

• Master Carton Outer Volume Dimensions: 17.32" Length × 12.00" Width × 14.76" Height

• Master Carton Wholesale Quantity: 24 Units per Case
