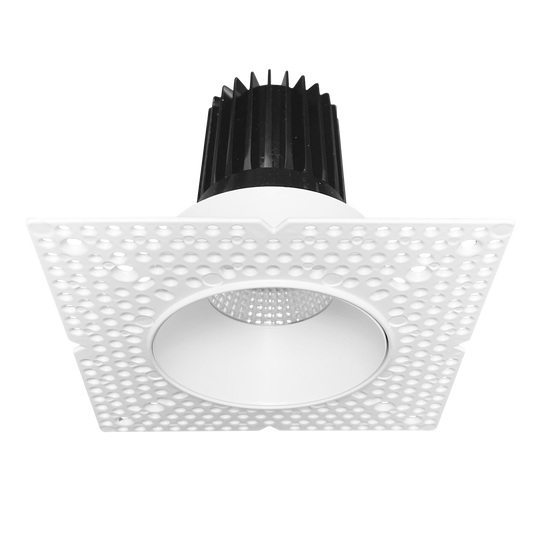

3 Inch Regressed Push N'Lock Trimless LED Downlight | 1,100Lm | 120/277V | CCT Selectable | Chatam Collection | Luxrite LR25450/55

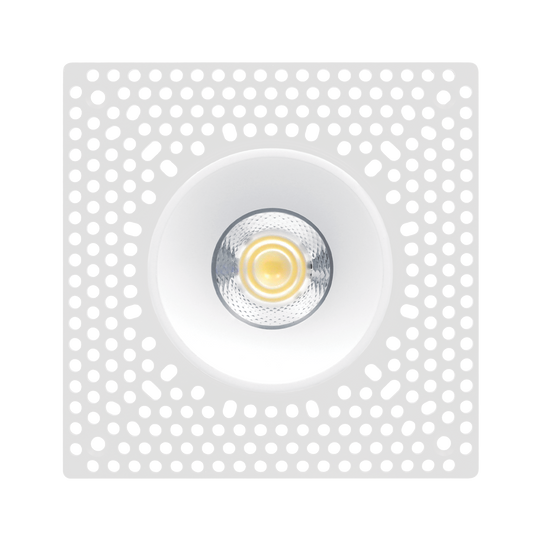

Elevate premium architectural interiors with the 3" Regressed Trimless Push N' Lock Spotlight Series. Consisting of two distinct high-performance optical layouts—the 38° Focused Flood (Product Code: LR25450) and the 60° Wide Flood (Product Code: LR25455)—this commercial-grade recessed luminaire series integrates seamlessly into drywall ceilings. Utilizing an innovative Push N' Lock mechanical framing setup, the unit locks securely behind the sheetrock plane prior to mudding. This achieves a clean, borderless, flush square profile with a 3-inch aperture. The deeply regressed light engine significantly controls glare by keeping the lens shielded out of direct sightlines, making it a premier specification for upscale commercial offices, luxury custom residential spaces, high-end retail galleries, and hospitality venues.

This trimless luminaire series features a high-utility 5-CCT field selectable configuration. A built-in slider switch gives field technicians the power to toggle instantly between five distinct color profiles—2700K, 3000K, 3500K, 4000K, or 5000K—on the job site, easily adapting to changes in decorative materials, paint finishes, or tenant layout demands. Drawing 15 Watts of active power, each module punches out a clean 1100 lumens of illumination with an operational efficacy of 73 lumens per watt. Backed by an advanced CRI 90 standard validation, this series brings out the best in indoor colors, architectural textures, and premium design finishes with vibrant, lifelike accuracy.

Universal Electrical Engineering & Precision Distribution Controls:

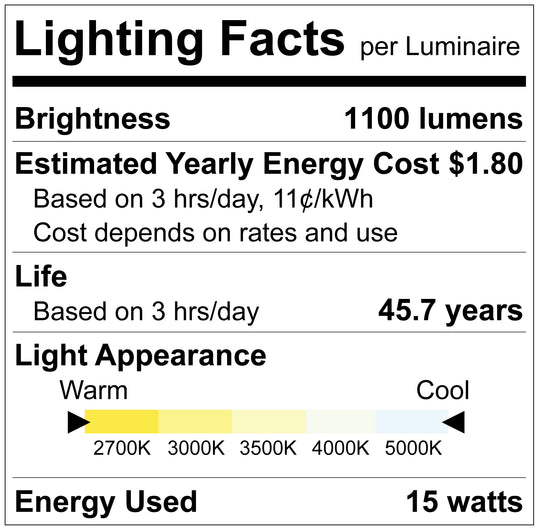

Engineered to streamline multi-zone facility planning, both models are equipped with an advanced Universal Voltage internal driver (120-277V AC at 60Hz) paired with Dual Dimming technology. This versatile electrical engine automatically handles both standard residential line-voltage TRIAC phase-cut dimmers and commercial 0-10V low-voltage automation controls, ensuring smooth, flicker-free dimming transitions. Sized for a standard 3.38-inch ceiling cutout, the high-impact housings handle demanding thermal shifts ranging from -4°F up to 113°F. They carry a 50,000-hour rated operating lifespan and function with an estimated annual utility cost of just $1.80 per unit.

• LR25450 (38° Focused Flood): Projects a controlled, directional spotlight beam that is ideal for accentuating fine art pieces, mannequins, or focal display tables.

• LR25455 (60° Wide Flood): Emits a broader downlight wash that is perfect for uniform corridor general ambient layouts and high-traffic open common areas.

Key Features:

• Push N' Lock Mud-In Trimless Base: Simplifies installation by clipping directly behind drywall panels, mudding in flush to create a trimless, borderless ceiling.

• Universal 120-277V Voltage Core: Installs effortlessly across standard residential lines or high-voltage commercial branch power networks.

• TRIAC / 0-10V Dual Dimming: Combines two control methods into one driver to match any manual wall dimmer or automated smart network layout.

• 5-CCT Field Selectable Switch: Provides instant toggle adjustments between 2700K, 3000K, 3500K, 4000K, and 5000K settings to optimize spaces instantly.

• Vibrant High-Fidelity CRI 90: Ensures rich color rendering, making it an ideal choice for luxury properties and high-end retail environments.

Technical Specification Table

Logistics & Packaging Specifications

• LR25450 UPC Barcode: 793888427440

• LR25450 Master Case Barcode: 10793888427447

• LR25455 UPC Barcode: 793888468948

• LR25455 Master Case Barcode: 10793888468945

• Master Carton Outer Volume Dimensions: 20.66" Length × 17.32" Width × 14.17" Height

• Standard Wholesale Package Quantity: 24 Units per Master Case
