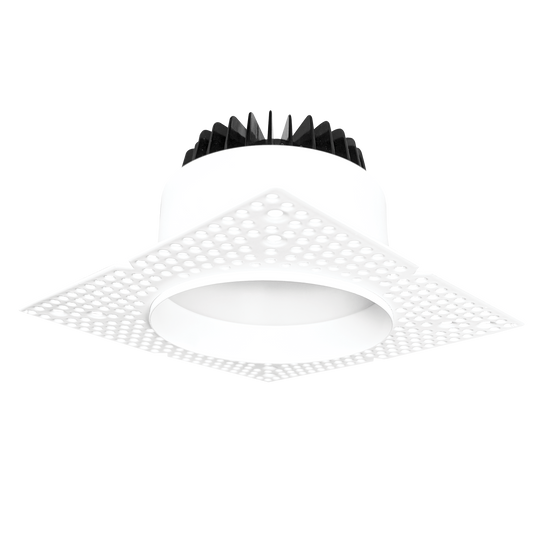

4 Inch Regressed Push N'Lock HO Trimless LED Downlight | 1,950Lm | 120/277V | CCT Selectable | Chatam Collection | Luxrite LR25438

Deliver powerful, widespread ambient lighting with minimal visual glare using the 4" Regressed Trimless Push N' Lock Spotlight. Identified by product code LR25438 (Ordering Code: LED/TLMD4HO/RGS/5CCT/RD/WT/UNV/DD/FL), this high-output architectural downlight features a clean, round regressed trimless layout. Finished in a fine matte white (WT), its specialized plaster-in mud frame allows for a completely borderless installation into drywall ceilings. By deeply positioning the lighting engine back within the ceiling plane, this downlight efficiently cuts off direct side-glare, providing premium visual comfort across spacious rooms without interrupting flat, high-end ceiling architecture.

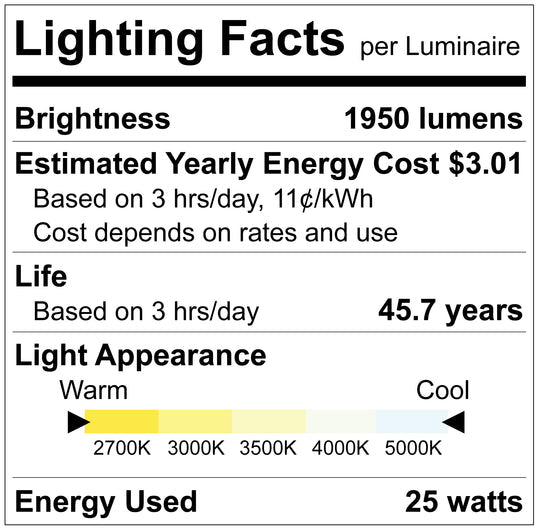

This fixture comes equipped with an integrated 5-CCT selectable toggle switch, giving installers the freedom to select or change between five distinct color profiles (2700K, 3000K, 3500K, 4000K, and 5000K) right on the job site. Designed with premium wide-diffusion optics, it projects an ultra-wide 110º flood beam angle optimized for smooth, uniform illumination in high ceilings, broad hallways, open office spaces, and commercial showrooms. Driven by a robust 25-watt high-output configuration, it outputs 1950 lumens of clean light with a luminous efficacy of 78 lumens per watt. A color rendering performance index of 90 CRI ensures excellent color clarity and vibrancy.

Universal Electrical Engineering & Cross-Platform Control:

Tailored to fit complex commercial blueprints and residential projects alike, this architectural fixture includes a universal voltage (UNV) driver working seamlessly across 120V to 277V systems. Its built-in dual-dimming engine guarantees smooth, flicker-free control on both traditional residential Triac/ELV systems and commercial 0-10V dimming networks. Operating with a 0.9 power factor, its estimated yearly power cost rests at an economical $3.01. The robust internal components are engineered to withstand rigorous daily operation, featuring a rated temperature tolerance from -4ºF up to 113ºF and an outstanding 50,000-hour operational lifetime.

Key Features:

• Deep Regressed Glare Cutoff: Positions the light source deep within the housing to maximize visual comfort and minimize direct eye glare.

• 5-CCT Field Selectable Switch: Choose between warm 2700K hospitality tones, neutral 3500K, or clean 5000K daylight settings on-site with a simple manual toggle.

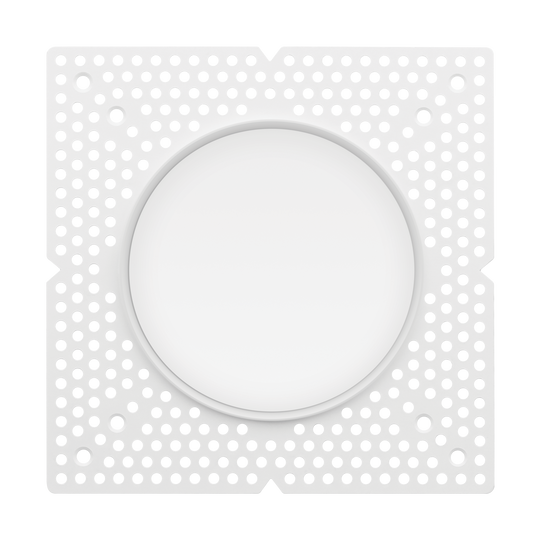

• Seamless Trimless Mud-In Frame: Mounts perfectly flush into drywall ceilings with the Push N' Lock system for a premium, borderless architectural look.

• Dual Dimming & Universal Voltage: Offers plug-and-play capability across 120V–277V systems with dual compatibility for Triac and 0-10V control networks.

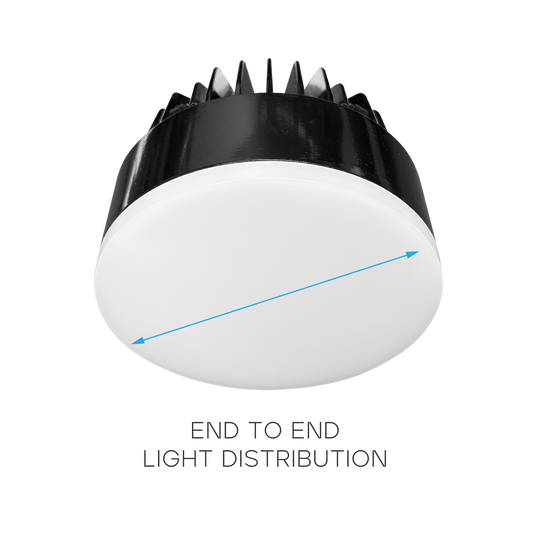

• 110º Broad Flood Lighting: Covers wide surface areas with a smooth, balanced wash of light ideal for open-concept layouts and tall ceilings.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 732388934362

• Master Case Barcode Identifier: 10732388934369

• Master Carton Outer Volume Dimensions: 18.70" Length × 17.32" Width × 13.58" Height

• Master Carton Wholesale Quantity: 24 Units per Case
