3 Inch Regressed Push N'Lock Trimless LED Downlight | 950Lm | 120/277V | CCT Selectable | Chatam Collection | Luxrite LR25436

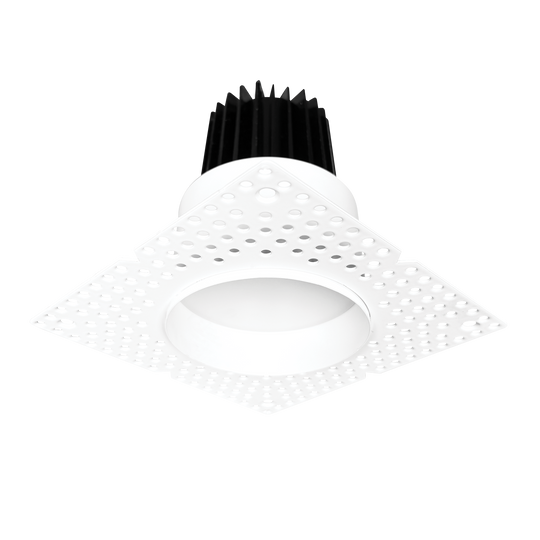

Achieve beautifully soft, wide-angle ambient illumination and clean architectural lines with the 3" Regressed Trimless Push N' Lock Spotlight. Identified by product code LR25436 (Ordering Code: LED/TLMD3/RGS/5CCT/RD/WT/UNV/DD/FL), this deep-regressed recessed luminaire features a modern round regressed trimless layout. Finished in a fine matte white (WT), its specialized mud-in plaster frame blends completely into drywall ceilings for a seamless, borderless finish. The deeply recessed positioning of the light source significantly reduces direct visual glare, providing smooth, high-comfort general lighting without breaking the flat ceiling plane.

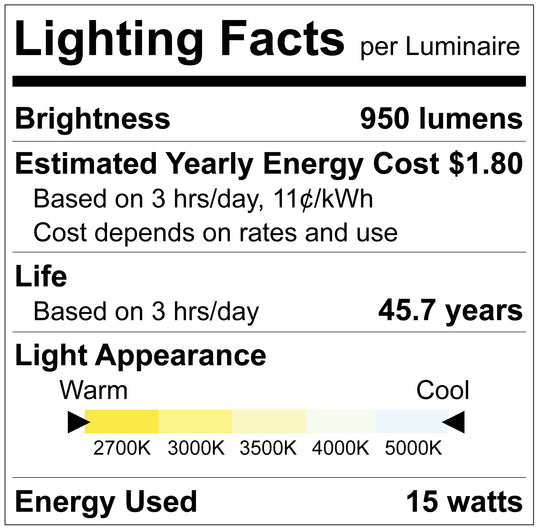

This downlight features an onboard 5-CCT selectable toggle switch, allowing users or installers to easily cycle between five distinct white color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K) right on-site to match any interior design scheme. Outfitted with precision-engineered wide diffusion optics, it throws a generous 110º wide flood beam angle designed for uniform coverage in hallways, living rooms, corporate office suites, and low-to-mid height commercial settings. Powered by an efficient 15-watt engine, it delivers 950 lumens of brightness at a luminous efficacy of 63 lumens per watt. A color rendering index of 90 CRI ensures vibrant, high-fidelity color accuracy across everyday environments.

Universal Electrical Performance & Commercial Grade Control:

Designed for flexible residential and commercial integration, this architectural fixture includes a universal voltage (UNV) driver compatible with an advanced dual-dimming engine. The system operates flawlessly with residential Triac/ELV wall dimmers as well as industrial 0-10V dimming networks across a flexible 120V to 277V baseline. Operating with a 0.9 power factor, the fixture remains economical to operate, drawing an estimated energy cost of just $1.80 per year. Built to last in demanding spaces, it features a rugged thermal design rated to operate from -4ºF up to 113ºF across an exceptional 50,000-hour rated lifetime.

Key Features:

• Deep Regressed Glare Control: Deeply set lighting source maximizes visual comfort and minimizes harsh side-glare for premium interior spacing.

• 5-CCT Field Selectable Switch: Swap easily between warm 2700K cozy ambiance, neutral 3500K, or clean 5000K daylight settings during installation to match any room layout.

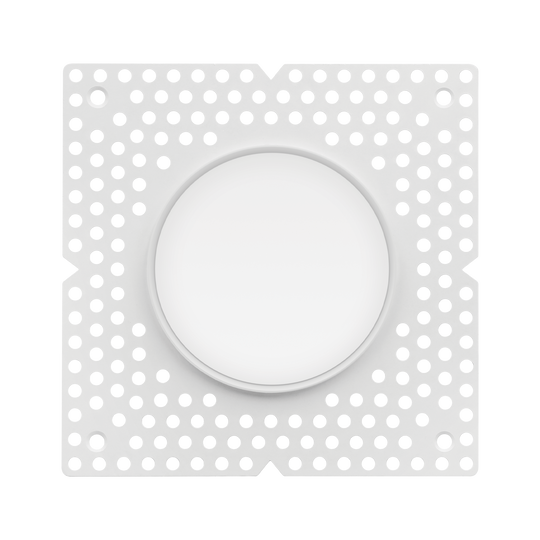

• Seamless Trimless Mud-In Ring: Pairs perfectly with the Push N' Lock framing system to deliver a high-end, completely borderless ceiling aesthetic.

• Dual Dimming & Universal Driver: Ready for immediate deployment across residential Triac setups and commercial 0-10V control networks from 120V to 277V.

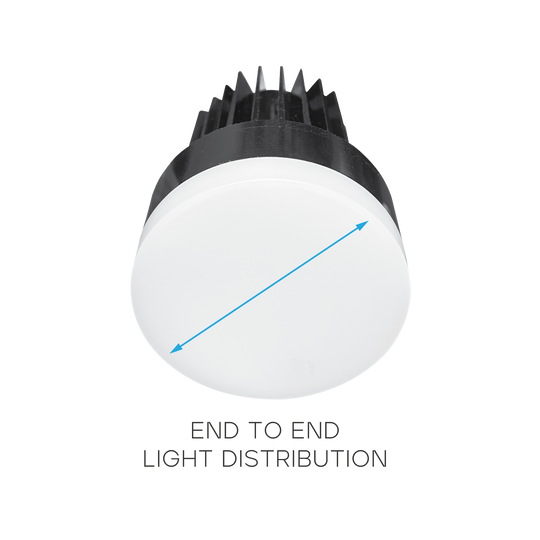

• 110º Wide Flood Beam Angle: Projects wide, smooth light distribution to illuminate broad surface areas uniformly.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 732388934164

• Master Case Barcode Identifier: 10732388934161

• Master Carton Outer Volume Dimensions: 17.12" Length × 17.32" Width × 16.34" Height

• Master Carton Wholesale Quantity: 24 Units per Case
