3 Inch Regressed Push N'Lock Gimbal Trimless LED Downlight | 1,100Lm | 120/277V | CCT Selectable | Chatam Collection | Luxrite LR25433

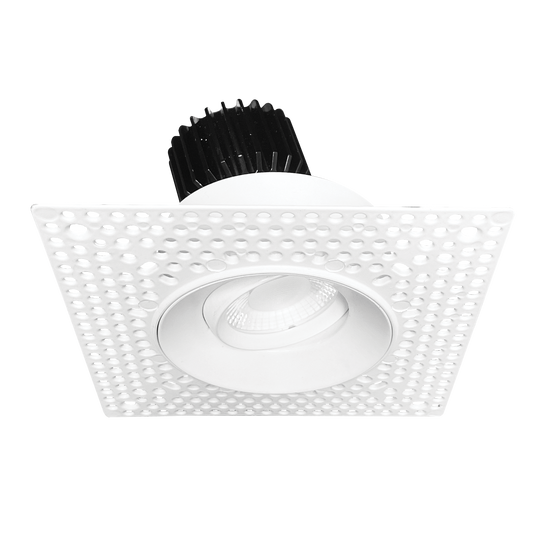

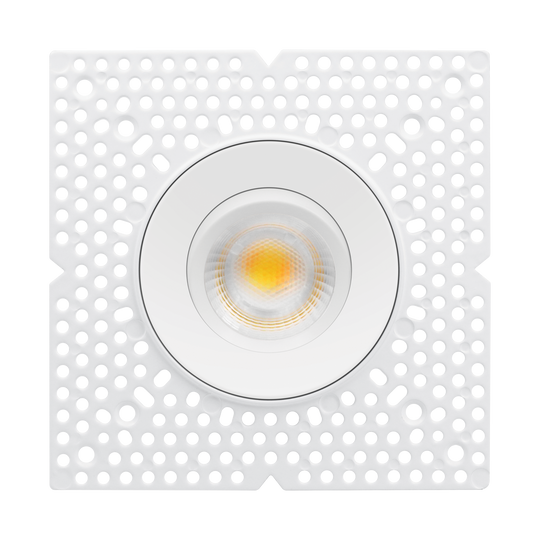

Achieve flexible directional targeting and clean architectural styling with the 3" Gimbal Push N' Lock Trimless Spotlight. Identified by product code LR25433 (Ordering Code: LED/TLMD3/GB/5CCT/RD/WT/UNV/DD/FL), this high-performance recessed luminaire features a fully adjustable floating gimbal core. Finished in a pristine matte white (WT), its modern plaster-in mud frame creates a completely borderless transition into drywall ceilings. This specialized design allows the inner light assembly to tilt effortlessly, delivering tailored accent lighting or sloped-ceiling illumination without breaking the minimalist, flush profile of your ceiling line.

This downlight features an integrated 5-CCT selectable toggle switch, giving you the ability to select from five white color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K) right on-site to perfectly coordinate with your surface materials or design choices. Outfitted with a precision engineered optical lens, it projects a balanced 38º flood beam angle optimized for high-end retail displays, gallery feature walls, residential living areas, and task lighting applications. Driven by a highly efficient 12-watt LED engine, the fixture delivers a bright 1100 lumens of output at an outstanding efficacy of 91 lumens per watt. A high color rendering performance index of 90 CRI guarantees that your textures, artwork, and interior elements are rendered with life-like precision and color accuracy.

Universal System Control & High-Efficiency Integration:

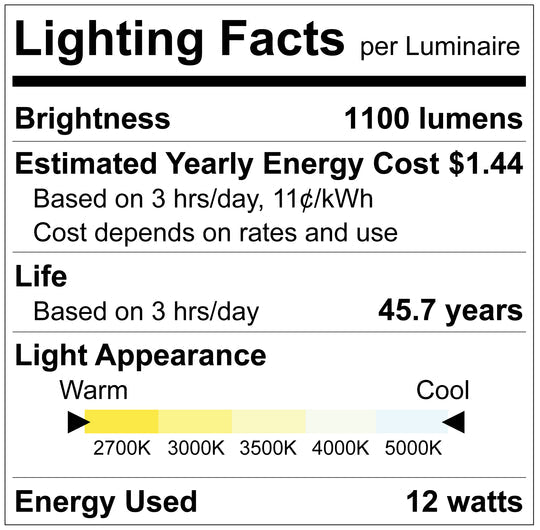

Engineered to streamline installation across diverse electrical landscapes, this architectural fixture includes a universal voltage (UNV) compatible driver layout with an advanced dual-dimming engine. The system operates smoothly alongside standard residential Triac/ELV wall dimmers as well as industrial 0-10V dimming panels across a 120V to 277V baseline. Operating at a 270mA input current with a high power factor of 0.9, the fixture carries an exceptionally low estimated power consumption cost of just $1.44 per year. It is built to endure demanding environments, carrying a thermal operational layout rated from -4ºF to 113ºF across a long 50,000-hour rated lifetime.

Key Features:

• Adjustable Floating Gimbal Core: Provides effortless directional aiming and smooth pivoting to accommodate sloped ceilings, accent walls, and artwork.

• 5-CCT Field Selectable Switch: Choose between warm 2700K hospitality ambiance, crisp 4000K work lighting, or clean 5000K daylight settings on the job site.

• Dual Dimming & Universal Driver: Out-of-the-box compatibility with residential Triac setups and commercial 0-10V control lines.

• High Efficacy 1100 Lumen Output: Pushes out 91 lumens per watt using only 12 watts of energy for an eco-friendly architectural design.

• Borderless Mud-In Framework: Works seamlessly with the Push N' Lock structural system to maintain a clean, high-end minimalist trimless ceiling aesthetic.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 732388922468

• Master Case Barcode Identifier: 10732388922465

• Master Carton Outer Volume Dimensions: 16.92" Length × 16.92" Width × 14.17" Height

• Master Carton Wholesale Quantity: 24 Units per Case
