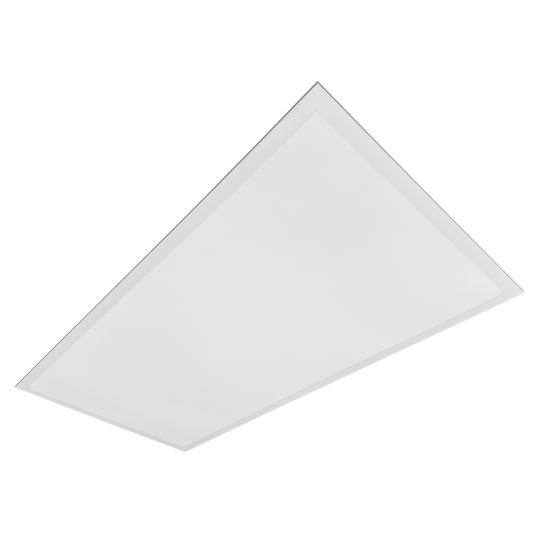

2x4 LED HO Backlit Flat Panel | 8.500Lm Max | 120/277V | CCT Selectable | Austin Collection | Luxrite LR24294

The LR24294 2x4 High Output Backlit LED Panel is engineered for maximum performance, delivering powerful illumination and unmatched flexibility for demanding commercial environments. Designed with high output capability, this panel produces up to 8500 lumens, making it ideal for large spaces such as offices, warehouses, retail stores, schools, and healthcare facilities.

Featuring selectable wattage (50W, 60W, 70W) and five adjustable color temperatures (3000K, 3500K, 4000K, 5000K, and 6500K), this LED panel allows full customization of brightness and ambiance. Whether you need warm lighting for comfort or cool daylight tones for productivity, the LR24294 adapts to your space with ease.

The advanced backlit LED design ensures smooth, uniform light distribution across a wide 120° beam angle, eliminating shadows and hotspots. With a high 125 lm/W efficacy, this fixture provides exceptional brightness while maintaining energy efficiency.

Equipped with 0–10V dimming capability, the panel integrates seamlessly with lighting control systems, enabling precise brightness adjustment and further energy savings. Its slim, low-profile design (1.46") and clean white finish allow it to fit perfectly into standard ceiling grids while maintaining a modern, professional appearance.

With a 50,000-hour lifespan and 120–277V universal voltage compatibility, the LR24294 is built for long-term reliability, reduced maintenance, and cost-effective operation in high-demand applications.

Key Features

• High output performance: up to 8500 lumens

• Selectable wattage: 50W / 60W / 70W

• 5 CCT options: 3000K / 3500K / 4000K / 5000K / 6500K

• Backlit LED technology for uniform illumination

• 0–10V dimmable for advanced lighting control

• Wide 120° beam angle for full coverage

• High efficacy: 125 lumens per watt

• Long lifespan: 50,000 hours

• Universal voltage: 120–277V

• Ideal for commercial, industrial, and large-scale lighting applications

Technical Specifications

General Information

• Item Number: LR24294

• Description: LED2X4BPNL/HO/3WO/5CCT/D

• Product Type: 2x4 High Output Backlit LED Panel

• Shape: Backlit Panel

• Size: 2' x 4'

Dimensions

• Length: 47.72"

• Width: 23.74"

• Depth: 1.46"

• Finish: White

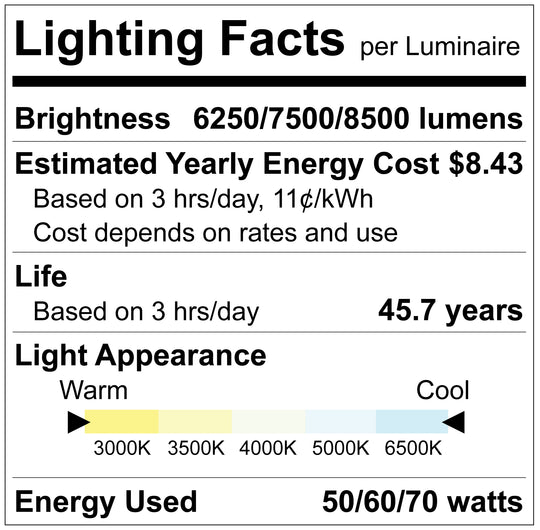

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 3000K / 3500K / 4000K / 5000K / 6500K

• Lumen Output: 6250 / 7500 / 8500 lm

• Beam Angle: 120°

• CRI: 80

Electrical

• Wattage: 50W / 60W / 70W

• Input Voltage: 120–277V

• Dimming: 0–10V

• Power Factor: 0.9

• Input Current: 0.55A

• Frequency: 50/60Hz

• Lumen Efficacy: 125 lm/W

• Rated Lifetime: 50,000 hours

• Estimated Yearly Energy Cost: $8.43

Packaging Information

• UPC Barcode: 793888458642

• Master Barcode: 10793888458649

• Case Size: 4 units

Master Carton Dimensions

• Length: 49.09"

• Width: 25.39"

• Height: 6.37"
