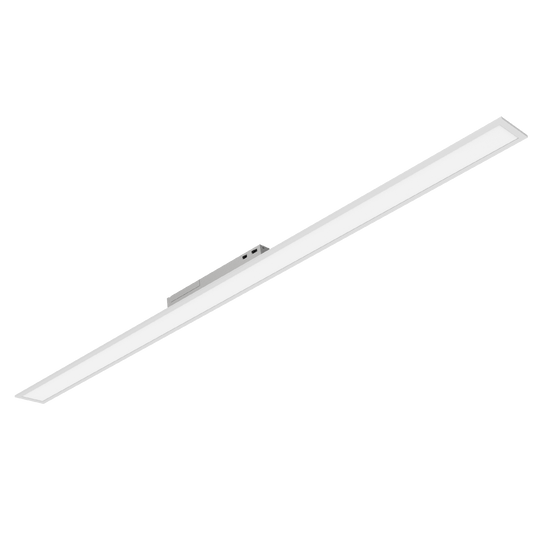

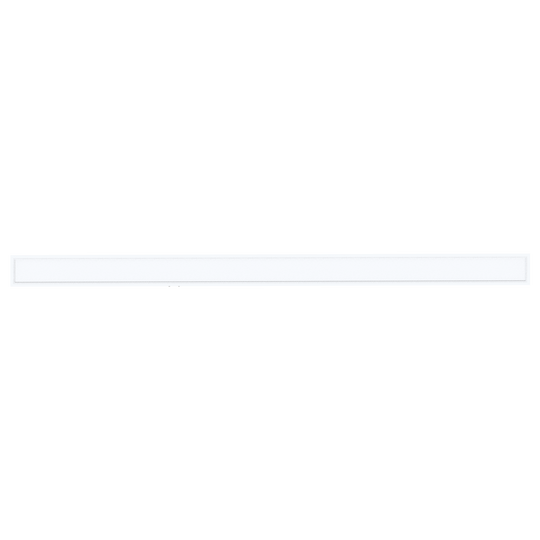

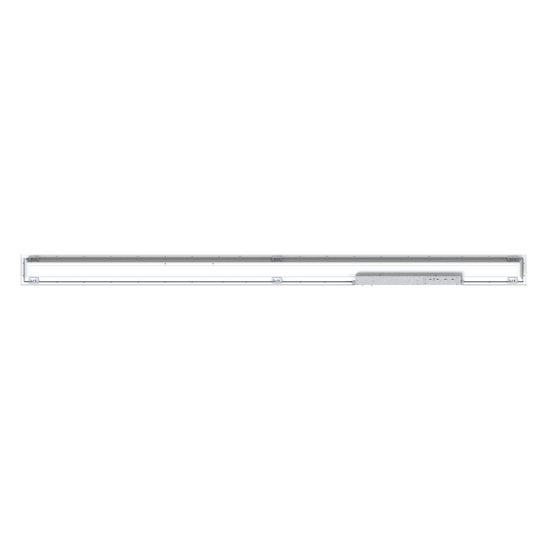

6" X 8' LED Recessed Backlit Flat Panel | 8.800Lm Max | 120/277V | CCT Selectable | Montauk Collection | Luxrite LR24285

The LR24285 6" x 8' Recessed Backlit LED Panel is a premium lighting solution engineered for maximum versatility, energy efficiency, and modern aesthetics. Featuring selectable wattage and color temperature (CCT), this panel allows you to control brightness and ambiance to suit any environment, making it ideal for commercial, office, retail, educational, or residential applications.

This high-performance panel offers three wattage settings (37W, 57W, 80W) and four CCT options (3000K, 3500K, 4000K, 5000K), delivering a lumen range of 4400–8800 lumens. Its backlit LED design ensures even illumination across a 110° beam angle, eliminating hotspots and providing comfortable, glare-free lighting.

Equipped with 0–10V dimming capability, the LR24285 integrates seamlessly with modern lighting control systems, optimizing energy efficiency while offering fully adjustable brightness levels. Finished in white and designed with a low-profile, it fits perfectly into standard ceiling grids, combining functionality with a sleek, professional appearance. With a 50,000-hour rated lifespan, 110 lm/W efficacy, and universal 120–277V compatibility, this panel is built for long-term reliability and cost-effective operation.

Key Features

• Selectable wattage: 37W / 57W / 80W

• 4 CCT options: 3000K / 3500K / 4000K / 5000K

• Lumen output: 4400 / 6600 / 8800 lumens

• Backlit LED technology for uniform illumination

• 0–10V dimmable for lighting control integration

• Wide 110° beam angle for consistent coverage

• High efficacy: 110 lm/W

• Long lifespan: 50,000 hours

• Universal voltage: 120–277V

• Ideal for commercial, office, retail, and residential applications

Technical Specifications

General Information

• Item Number: LR24285

• Description: LED6"X8BPNL/3WO/4CCT/D

• Product Type: Recessed Backlit LED Panel

• Shape: 6" Backlit Panel

• Size: 6" x 8'

Dimensions

• Length: 95.78"

• Width: 5.83"

• Depth: 1.96"

• Finish: White

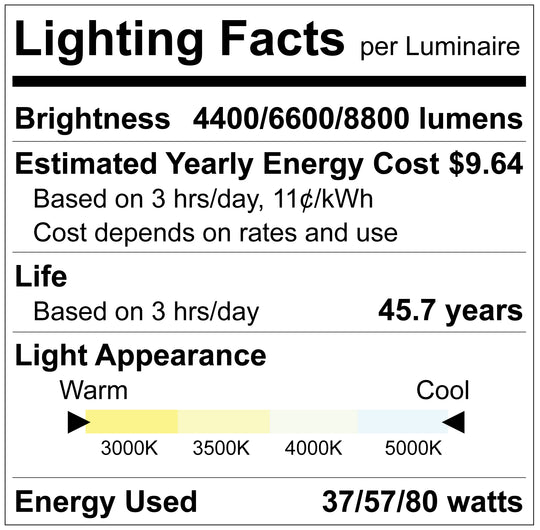

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 3000K / 3500K / 4000K / 5000K

• Lumen Output: 4400 / 6600 / 8800 lm

• Beam Angle: 110°

• CRI: 80

Electrical

• Wattage: 37W / 57W / 80W

• Input Voltage: 120–277V

• Dimming: 0–10V

• Power Factor: 0.9

• Input Current: 740mA

• Frequency: 50/60Hz

• Lumen Efficacy: 110 lm/W

• Rated Lifetime: 50,000 hours

• Estimated Yearly Energy Cost: $9.64

Operating Temperature

• Minimum: -4°F

• Maximum: 104°F

Packaging

• UPC Barcode: 793888421943

• Master Barcode: 10793888421940

• Case Size: 6 units

Master Carton Dimensions

• Length: 97.04"

• Width: 12.99"

• Height: 7.28"
