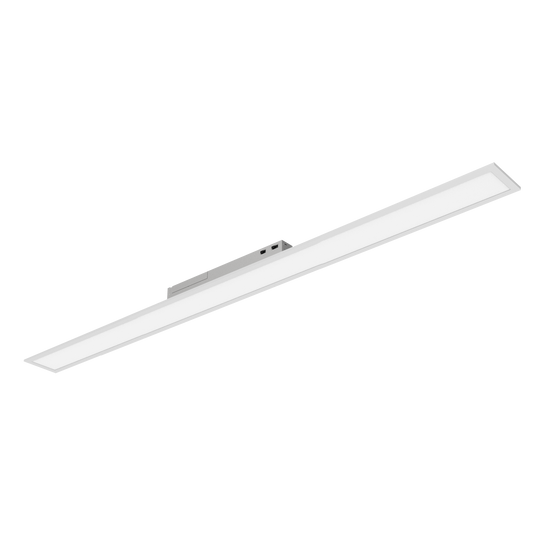

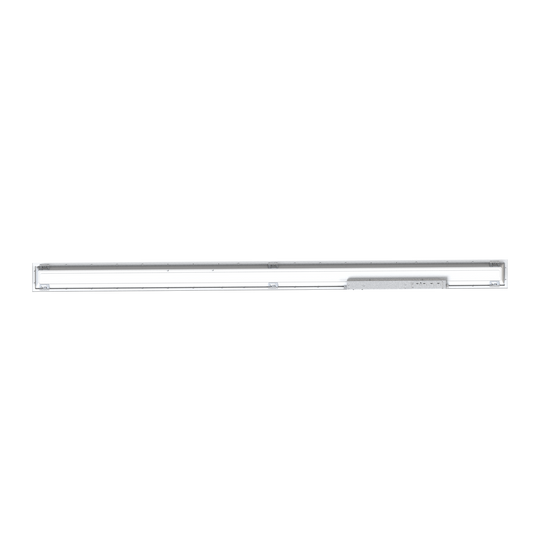

6" X 6' LED Recessed Backlit Flat Panel | 6.600Lm Max | 120/277V | CCT Selectable | Mountak Collection | Luxrite LR24284

The LR24284 6" x 6' Recessed Backlit LED Panel is a high-performance lighting solution designed for versatility, efficiency, and modern aesthetics. With selectable wattage and adjustable color temperatures (CCT), this panel allows precise control over brightness and ambiance, making it ideal for offices, retail spaces, educational facilities, healthcare environments, and residential applications.

Offering three wattage options (40W, 50W, and 60W) and four CCT settings (3000K, 3500K, 4000K, 5000K), the LR24284 provides a lumen output range of 4400–6600 lumens, delivering customizable, high-quality illumination. The backlit LED design ensures smooth, uniform light distribution with a 110° beam angle, eliminating glare and dark spots for consistent visual comfort.

Equipped with 0–10V dimming capability, this panel integrates seamlessly with modern lighting control systems, improving energy efficiency and allowing adjustable brightness for any environment. The sleek white finish and low-profile design fit neatly into standard ceiling grids, combining durability with a professional appearance. With a 50,000-hour rated lifespan, 110 lm/W efficacy, and universal 120–277V voltage compatibility, the LR24284 ensures long-term performance, reduced maintenance, and cost savings.

Key Features

• Selectable wattage: 40W / 50W / 60W

• 4 CCT options: 3000K / 3500K / 4000K / 5000K

• Lumen output: 4400 / 5500 / 6600 lumens

• Backlit LED technology for even illumination

• 0–10V dimmable for flexible lighting control

• Wide 110° beam angle for consistent coverage

• High efficacy: 110 lm/W

• Long lifespan: 50,000 hours

• Universal voltage: 120–277V

• Ideal for commercial and residential applications

Technical Specifications

General Information

• Item Number: LR24284

• Description: LED6"X6BPNL/3WO/4CCT/D

• Product Type: Recessed Backlit LED Panel

• Shape: 6" Backlit Panel

• Size: 6" x 6'

Dimensions

• Length: 71.77"

• Width: 5.83"

• Height: 1.38"

• Finish: White

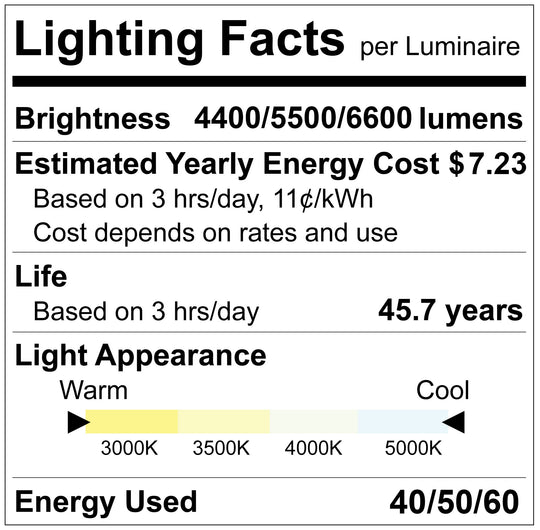

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 3000K / 3500K / 4000K / 5000K

• Lumen Output: 4400 / 5500 / 6600 lm

• Beam Angle: 110°

• CRI: 80

Electrical

• Wattage: 40W / 50W / 60W

• Input Voltage: 120–277V

• Dimming: 0–10V

• Power Factor: 0.9

• Input Current: 555mA

• Frequency: 50/60Hz

• Lumen Efficacy: 110 lm/W

• Rated Lifetime: 50,000 hours

• Estimated Yearly Energy Cost: $7.23

Operating Temperature

• Minimum: -4°F

• Maximum: 104°F

Packaging

• UPC Barcode: 793888437845

• Master Barcode: 10793888437842

• Case Size: 6 units

Master Carton Dimensions

• Length: 73.03"

• Width: 13"

• Height: 7.48"
