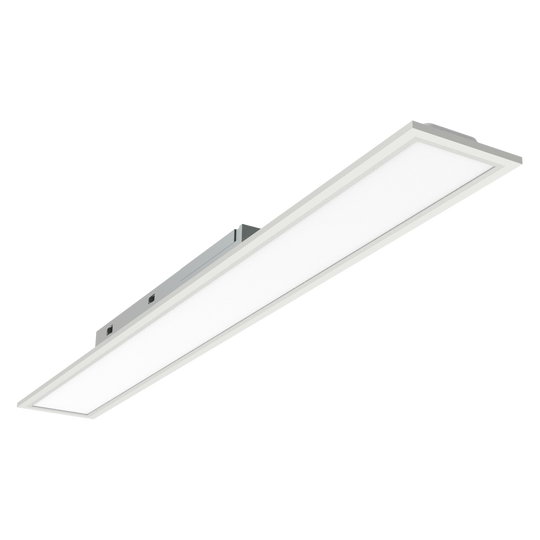

6" X 4' LED Recessed Backlit Flat Panel | 4.400Lm Max | 120/277V | CCT Selectable | Montauk Collection | Luxrite LR24283

The LR24283 6" x 4' Recessed Backlit LED Panel is a premium, high-efficiency lighting solution engineered for versatile applications in commercial and residential spaces. Featuring selectable wattage and color temperature (CCT) options, this panel allows for precise control of both brightness and ambiance, making it perfect for offices, hallways, retail environments, healthcare facilities, and modern residential areas.

With three wattage settings (18W, 28W, and 40W) and four CCT options (3000K, 3500K, 4000K, 5000K), the LR24283 delivers 2200–4400 lumens, providing customizable illumination for any space. Its advanced backlit LED design ensures smooth, uniform light distribution across a 110° beam angle, eliminating hotspots and shadows for consistent visual comfort.

Equipped with 0–10V dimming, this panel integrates seamlessly with lighting control systems, improving energy efficiency while offering adjustable brightness. Finished in sleek white, the slim-profile housing fits neatly into standard ceiling grids, combining functionality with a modern, professional aesthetic. With a 50,000-hour rated lifespan, 110 lm/W efficacy, and universal 120–277V input voltage, the LR24283 is built for durability, reduced maintenance, and significant energy savings.

Key Features

• Selectable wattage: 18W / 28W / 40W

• 4 CCT options: 3000K / 3500K / 4000K / 5000K

• Lumen output: 2200 / 3300 / 4400 lumens

• Backlit LED technology for uniform illumination

• 0–10V dimmable for lighting control integration

• Wide 110° beam angle for even coverage

• High efficiency: 110 lm/W

• Long lifespan: 50,000 hours

• Universal voltage: 120–277V

• Ideal for commercial and residential applications

Technical Specifications

General Information

• Item Number: LR24283

• Description: LED6"X4BPNL/3WO/4CCT/D

• Product Type: Recessed Backlit LED Panel

• Shape: 6" Backlit Panel

• Size: 6" x 4'

Dimensions

• Length: 47.79"

• Width: 5.83"

• Depth: 1.37"

• Finish: White

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 3000K / 3500K / 4000K / 5000K

• Lumen Output: 2200 / 3300 / 4400 lm

• Beam Angle: 110°

• CRI: 80

Electrical

• Wattage: 18W / 28W / 40W

• Input Voltage: 120–277V

• Dimming: 0–10V

• Power Factor: 0.9

• Input Current: 370mA

• Frequency: 50/60Hz

• Lumen Efficacy: 110 lm/W

• Rated Lifetime: 50,000 hours

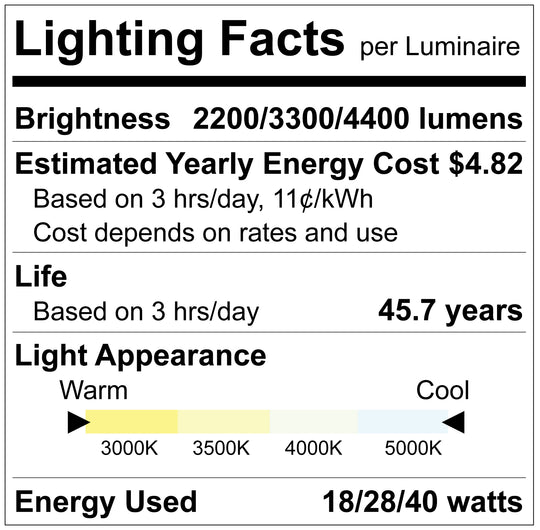

• Estimated Yearly Energy Cost: $4.82

Operating Temperature

• Minimum: -4°F

• Maximum: 104°F

Packaging

• UPC Barcode: 793888421844

• Master Barcode: 10793888421841

• Case Size: 6 units

Master Carton Dimensions

• Length: 49.01"

• Width: 12.99"

• Height: 5.62"
