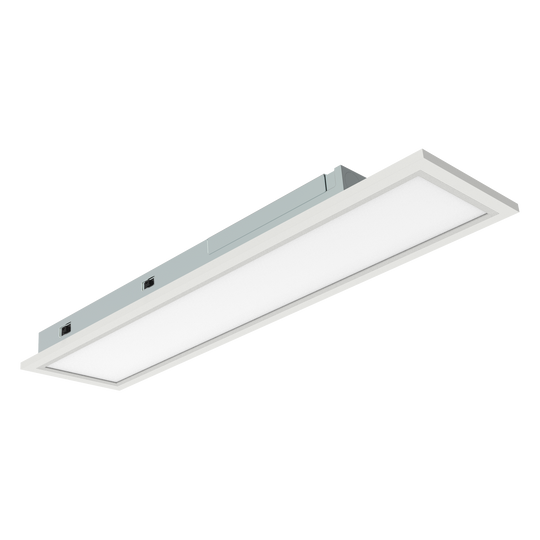

6" X 2' LED Recessed Backlit Flat Panel | 2.200Lm Max | 120/277V | CCT Selectable | Montauk Collection | Luxrite LR24281

The LR24281 6" x 2' Recessed Backlit LED Panel is a compact, high-efficiency lighting solution engineered for versatility and performance in modern commercial and residential applications. Designed with selectable wattage and multiple color temperature (CCT) options, this fixture allows you to fine-tune both brightness and ambiance to match any environment.

With three adjustable wattage settings (13W, 16W, and 20W) and four selectable color temperatures (3000K, 3500K, 4000K, and 5000K), this LED panel delivers flexible illumination from 1600 to 2200 lumens, making it ideal for offices, hallways, kitchens, retail spaces, and utility areas.

The advanced backlit LED technology provides smooth, uniform light distribution across a wide 110° beam angle, minimizing glare and eliminating dark spots. Its 0–10V dimming capability ensures seamless integration with lighting control systems, allowing for energy savings and customized lighting levels throughout the day.

Built with a slim profile and finished in clean white, this panel integrates effortlessly into standard ceiling grids while maintaining a modern, professional appearance. With a 50,000-hour rated lifespan, 110 lm/W efficacy, and universal 120–277V input voltage, the LR24281 is designed for long-term durability, reduced maintenance, and lower operating costs.

Key Features

• Selectable wattage: 13W / 16W / 20W

• 4 CCT options: 3000K / 3500K / 4000K / 5000K

• Lumen output: 1600 / 1900 / 2200 lumens

• Backlit LED design for uniform illumination

• 0–10V dimmable for enhanced lighting control

• Wide 110° beam angle for even light distribution

• High efficacy: 110 lumens per watt

• Long lifespan: 50,000 hours

• Universal voltage: 120–277V

• Ideal for commercial and residential applications

Technical Specifications

General Information

• Item Number: LR24281

• Description: LED6"X2BPNL/3WO/4CCT/D

• Product Type: Recessed Backlit LED Panel

• Shape: 6" Backlit Panel

• Size: 6" x 2'

Dimensions

• Length: 23.82"

• Width: 5.83"

• Depth: 1.37"

• Finish: White

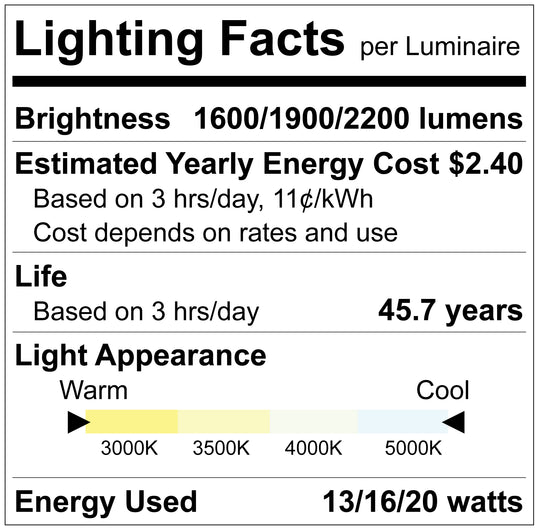

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 3000K / 3500K / 4000K / 5000K

• Lumen Output: 1600 / 1900 / 2200 lm

• Beam Angle: 110°

• CRI: 80

Electrical

• Wattage: 13W / 16W / 20W

• Input Voltage: 120–277V

• Dimming: 0–10V

• Power Factor: 0.9

• Input Current: 185mA

• Frequency: 50/60Hz

• Lumen Efficacy: 110 lm/W

• Rated Lifetime: 50,000 hours

• Estimated Yearly Energy Cost: $2.40

Operating Temperature

• Minimum: -4°F

• Maximum: 104°F

Packaging

• UPC Barcode: 793888421745

• Master Barcode: 10793888421742

• Case Size: 6 units

Master Carton Dimensions

• Length: 25"

• Width: 12.99"

• Height: 5.62"
