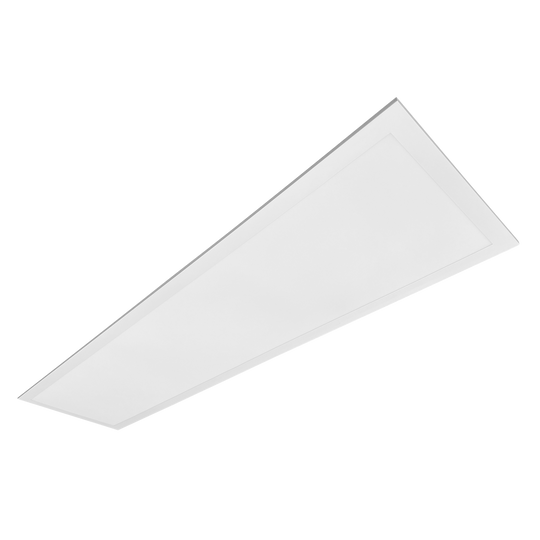

1x4 LED Backlit Flat Panel Antiglare | 5K Lm Max | 100/277V | CCT Selectable | Austin Collection | Luxrite LR24255

The LR24255 1x4 Anti-Glare Backlit LED Panel is a high-efficiency lighting solution designed to deliver superior brightness, visual comfort, and flexibility in commercial and residential environments. Featuring anti-glare technology, this panel reduces eye strain while maintaining uniform, high-quality illumination—ideal for offices, corridors, classrooms, and retail spaces.

With selectable wattage options (30W, 35W, 40W) and three adjustable color temperatures (4000K, 5000K, 6500K), the LR24255 allows you to tailor both brightness and color output to suit your application. Producing up to 5000 lumens with a high 125 lm/W efficacy, this panel ensures powerful illumination while minimizing energy consumption.

The advanced backlit LED design provides even light distribution across a wide 120° beam angle, eliminating shadows and hotspots. Its 0–10V dimming capability allows seamless integration with lighting control systems, enabling energy savings and customizable lighting levels.

Built with a sleek white finish and a slim 1.47-inch profile, the panel fits effortlessly into standard ceiling grids while maintaining a modern and professional look. With a 50,000-hour rated lifespan and universal 100–277V compatibility, the LR24255 is engineered for durability, reduced maintenance, and long-term cost efficiency.

Key Features

• Selectable wattage: 30W / 35W / 40W

• 3 CCT options: 4000K / 5000K / 6500K

• Lumen output: 3750 / 4375 / 5000 lumens

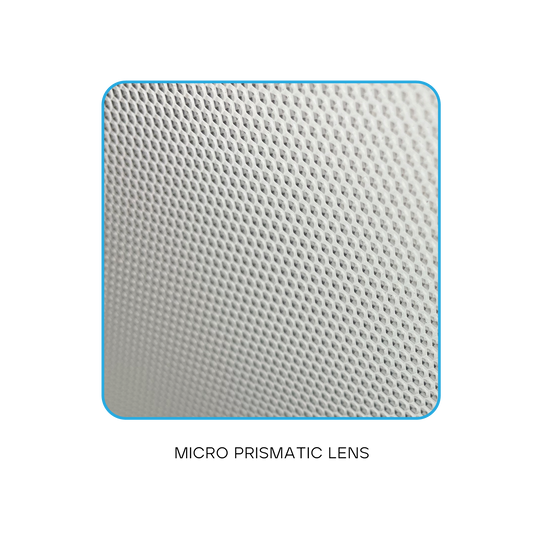

• Anti-glare technology for enhanced visual comfort

• Backlit LED design for uniform illumination

• 0–10V dimmable for lighting control systems

• Wide 120° beam angle for consistent coverage

• High efficacy: 125 lumens per watt

• Long lifespan: 50,000 hours

• Universal voltage: 100–277V

• Ideal for offices, hallways, classrooms, and retail applications

Technical Specifications

General Information

• Item Number: LR24255

• Description: LED1X4BPNL/3WO/3CCTD/AG/D

• Product Type: 1x4 Anti-Glare Backlit LED Panel

• Shape: 1x4

• Size: 1' x 4'

Dimensions

• Length: 11.85"

• Width: 47.72"

• Height: 1.47"

• Finish: White

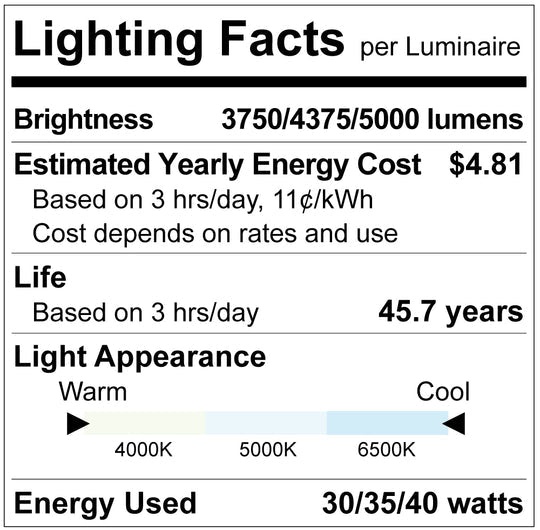

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 4000K / 5000K / 6500K

• Lumen Output: 3750 / 4375 / 5000 lm

• Beam Angle: 120°

• CRI: 80

Electrical

• Wattage: 30W / 35W / 40W

• Input Voltage: 100–277V

• Dimming: 0–10V

• Power Factor: ≥0.9

• Lumen Efficacy: 125 lm/W

• Rated Lifetime: 50,000 hours

• Estimated Yearly Energy Cost: $4.81

Packaging Information

• UPC Barcode: 793888397248

• Master Barcode: 10793888397245

• Case Size: 4 units

• Weight: 19.84 lbs

Master Carton Dimensions

• Length: 49.49"

• Width: 9.37"

• Height: 13.98"
