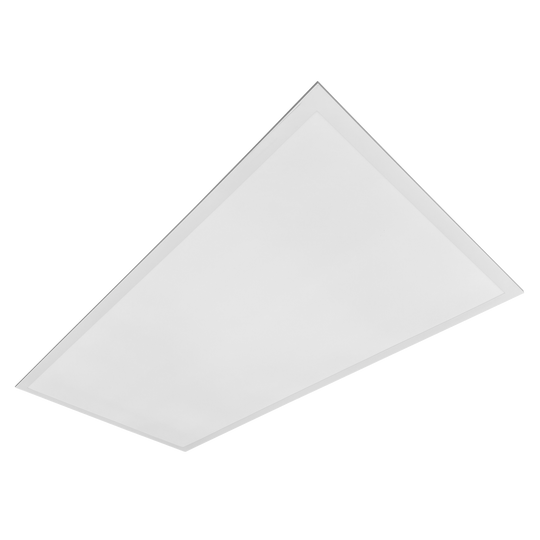

2x4 LED Backlit Flat Panel Antiglare | 6.250Lm Max | 100/277V | CCT Selectable | Austin Collection | Luxrite LR24253

The LR24253 2x4 Anti-Glare Backlit LED Panel is a high-performance lighting solution designed to deliver superior illumination, energy efficiency, and visual comfort in commercial and professional environments. Featuring anti-glare technology, this panel minimizes eye strain while providing consistent, uniform lighting—ideal for offices, schools, healthcare facilities, and retail spaces.

With selectable wattage (30W, 40W, 50W) and three adjustable color temperatures (4000K, 5000K, 6500K), the LR24253 allows you to customize both brightness and light tone to match your space requirements. Delivering up to 6250 lumens with an impressive 125 lm/W efficacy, this panel ensures powerful yet efficient lighting performance.

Its advanced backlit LED design combined with a wide 120° beam angle ensures even light distribution without dark spots or harsh shadows. The 0–10V dimming capability allows seamless integration with lighting control systems, offering enhanced energy savings and flexibility.

Built with a sleek white finish and a slim 1.47-inch profile, the panel integrates effortlessly into standard ceiling grids, maintaining a modern and professional appearance. With a 50,000-hour lifespan and universal 100–277V compatibility, the LR24253 is engineered for long-term durability and reduced maintenance costs.

Key Features

• Selectable wattage: 30W / 40W / 50W

• 3 CCT options: 4000K / 5000K / 6500K

• Lumen output: 3750 / 5000 / 6250 lumens

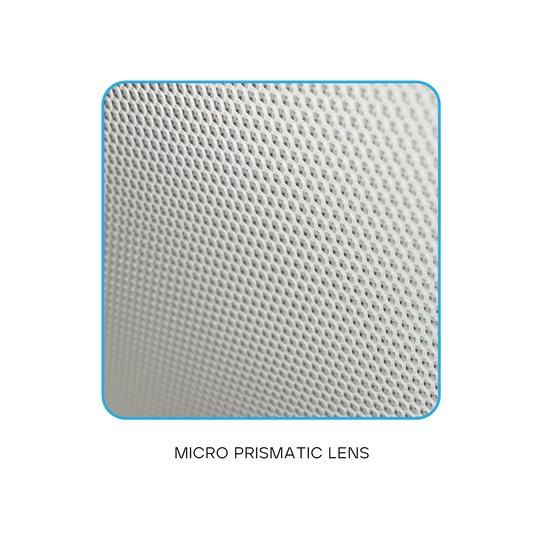

• Anti-glare technology for enhanced visual comfort

• Backlit LED design for uniform illumination

• 0–10V dimmable for lighting control systems

• Wide 120° beam angle for consistent coverage

• High efficacy: 125 lumens per watt

• Long lifespan: 50,000 hours

• Universal voltage: 100–277V

• Ideal for offices, schools, retail, and commercial applications

Technical Specifications

General Information

• Item Number: LR24253

• Description: LED2X4BPNL/3WO/3CCTD/AG/D

• Product Type: 2x4 Anti-Glare Backlit LED Panel

• Shape: 2x4

• Size: 2' x 4'

Dimensions

• Length: 23.74"

• Width: 47.72"

• Height: 1.47"

• Finish: White

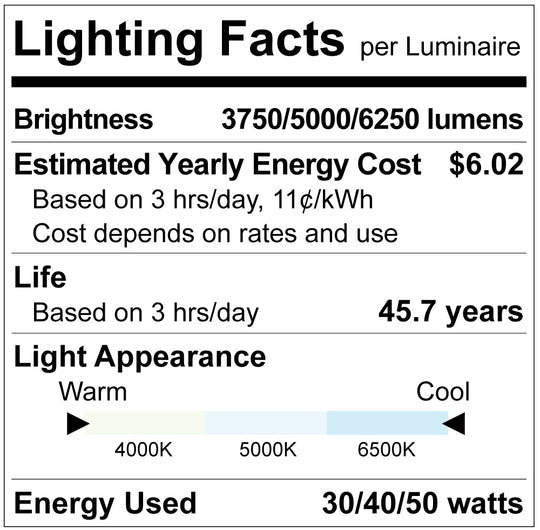

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 4000K / 5000K / 6500K

• Lumen Output: 3750 / 5000 / 6250 lm

• Beam Angle: 120°

• CRI: 80

Electrical

• Wattage: 30W / 40W / 50W

• Input Voltage: 100–277V

• Dimming: 0–10V

• Power Factor: ≥0.9

• Lumen Efficacy: 125 lm/W

• Rated Lifetime: 50,000 hours

• Estimated Yearly Energy Cost: $6.02

Packaging Information

• UPC Barcode: 793888397149

• Master Barcode: 10793888397146

• Case Size: 4 units

• Weight: 36.16 lbs

Master Carton Dimensions

• Length: 49.49"

• Width: 9.37"

• Height: 25.79"
