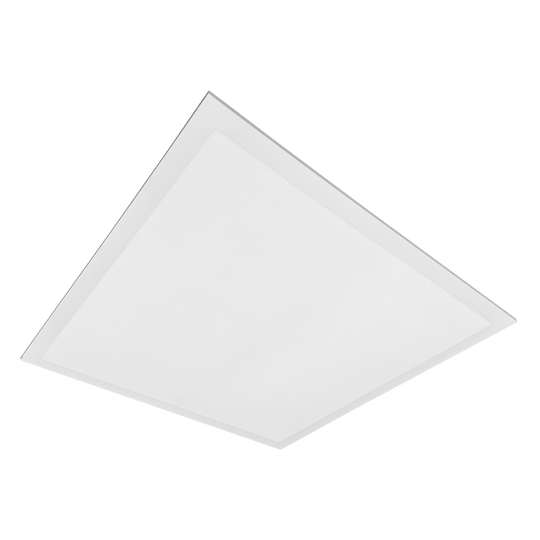

2x2 LED Backlit Flat Panel Antiglare | 5K Lm Max | 120/277V | CCT Selectable | Austin Collection | Luxrite LR24250

The LR24250 2x2 Anti-Glare Backlit LED Panel is a versatile, energy-efficient lighting solution designed for modern commercial, office, and residential applications. Engineered with anti-glare technology, this panel provides uniform illumination while minimizing eye strain, making it ideal for workspaces, conference rooms, classrooms, and healthcare environments.

With selectable wattage (30W, 35W, 40W) and three color temperature options (4000K, 5000K, 6500K), the LR24250 series allows precise control over brightness and ambiance. Its 120° beam angle and 125 lm/W efficacy ensure wide, even light distribution, while the 0–10V dimming capability integrates seamlessly with modern lighting control systems.

The panel is available in three configurations:

• Standard LR24250: Core anti-glare backlit panel for ceiling installations

• LR24250+EM: Includes emergency backup for uninterrupted lighting during power outages

• LR24250+MS: Equipped with motion sensors to enhance energy efficiency and smart automation

Each version offers a sleek white finish, low-profile design (1.47" height), and a 50,000-hour rated lifespan, ensuring long-term reliability and reduced maintenance costs. Universal voltage (100–277V) compatibility allows installation in diverse environments.

Key Features

• Selectable wattage: 30W / 35W / 40W

• CCT options: 4000K / 5000K / 6500K

• Lumen output: 3750 / 4375 / 5000 lumens

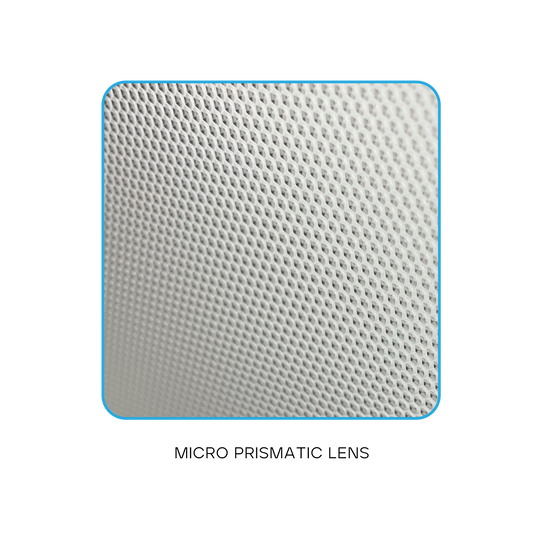

• Anti-glare technology for eye comfort

• 0–10V dimmable for lighting control integration

• Wide 120° beam angle for uniform coverage

• High efficacy: 125 lm/W

• Long lifespan: 50,000 hours

• Universal voltage: 100–277V

• Optional features: Emergency backup (EM) or Motion sensor (MS)

Technical Specifications

General Information

• Item Numbers: LR24250 / LR24250+EM / LR24250+MS

• Description: LED2X2BPNL/3WO/3CCTD/AG/D (+EM / +MS)

• Product Type: 2x2 Anti-Glare Backlit LED Panel

• Shape: 2x2

• Size: 2' x 2'

Dimensions

• Length: 23.74"

• Width: 23.74"

• Height: 1.47"

• Finish: White

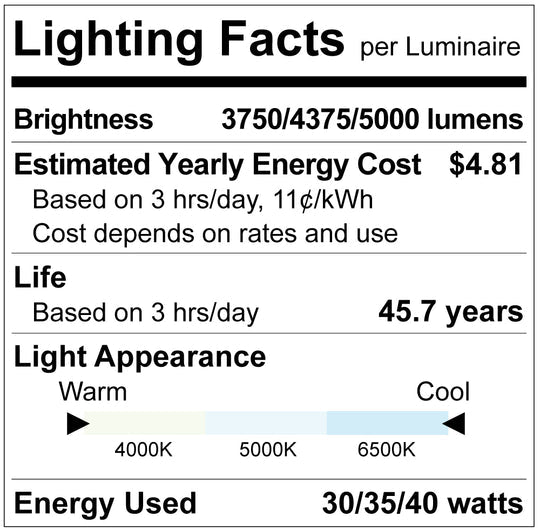

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 4000K / 5000K / 6500K

• Lumen Output: 3750 / 4375 / 5000 lm

• Beam Angle: 120°

• CRI: 80

Electrical

• Wattage: 30W / 35W / 40W

• Input Voltage: 100–277V

• Dimming: 0–10V

• Power Factor: ≥0.9

• Lumen Efficacy: 125 lm/W

• Rated Lifetime: 50,000 hours

• Estimated Yearly Energy Cost: $4.81

Packaging

• UPC Barcode: 793888397040

• Master Barcode: 10793888397047

• Case Size: 4 units

• Master Carton Dimensions: Length 25.4" | Width 9.37" | Height 25.79"

• Weight: 19.4 lbs
