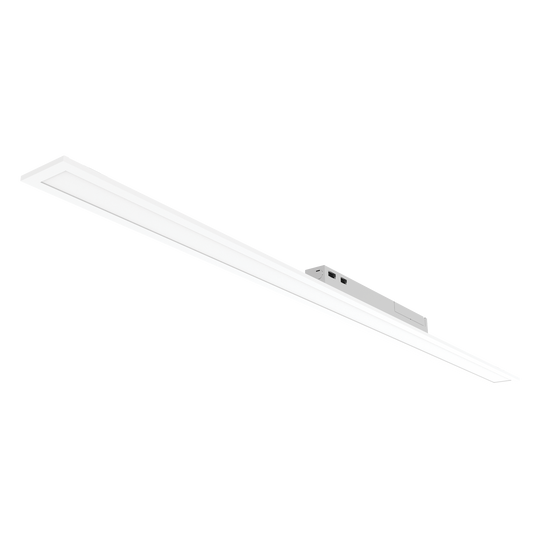

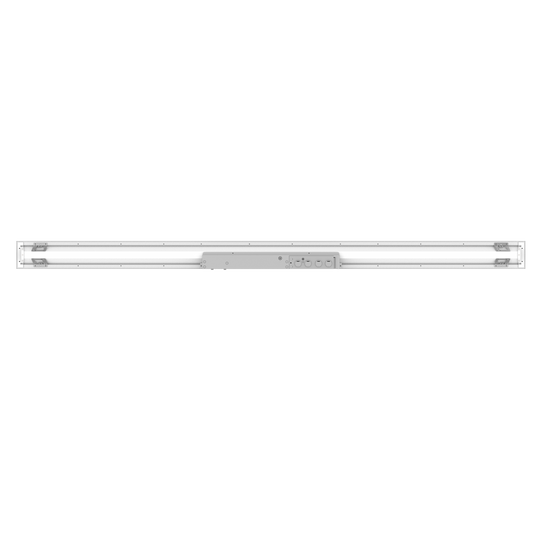

4" x 6' Recessed Backlit LED Panel – CCT & Wattage Selectable (LR24222)

The LR24222 4" x 6' recessed backlit LED panel is a high-output linear lighting solution designed for large commercial and industrial applications. With selectable wattage and color temperature, it delivers flexibility, efficiency, and superior illumination for modern lighting projects.

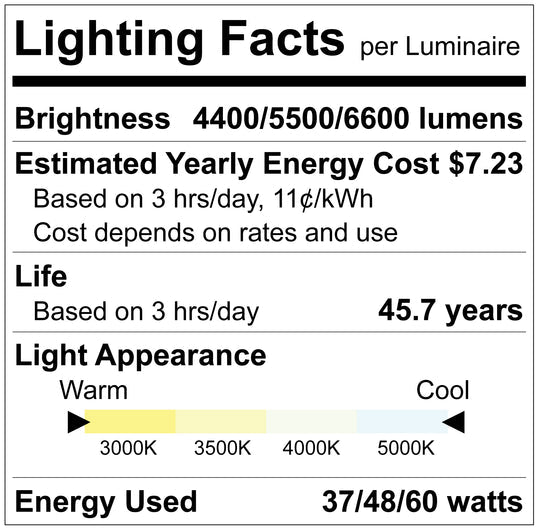

Offering three wattage options (37W / 48W / 60W) and four selectable CCT settings (3000K, 3500K, 4000K, 5000K), this panel allows users to customize both brightness and ambiance. Producing up to 6600 lumens with 110 lm/W efficacy, it ensures powerful, energy-efficient lighting for expansive spaces.

The backlit panel design provides uniform, glare-reduced illumination with a wide 110° beam angle, making it ideal for open offices, warehouses, retail stores, and large commercial environments. Its slim profile (1.97”) allows seamless recessed installation while maintaining a clean architectural look.

Engineered for long-term reliability, the fixture features 0-10V dimming, operates on 120-277V, and offers a 50,000-hour lifespan, reducing maintenance and operating costs.

Key Features

• Selectable wattage: 37W / 48W / 60W

• Selectable CCT: 3000K / 3500K / 4000K / 5000K

• High output: up to 6600 lumens

• High efficacy: 110 lm/W

• Wide beam angle: 110° for uniform lighting

• 0-10V dimmable for lighting control

• Slim recessed design: 1.97” height

• Long lifespan: 50,000 hours

• Wide voltage range: 120-277V

Applications

• Large commercial and industrial spaces

• Offices and open-plan work areas

• Retail stores and showrooms

• Warehouses and distribution centers

• Educational and healthcare facilities

Technical Specifications

General Specifications

Dimensions

Lighting Specifications

Electrical Specifications

Performance

Packaging Information
