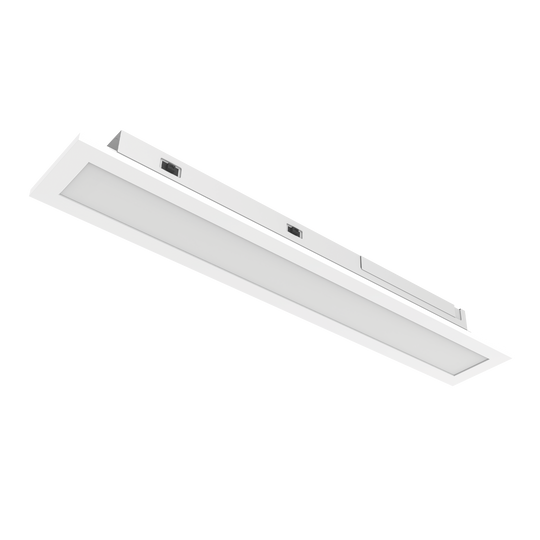

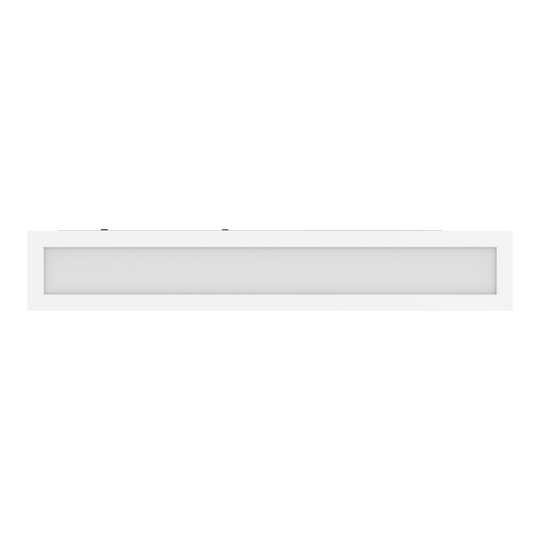

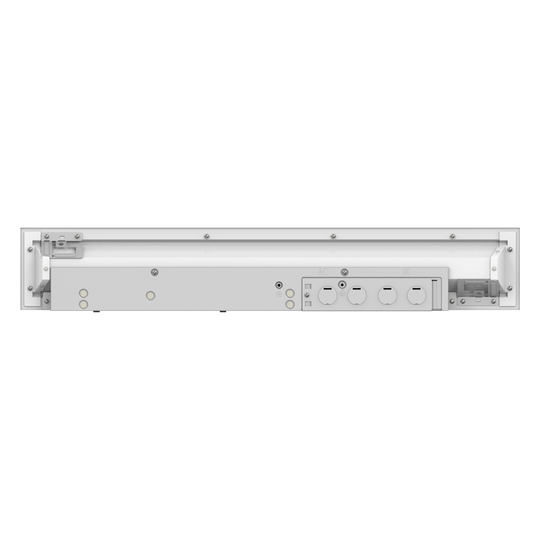

4" x 2' Recessed Backlit LED Panel – CCT & Wattage Selectable (LR24220)

The LR24220 4" x 2' recessed backlit LED panel is a high-efficiency linear lighting solution designed for commercial, office, and modern interior applications. Featuring selectable wattage and color temperature, this panel provides maximum flexibility for contractors, designers, and facility managers.

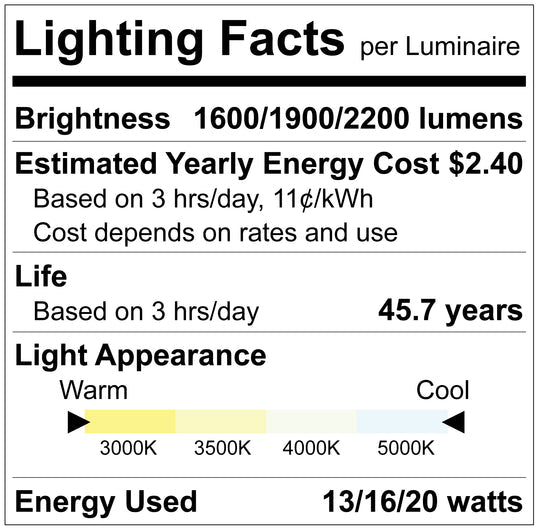

With three wattage options (13W / 16W / 20W) and four selectable color temperatures (3000K, 3500K, 4000K, 5000K), users can easily adjust both brightness and ambiance to suit any environment. Delivering up to 2200 lumens with 110 lm/W efficacy, this fixture ensures powerful, energy-efficient illumination.

The backlit panel design provides uniform light distribution with a wide 110° beam angle, minimizing shadows and glare—ideal for workspaces and general lighting. With a low-profile depth of just 1.38 inches, it integrates seamlessly into ceilings for a clean, professional look.

Engineered for performance, this panel supports 0-10V dimming, operates on 120-277V, and offers a 50,000-hour lifespan, reducing maintenance and energy costs over time.

Key Features

• Selectable wattage: 13W / 16W / 20W

• Selectable CCT: 3000K / 3500K / 4000K / 5000K

• High output: up to 2200 lumens

• High efficacy: 110 lm/W

• Wide beam angle: 110° for uniform illumination

• 0-10V dimmable for flexible control

• Long lifespan: 50,000 hours

• Low-profile recessed design (1.38” depth)

• Wide voltage input: 120-277V

Applications

• Office and commercial lighting

• Conference rooms and workspaces

• Retail and hospitality environments

• Hallways and corridors

• Healthcare and educational facilities

Technical Specifications

General Specifications

Dimensions

Lighting Specifications

Electrical Specifications

Performance

Packaging Information
