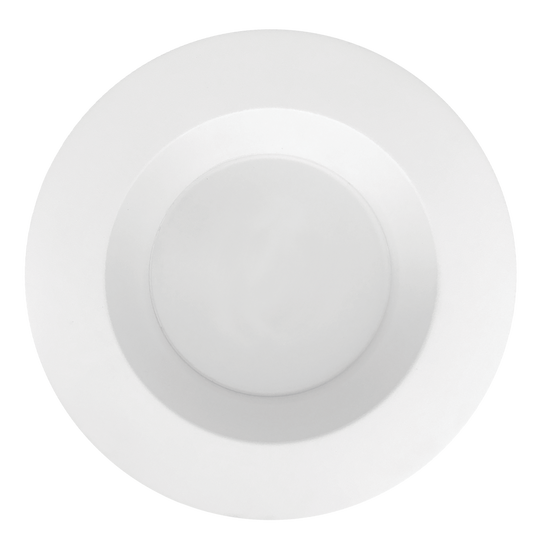

Deliver maximum high-lumen illumination and a clean, modern aesthetic to high ceilings, commercial spaces, and large residential layouts with the Regulus 5-6" Round High-Output Smooth LED Downlight Retrofit (Model LR23799, Ordering Code: LED/DL5-6HO/5CCT/FL/RD). Engineered for universal installation into standard 5-inch and 6-inch recessed housings, this fixture features an included E26 medium screw base adapter and adjustable mounting torsion springs for a fast, toolless upgrade over legacy 90W incandescent luminaires. Its smooth white trim creates a seamless, flush profile that integrates effortlessly into contemporary drywall and ceiling grids.

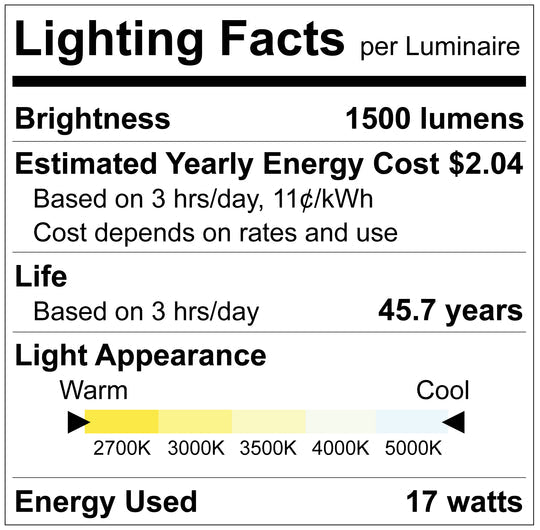

Operating at 17W, this High-Output (HO) luminaire produces an impressive 1500 lumens with a high efficacy of 85 lm/W across a wide 110° flood beam spread. It features an integrated 5-CCT selectable switch (2700K, 3000K, 3500K, 4000K, and 5000K) backed by superior color fidelity (CRI 90). Compatible with standard 120V TRIAC dimmers, it provides smooth atmosphere control. Engineered for long-term operational durability, this downlight boasts a 50,000-hour rated life and an estimated annual operating cost of just $2.04.
Key Features:
High-Output (HO) Performance: Delivers 1500 lumens using 17W, providing powerful illumination for high-ceiling residential and commercial installations.

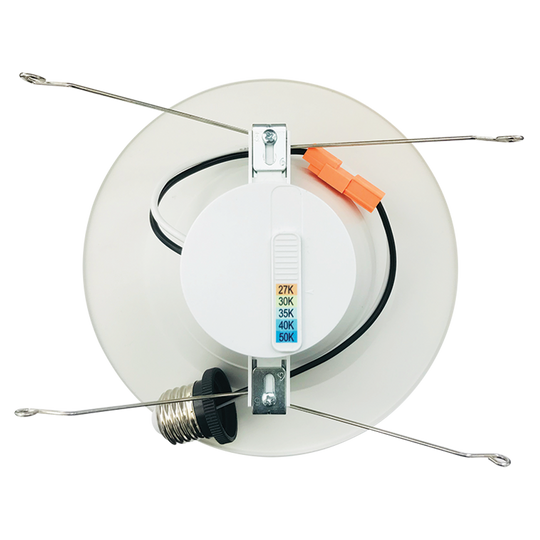

Universal 5-6" Fit: Equipped with adjustable mounting torsion springs to fit both 5-inch and 6-inch existing recessed housings.
Minimalist Smooth Trim: Smooth white design creates a clean, modern ceiling look with wide, uniform light distribution.
5-CCT Field Selectable: Conveniently select your preferred color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) via an integrated switch.
E26 Base Adapter Included: Plug-and-play installation into standard screw-base recessed light cans.
High-CRI >90 Quality: Ensures accurate and vibrant color rendering across all indoor environments.
120V TRIAC Dimmable: Continuous dimming performance using standard forward-phase wall dimmers.
50,000-Hour Rated Life: Long operational lifespan drastically reduces maintenance overhead and lamp replacement frequency.
| Technical Specification | Product Details (LR23799 Profile) |
| Item Registry Number | LR23799 |
| Ordering Code | LED/DL5-6HO/5CCT/FL/RD |
| Product Line / Series | Regulus High-Output LED Recessed Retrofit Series |
| Housing Style & Shape | 5-6" Round Smooth High-Output Downlight |
| Nominal System Size | Universal 5.00 to 6.00 Inch |
| Physical Dimensions | 7.32" Outer Diameter (Ø) x 3.23" Depth/Height |
| Aesthetic Surface Finish | Architectural White |
| Optical Lens & Trim | Smooth Diffuser Lens |
| Base Interface Type | E26 Medium Screw Base Adapter |
| Power Consumption | 17W (90W Incandescent Equivalent) |
| Input Operational Voltage | 120V AC (60Hz) |
| Power Factor / Efficacy | PF 0.9 / 85 Lumens per Watt |
| Luminous Output Performance | 1500 Lumens |
| Color Rendering Index (CRI) | CRI 90 (High Color Fidelity) |
| Beam Spread Angle | 110° Wide Flood Distribution |
| Selectable Color Options | 5-CCT Switch (2700K / 3000K / 3500K / 4000K / 5000K) |
| Dimming Protocol | TRIAC Dimmable |
| Rated Operational Lifetime | 50,000 Hours |
| Estimated Yearly Energy Cost | $2.04 (Based on standard usage) |
| Operating Temperature Range | -4°F (-20°C) Min / 104°F (40°C) Max |
Individual UPC Barcode: 793888421349
Master Pack Barcode: 10793888421346
Master Case Pack Quantity: 24 Units per Case
Master Case Dimensions: 22.04" L x 15.75" W x 15.51" H
Master Case Gross Weight: 15.59 lbs
