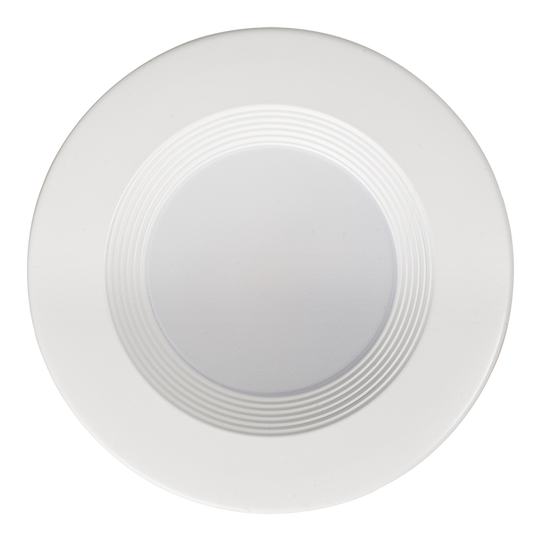

Upgrade standard 5-inch and 6-inch recessed light cans with the high-efficiency Regulus 5-6" Round Baffled LED Downlight Retrofit (Model LR23795, Ordering Code: LED/DL5-6/5CCT/FL/B/RD). Engineered for universal installation in both residential and commercial ceiling applications, this retrofit fixture includes an E26 medium screw base adapter and adjustable torsion springs for a fast, toolless conversion of inefficient 90W incandescent downlights. Its classic white stepped baffle design absorbs excess ambient reflection, significantly reducing lens glare while delivering smooth, even illumination.
Operating at just 13W, this luminaire produces a bright 1100 lumens with an efficacy of 79 lm/W across a 90° flood beam spread. It features an integrated 5-CCT selectable switch (2700K, 3000K, 3500K, 4000K, and 5000K) backed by superior color rendering (CRI 90). Compatible with standard 120V TRIAC dimmers, it allows seamless control over lighting intensity. Built for exceptional reliability, this fixture boasts a 50,000-hour rated life and an estimated annual operating cost of just $1.56.
Key Features:
Universal 5-6" Fit: Equipped with adjustable mounting torsion springs to fit both 5-inch and 6-inch recessed housings.
Glare-Reducing Baffled Trim: Stepped baffle design softens visual glare and delivers uniform light distribution.
5-CCT Field Selectable: Conveniently select your preferred color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) via an integrated switch.

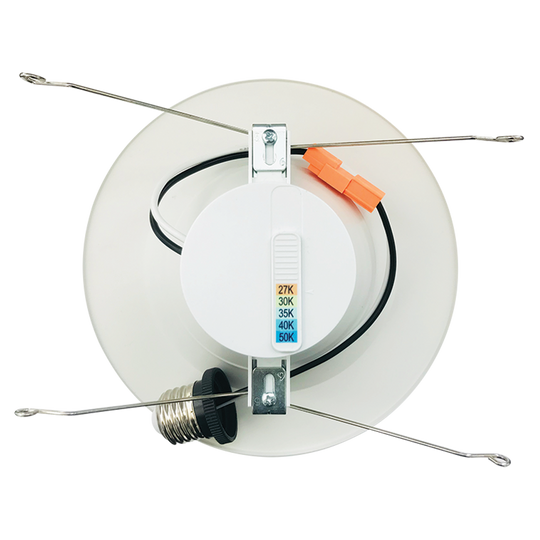

E26 Base Adapter Included: Plug-and-play installation into standard screw-base recessed light cans.
High-CRI >90 & High Brightness: Delivers 1100 lumens of accurate, vibrant color while replacing 90W incandescent lamps at only 13W.
120V TRIAC Dimmable: Smooth continuous dimming performance using standard forward-phase wall dimmers.
50,000-Hour Rated Life: Long-lasting construction eliminates frequent lamp replacements and reduces maintenance costs.
| Technical Specification | Product Details (LR23795 Profile) |
| Item Registry Number | LR23795 |
| Ordering Code | LED/DL5-6/5CCT/FL/B/RD |
| Product Line / Series | Regulus LED Recessed Downlight Retrofit Series |
| Housing Style & Shape | 5-6" Round Baffled Trim Downlight |
| Nominal System Size | Universal 5.00 to 6.00 Inch |
| Physical Dimensions | 7.33" Outer Diameter (Ø) x 3.23" Height |
| Aesthetic Surface Finish | Architectural White |
| Optical Lens & Trim | Stepped Baffle Diffuser |
| Base Interface Type | E26 Medium Screw Base Adapter |
| Power Consumption | 13W (90W Incandescent Equivalent) |
| Input Operational Voltage | 120V AC (60Hz) |
| Power Factor / Efficacy | PF 0.9 / 79 Lumens per Watt |
| Luminous Output Performance | 1100 Lumens |
| Color Rendering Index (CRI) | CRI 90 (High Color Fidelity) |
| Beam Spread Angle | 90° Flood Distribution |
| Selectable Color Options | 5-CCT Switch (2700K / 3000K / 3500K / 4000K / 5000K) |
| Dimming Protocol | TRIAC Dimmable |
| Rated Operational Lifetime | 50,000 Hours |
| Estimated Yearly Energy Cost | $1.56 (Based on standard usage) |
| Operating Temperature Range | -4°F (-20°C) Min / 104°F (40°C) Max |
Individual UPC Barcode: 644216076116
Master Pack Barcode: 10644216076113
Master Case Pack Quantity: 24 Units per Case
Master Case Dimensions: 22.05" L x 15.75" W x 15.51" H
Master Case Gross Weight: 17.57 lbs
