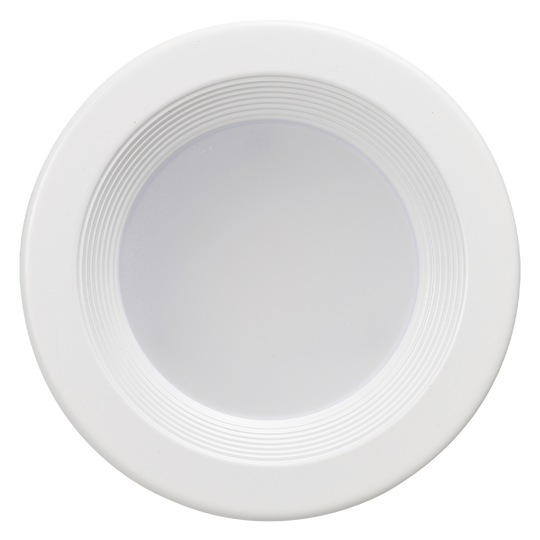

Deliver enhanced illumination to high-ceiling spaces and commercial settings with the Regulus 4" Round High-Output Baffled LED Downlight Retrofit (Model LR23793, Ordering Code: LED/DL4HO/5CCT/FL/B/RD). Designed for quick installation into standard 4-inch recessed housings, this fixture features an included E26 medium screw base adapter, offering an efficient, high-lumen retrofit upgrade for traditional 75W incandescent luminaires. Its white baffled trim design effectively reduces glare while ensuring crisp, evenly distributed lighting.
Engineered for increased performance, this High-Output (HO) model consumes 12W to deliver 985 lumens at a 90° flood beam spread. It features an integrated 5-CCT selectable switch (2700K, 3000K, 3500K, 4000K, and 5000K) with high color fidelity (CRI 90). Compatible with standard 120V TRIAC dimming systems, it provides smooth light adjustment and is rated for 50,000 operational hours with an estimated yearly energy cost of $1.69.
Key Features:
High-Output (HO) Performance: Produces 985 lumens at 12W, serving as a direct replacement for 75W incandescent lamps.
Glare-Reducing Baffled Trim: Stepped baffle design softens visual brightness and diffuses glare for superior visual comfort.
5-CCT Field Selectable: Conveniently toggle between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures on-site.

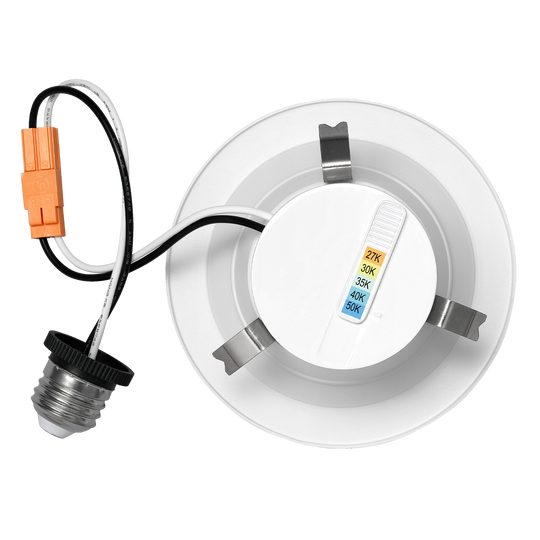

E26 Base Adapter Included: Plug-and-play installation into standard 4" recessed light housings.
High-CRI >90 Quality: Ensures accurate and vibrant color rendering across residential and commercial spaces.
120V TRIAC Dimmable: Continuous dimming performance with standard forward-phase dimmers.
50,000-Hour Lifetime: Built for long-term durability to eliminate frequent lamp replacements.
| Technical Specification | Product Details (LR23793 Profile) |
| Item Registry Number | LR23793 |
| Ordering Code | LED/DL4HO/5CCT/FL/B/RD |
| Product Line / Series | Regulus High-Output LED Recessed Retrofit Series |
| Housing Style & Shape | 4" Round Baffled High-Output Downlight |
| Nominal System Size | 4.00 Inch |
| Physical Dimensions | 5.09" Diameter (Ø) x 3.11" Height |
| Aesthetic Surface Finish | Architectural White |
| Optical Lens & Trim | Stepped Baffle Diffuser |
| Base Interface Type | E26 Medium Screw Base Adapter |
| Power Consumption | 12W (75W Incandescent Equivalent) |
| Input Operational Voltage | 120V AC (60Hz) |
| Power Factor / Efficacy | PF 0.9 / 68 Lumens per Watt |
| Luminous Output Performance | 985 Lumens |
| Color Rendering Index (CRI) | CRI 90 (High Color Fidelity) |
| Beam Spread Angle | 90° Flood Distribution |
| Selectable Color Options | 5-CCT Switch (2700K / 3000K / 3500K / 4000K / 5000K) |
| Dimming Protocol | TRIAC Dimmable |
| Rated Operational Lifetime | 50,000 Hours |
| Estimated Yearly Energy Cost | $1.69 (Based on standard usage) |
| Operating Temperature Range | -4°F (-20°C) Min / 104°F (40°C) Max |
Individual UPC Barcode: 644216099917
Master Pack Barcode: 10644216099914
Master Case Pack Quantity: 24 Units per Case
Master Case Dimensions: 19.21" L x 11.26" W x 11.26" H
Master Case Gross Weight: 18.87 lbs
