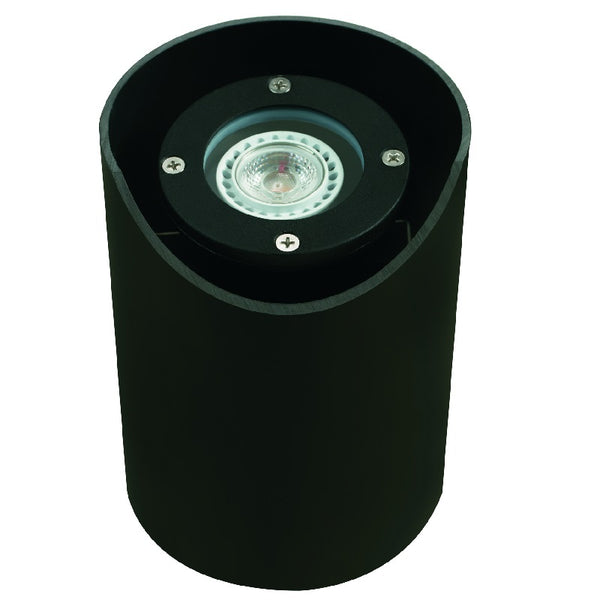

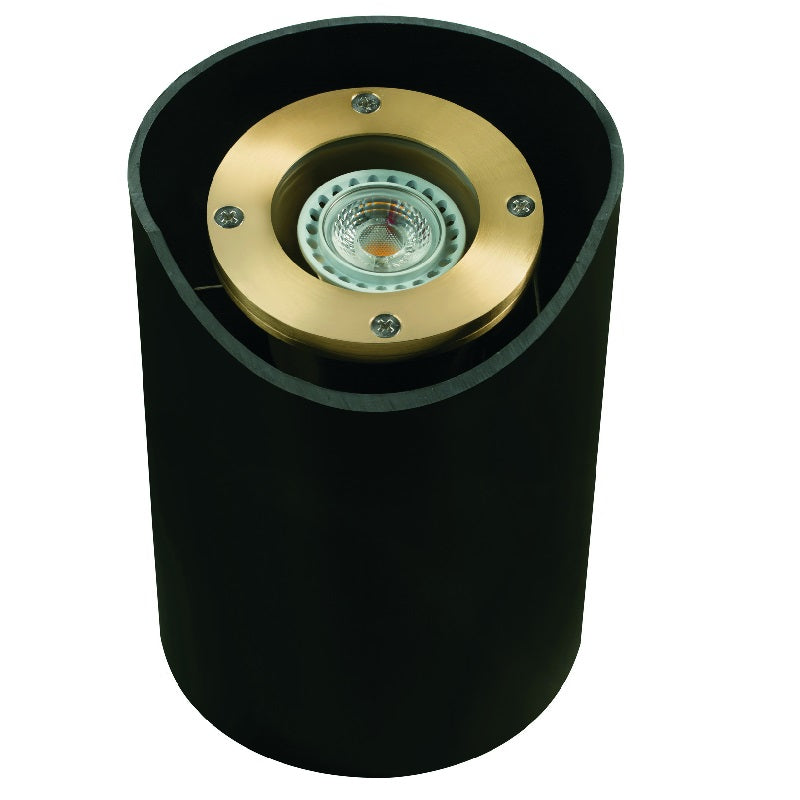

Adjustable Lensed Well Light | Black & Brass Finishes | 12V MR-16
| SKU(s) | CL-331-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/2" |
| Length | 5-1/2" |
| Height | 8" |
| Diameter | 5-1/2" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Adjustable Lensed Well Light is a versatile in-ground landscape lighting fixture designed for precise light aiming and durable outdoor performance. Available in aluminum, composite, or natural brass housings with black or natural brass finishes, this fixture is ideal for accentuating trees, columns, architectural details, pathways, and garden features.
Its adjustable internal design allows the fixture to be positioned within a reversible PVC sleeve (flat or angled cut) for optimal beam direction. This ensures maximum flexibility for landscape lighting designs while maintaining a clean, flush appearance in-ground.
The fixture includes a clear, tempered, heat-resistant glass lens with a silicone gasket, providing reliable protection against outdoor elements. A high-quality ceramic bi-pin socket with retention clip secures the lamp in place.
Compatible with 12V MR-16 lamps up to 50W (halogen), the Adjustable Lensed Well Light also supports LED MR-16 lamps with a 9–17V operating range, delivering both efficiency and high performance.
Prewired with a 3-foot 18-2 SPT2-W direct burial cord, installation is simple. Optional connectors, such as the CX-839 universal connector or CX-854 silicone-filled wire nut, may be ordered separately for weatherproof wiring.
The fixture is designed for direct burial or concrete encasement using the included PVC sleeve. Requires a remote 12V transformer (sold separately).
Backed by a one-year warranty on the housing, this fixture provides a reliable, value-grade solution for landscape lighting professionals.
$100.85 /each
| SKU(s) | CL-302-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 15-3/4" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$90.00 /each
| SKU(s) | CL-340-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 4-7/8" |
| Length | 4-7/8" |
| Height | 4-5/8" + 1-3/8" |
| Diameter | 4-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$84.65 /each
| SKU(s) | CL-326-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 3-3/4" |
| Diameter | 3-7/8" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$79.25 /each
| SKU(s) | CL-631-VG |
| Color | Green |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Green |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 30" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
