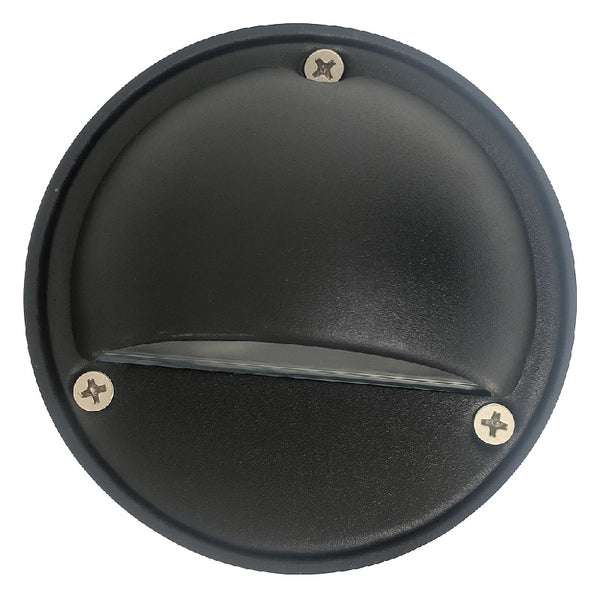

Half-Moon Step Light | 12V T5 Surface Mount Aluminum Outdoor
| SKU(s) | CL-353-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 4" |
| Diameter | 4" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Half-Moon Step Light is a durable and stylish outdoor fixture designed for safe and elegant illumination of steps, pathways, patios, and brick walls. Made from die-cast aluminum with a sleek black finish, this surface-mounted step light combines strength, functionality, and modern design to enhance any exterior space.
The fixture features a frosted, tempered, and heat-resistant glass lens that softens light output while ensuring long-lasting durability against outdoor elements. It comes with a top-grade fixed T5 wedge socket and is compatible with 12V T5 wedge halogen lamps up to 35W (lamp not included). For energy efficiency, it also supports LED lamps with a voltage range of 9–17V.
Prewired with a 3-foot 18-2 SPT2-W direct burial cord, the Half-Moon Step Light ensures reliable connections. Silicone-filled wire nuts (CX-854) are available separately for weatherproof installations. The fixture includes a mounting plate for easy surface installation and is designed exclusively for outdoor use.
This value-grade step light requires a remote 12V transformer (sold separately), offering multiple options to suit different lighting setups. Backed by a one-year manufacturer’s warranty on the fixture housing, the Half-Moon Step Light delivers dependable performance, style, and safety for residential and commercial outdoor applications.
$77.45 /each
| SKU(s) | CL-345-BK |
| Color | Black | Bronze |
| Lamp | 2.5W |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 5-1/2" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 25ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$68.45 /each
| SKU(s) | CL-314-NM |
| Color | Black |
| Lamp | No-Lamp | 6W | 13W |
| Color | Black |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 3-1/2" + 7/8" |
| Diameter | 6-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$84.65 /each
| SKU(s) | CL-637-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 7" |
| Height | 25" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$36.00 /each
| SKU(s) | CL-352-BZ |
| Color | Bronze | White |
| Lamp | No-Lamp | 1.5W |
| Color | White & Bronze |
| Wattage | 1.5W |
| Voltage | 12V |
| Lumens | 120 LM |
| Color Temp | 2700K |
| Width | 4" |
| Length | 4" |
| Height | 4" |
| Diameter | 4" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
