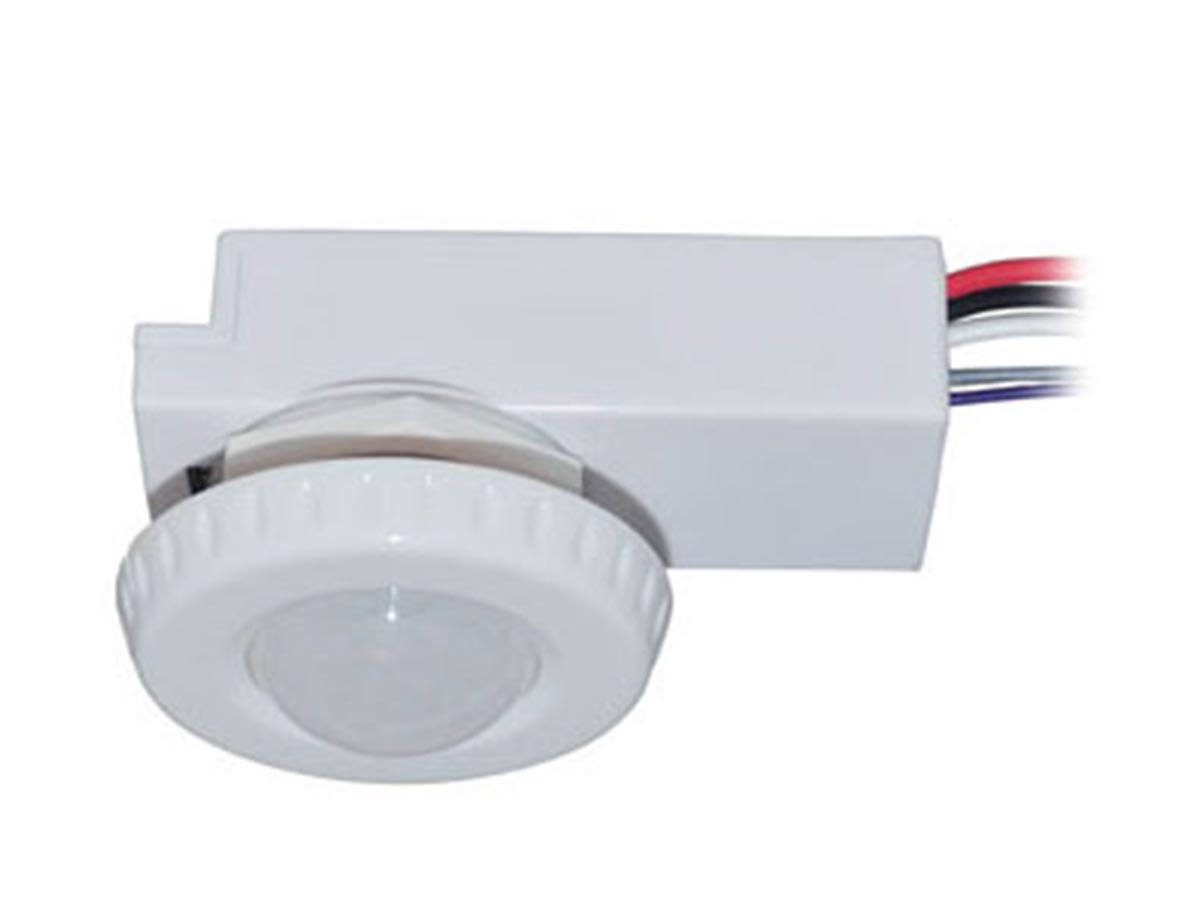

Fixture Integrated PIR Ocuppancy and Daylight Sensor | IP65 | 120/277V | Linmore LED LOCCDIM40

Streamline your commercial facility's energy management strategy with the Linmore LED LOCCDIM40 Fixture Integrated PIR and Daylight Sensor. Engineered as a factory-installed upgrade, this advanced control module arrives pre-wired and nested directly within your lighting fixtures, eliminating the need for costly field labor or extra external junction boxes. The LOCCDIM40 is uniquely optimized for high-clearance environments, boasting a maximum mounting height of 40 feet (12 meters). It delivers fully automated, multi-level On/Off/Dim control based on real-time occupant tracking and ambient light availability, making it an ideal choice for distribution hubs, manufacturing spaces, high-bay warehouses, and vast exterior parking perimeter layouts.

At the core of the LOCCDIM40 is a high-sensitivity Passive Infrared (PIR) detection system. Utilizing a comprehensive 360° coverage pattern, the lens tracks kinetic movement by receiving localized infrared thermal signatures (heat) from people, equipment, or vehicles entering its massive 60-foot (18-meter) radius field of view. To squeeze the maximum energy savings out of every operating hour, the module features an integrated daylight sensor optimized for Daylight Harvesting. When window bays or skylights flood an indoor zone with natural sunshine, the sensor dynamically steps down the fixture's 0-10V driver output, maintaining uniform foot-candles across workspace planes while drastically lowering active utility consumption.

Rugged Construction & Dual Configuration Flexibility:

Molded from high-impact white polycarbonate, the LOCCDIM40 is heavily armored against demanding physical and environmental stressors. It carries a rigorous IP66 environmental rating, certifying complete dust-tight sealing alongside reliable protection against heavy downpours, high-pressure washdowns, and freezing condensation. Operating smoothly across an expansive temperature window from -20°C up to +70°C (-4°F to +158°F), it transitions seamlessly from indoor cold-storage vaults to hot exterior facades. System tuning is incredibly flexible: installers can use onboard integrated dip switches for quick manual adjustments, or opt for a dedicated remote programmer (SEN-PROG, sold separately) to easily modify scenes, sensitivity levels, and step-dim timing from ground level.

Key Features:

• Factory-Preinstalled Integration: Arrives pre-configured directly from the assembly line inside your fixtures, minimizing field errors and speeding up commercial project handoffs.

• Massive 360° Detection Footprint: Offers continuous radial tracking extending out to a 60-foot radius, making it ideal for high-ceiling aisles and wide outdoor paths.

• Intelligent Daylight Harvesting: Constantly samples ambient foot-candles, dimming the parent fixture down when natural lighting is abundant to capture immediate operational savings.

• IP66 Wet & Cold Climate Rated: Sealed against intense moisture and freezing conditions, enabling worry-free deployment in outdoor lots and open-air cargo docks.

• Robust 5-Year Warranty Coverage: Fully backed by a comprehensive 5-year product warranty, ensuring reliable performance in high-use settings.

Technical Specification

Onboard Control Parameter Matrix

The LOCCDIM40 can be adjusted using onboard dip switches or the SEN-PROG wireless remote to match specific facility layouts and traffic patterns:

Approved Fixture Compatibility

The LOCCDIM40 sensor features universal mechanical brackets designed for seamless fit and electrical routing with Linmore LED's core industrial and exterior fixture portfolios:

• Essentials Series 4.0 (ES4): High-efficiency linear industrial models.

• Commercial High Bay (CH2): Round and linear high-ceiling industrial fixtures.

• Site Lighter Area Light (SL1): Premium extruded aluminum outdoor parking lot and area poles.

• Site Lighter Wall Pack (SLW): Perimeter security and building facade structures.
