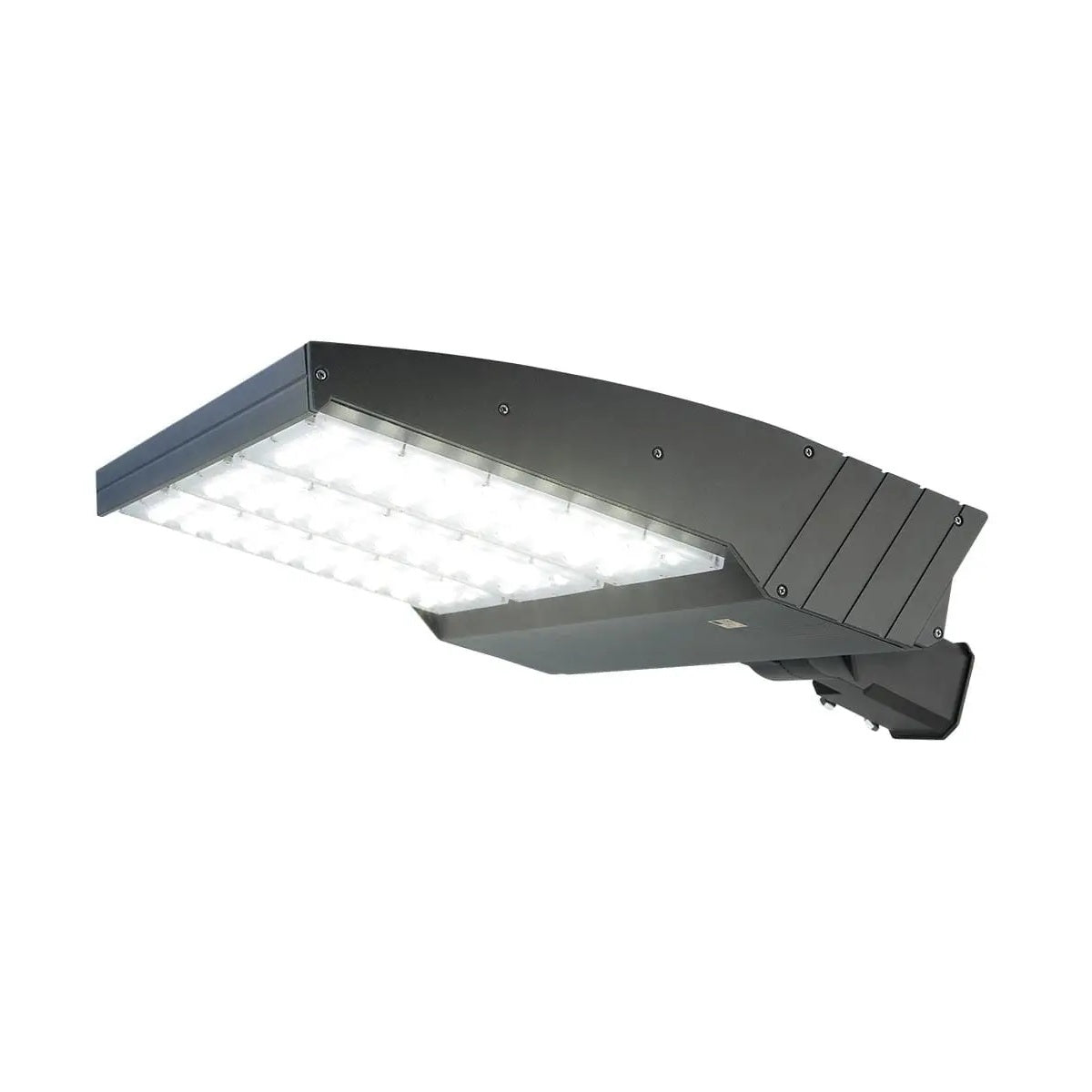

LED Area Light Site Lighter | Small Housing | 12K Lm Max | 100/277V | 5.000K | LinmoreLED LL-SL1

Assembled in the USA

Maximize value, energy efficiency, and modern aesthetics in your exterior commercial environments with the Linmore LED Site Lighter Area Light (SL1). Pushing past the industry standard of typical castings or weldments, the SL1 features a unique, precision-engineered housing crafted from premium extruded aluminum. This advanced material design excels at moving thermal energy away from vital components, maximizing heat dissipation to secure structural longevity and sustained lumen delivery. Beyond its extreme thermal efficiency, the architectural form factor remains sleek, low-profile, and highly attractive, blending smoothly into contemporary commercial plazas, parking layouts, and auto dealerships.

The SL1 series redefines exterior efficiency, boasting a rare tier of performance with an average efficacy of 165 lumens per watt across its model family. This high-level output allows developers to lower standard site lighting wattages drastically while maintaining brilliant, uniform coverage over large ground expanses. Outfitted with UV-stable clear polycarbonate optics, it focuses illumination precisely where it is needed, eliminating wasted spill light and glare. Built to endure the toughest outdoor variables, this fixture incorporates Linmore's proprietary high-reliability drivers to guarantee years of sustainable, trouble-free commercial ownership.

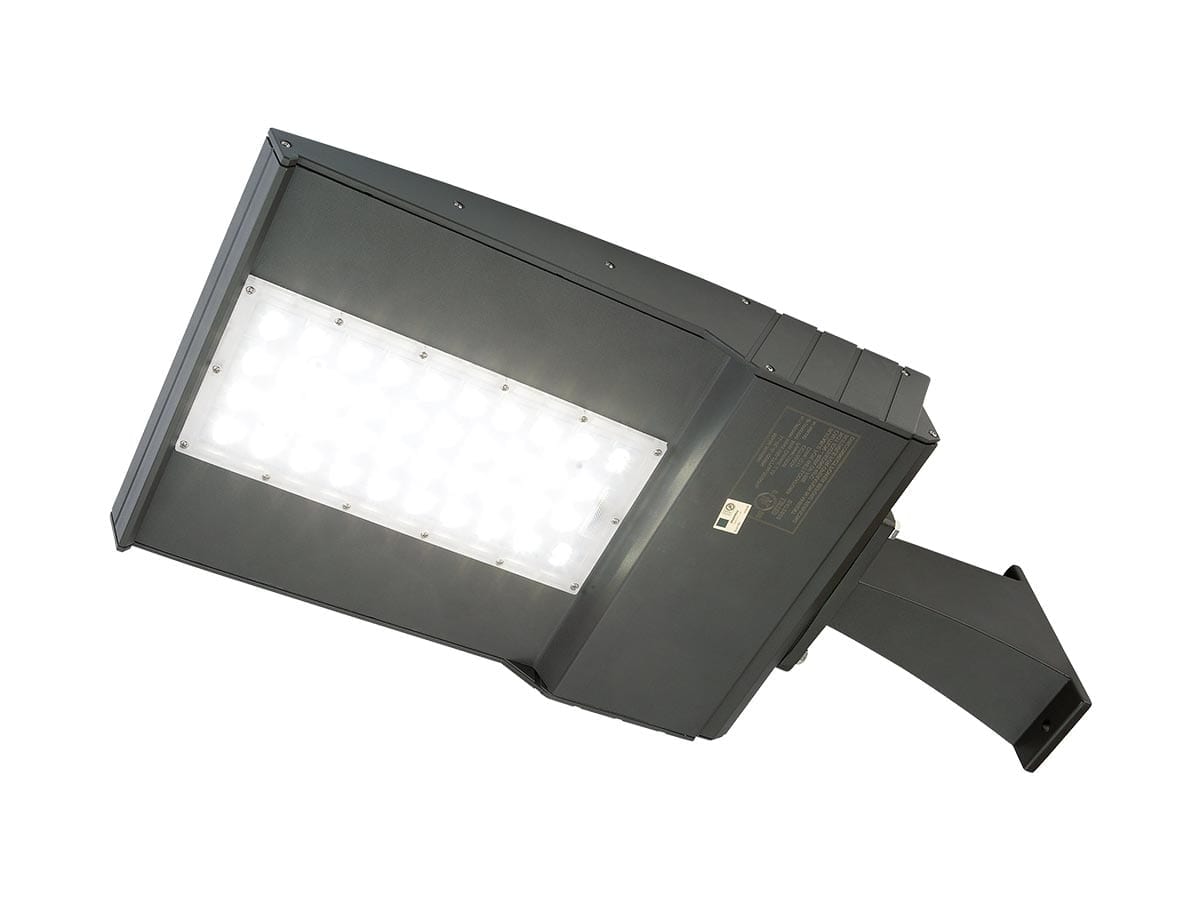

Engineered for Rugged Conditions & Smart Control Integration: The Site Lighter SL1 is fully certified for Wet Locations with a rigorous IP65 environmental protection rating, keeping internal components safe from heavy rain, humidity, and dust entry. It handles challenging seasonal shifts with an extensive ambient operating range spanning from -40°C up to 55°C (-40°F up to 130°F). For simplified jobsite deployments, it features a U.S. Patented Rapid Mount Bracket system, with standard Slip Fitter, Straight Arm, and Trunnion styles available to suit any existing square or round pole infrastructure. Its standard 0-10V "Dim to OFF" driver layout pairs effortlessly with local wireless sensors and advanced network control ecosystems like Avi-on or UltraLink SIG Bluetooth® Mesh networks for smart, scheduled energy management.

Key Features:

• Extruded Aluminum Housing: Superior thermal path layout that manages heat far better than standard cast housings, safeguarding internal electronics.

• Rare Tier-1 Energy Efficiency: Delivers a remarkable average of 165 lm/W, providing immense utility rebates and massive operational energy savings.

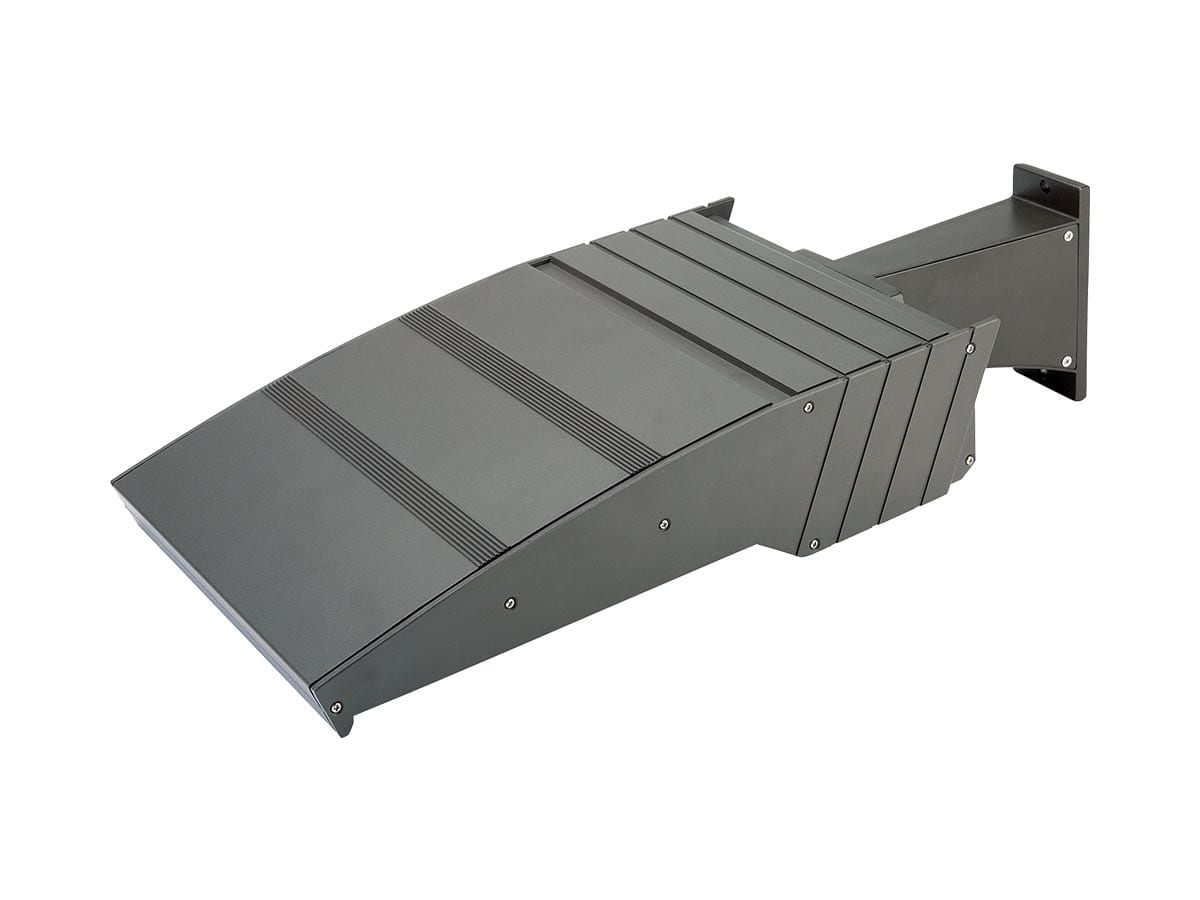

• Heavy-Duty Protective Finishes: Coated in a robust commercial powder coat, with Bronze (BRN), White, and Black available as standard options.

• Industry-Leading 10-Year Warranty: Fully backed by an exceptional 10-year comprehensive product warranty covering the complete housing, LEDs, and integrated Linmore driver.

• Assembled in the USA: Built, tested, and assembled locally in compliance with strict BAA/TAA procurement requirements.

Available in 2200K, 2800K (turtle-friendly), 3000K, 3500K, 4000K, and 5000K. (2200K and 2800K not DLC Qualified, Extended Lead Time).

Technical Specification
