Louver Step Light Aluminum | Outdoor Value Grade | 12V T5
| SKU(s) | CL-352-BZ |
| Color | Bronze | White |
| Lamp | No-Lamp | 1.5W |
| Color | White & Bronze |
| Wattage | 1.5W |
| Voltage | 12V |
| Lumens | 120 LM |
| Color Temp | 2700K |
| Width | 4" |
| Length | 4" |
| Height | 4" |
| Diameter | 4" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

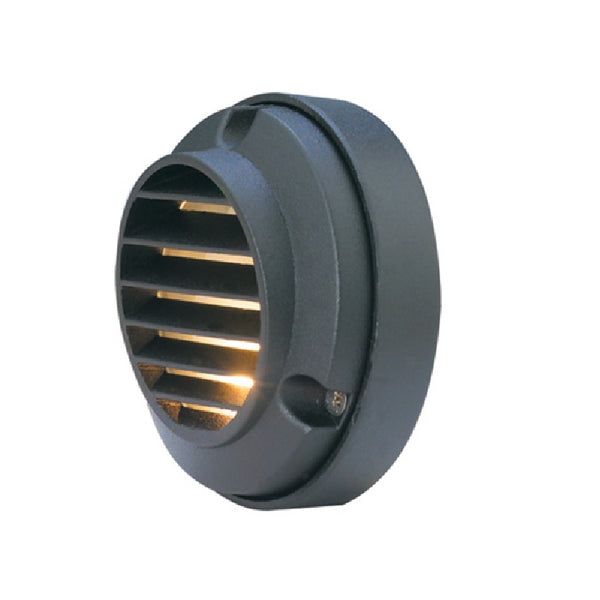

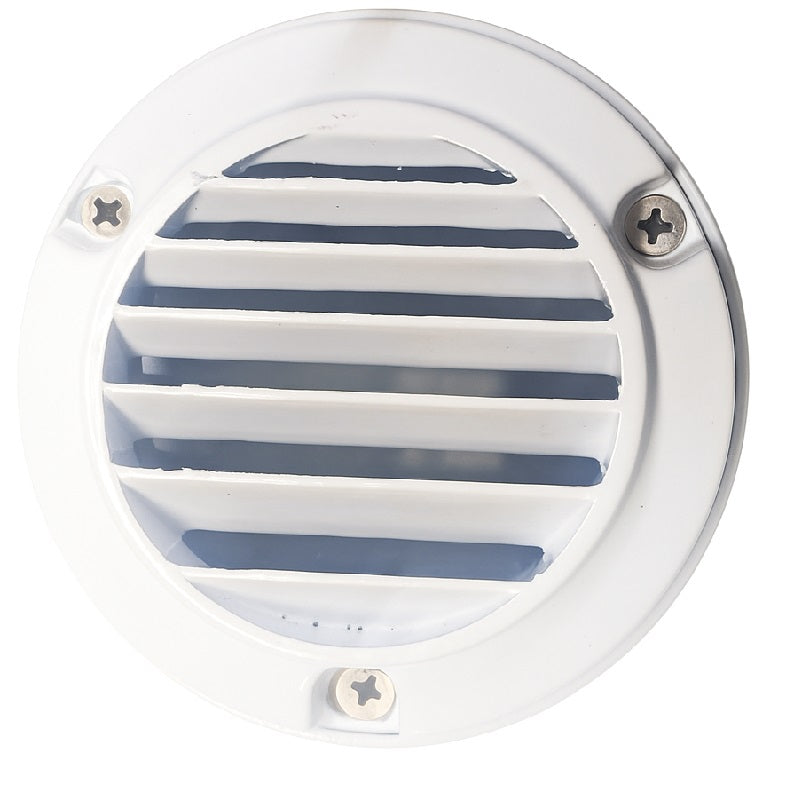

The Louver Step Light is designed to provide both safety and style for stairs, walkways, and outdoor spaces, delivering functional illumination with a sleek architectural look. Built from die-cast aluminum, this step light is available in Bronze and White finishes, making it versatile for residential and commercial landscape projects.
Its frosted, tempered, and heat-resistant glass lens ensures even light diffusion while being securely sealed with a gasket for maximum protection against moisture and dust.
This fixture is equipped with a premium T5 Wedge socket, compatible with 12V T5 Wedge halogen lamps up to 35W (lamp not included), and is also LED compatible within a voltage range of 9-17V. A remote 12V transformer is required for operation (sold separately).
The light comes prewired with a 3ft 18-2 SPT2-W direct burial cord, ensuring durability in outdoor installations. Wire connectors are sold separately, with optional silicone-filled wire nuts (CX-854) available for added protection.
Installation is simple thanks to its surface mount design with included mounting plate, suitable for outdoor use only.
✔️ Key Features:
Material: Die-cast aluminum
Finishes: Bronze & White
Lens: Frosted, tempered, and heat-resistant glass with gasket seal
Socket: High-grade T5 Wedge socket
Lamp: 12V, T5 Wedge, up to 35W (halogen max) – LED compatible (9-17V)
Wiring: 3ft 18-2 SPT2-W direct burial cord
Mounting: Surface mount, plate included
Application: Outdoor only
Grade: Value
Warranty: 1-year manufacturer’s warranty on housing (from invoice date)
The Louver Step Light in aluminum is a reliable and stylish solution for outdoor step and pathway lighting, combining durability, efficiency, and architectural appeal.
$36.00 /each

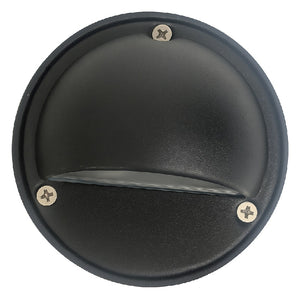

| SKU(s) | CL-353-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 4" |
| Diameter | 4" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$100.85 /each
| SKU(s) | CL-301-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 14-1/2" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$68.45 /each
| SKU(s) | CL-314-NM |
| Color | Black |
| Lamp | No-Lamp | 6W | 13W |
| Color | Black |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 3-1/2" + 7/8" |
| Diameter | 6-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$54.00 /each
| SKU(s) | T-FIT |
| Color | Black |
| Wattage | 1125 Watts |
| Voltage | 125 VAC, 60 Hz |
| Width | 3-1/2" |
| Height | 1-1/4" |
| Certs |
|
|
View Spec Sheet
|
