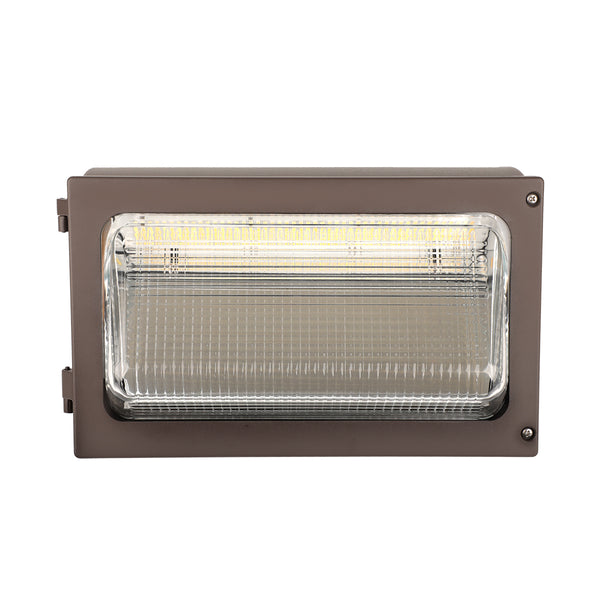

LED Traditional Wall Pack | Lumen & CCT Selectable
LED Traditional Wall Pack | Lumen & CCT Selectable

LED Traditional Wall Pack | Lumen & CCT Selectable

$119.99 / ea

SKU(s) WPT-7L-LKFS
Lumen 7000Lm | 10000Lm | 15000Lm
Wattage 30W - 50W (Selectable)
Voltage 120-277V
Lumens 7000Lm - 15000Lm (Selectable)
Color Temp Selectable
Efficacy 150 Lm / W
CRI 70+ CRI
Width 9"
Length 14"
Height 5"
LED Life 130,000 Hours @ L70
Certs UL Listed DLC Certified IP65 Certified FCC Certified
View Specification Sheet View Spec Sheet
SKU: WPT-7L-LKFS
Category: Wall Packs
Shipping/Return Policy

Product Description

▪ Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide at least 70% of initial lumen output (L70) for
> 130,000 hours of operation, and at least 90% of initial lumen output (L90) for > 139,000 hours of operation.*
▪ LED chromaticity based on < 5-step ANSI quadrangles.
▪ LED color maintenance < 0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
▪ Provides a range of 4,300 to 15,500 nominal lumens and 124 to 159 nominal lumens per watt (lm/W).
▪ 0-10vdc dimming drivers are standard.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index (Ra) > 70.
▪ Cast aluminum housing with dark bronze, powder coat finish.
▪ Glass lens.
▪ Three ½” NPT threaded openings.
▪ Easy installation in new construction or retrofit applications.
▪ cULus listed for wet locations in ambient temperatures from - 40°C to 40°C (-40°F to 104°F).1
▪ IP65 rated for ingress protection.
▪ DLC premium approved.
▪ Complies with FCC Part 15, class A.
▪ Surge protection = 4kV.
▪ 5-year warranty of all electronics and housing.
* Contact factory for other color temperatures and lumen packages.
** L70 & L90 hours are IES TM-21-11 calculated hours.
