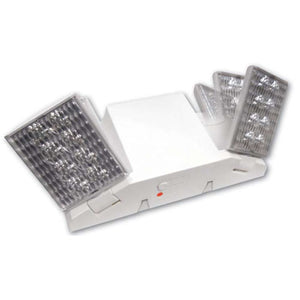

LED Recessed Emergency Unit

• Ultra-bright, energy efficient, long-life White LED adjustable lamp heads provide up to 50-ft center-to-center spacing with a 3-ft path of egress at 12-ft mounting height.
• 1.0 watt (1 LED x 1.0 watt) per head.
• Unique all-inclusive lamp, reflector, and lens assembly.
• Universal 120-277 voltage.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 4.8V long-life, maintenance-free, rechargeable nickel metal hydride battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Bar hangers included are compatible with drywall or drop ceiling mount installations.
• Injection-molded, engineering grade, 5VA flame retardant, impact-resistant, thermoplastic in white or black finish.
• Injection-molded, engineering grade, 5VA flame retardant, thermoplastic oval and rectangle trim plates in white or black finish included.
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
• Five-year warranty on all electronics and housing. Battery pro rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations.(10°C – 50°C)
• Certified to CEC under title 20 regulations.
