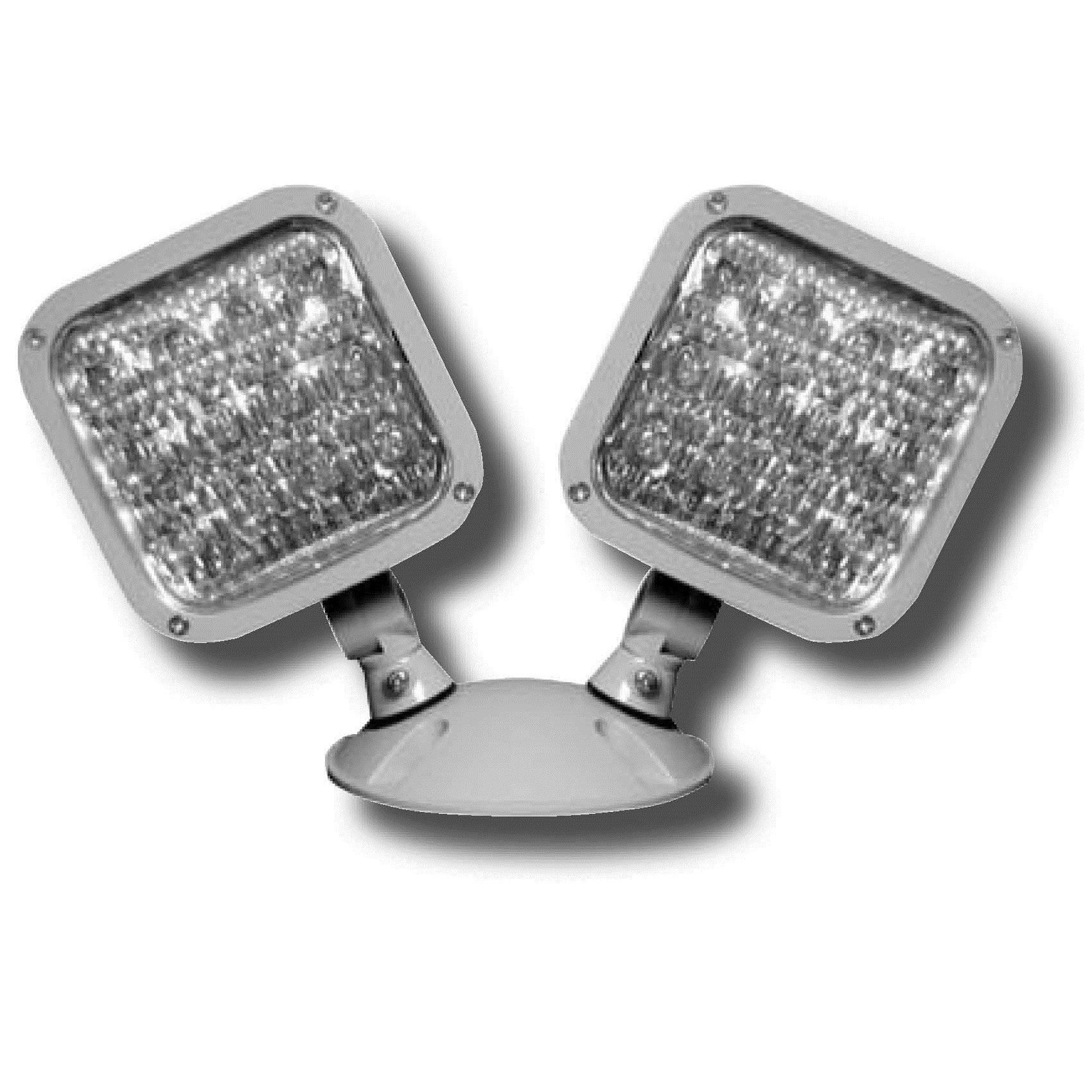

LED Emergency Lighting Outdoor | Die-Cast/Polycarbonate | Multivolt

Overview:
The RHLED Outdoor Remote Head is a high-performance, weather-resistant emergency lighting solution built to deliver bright, reliable illumination in harsh environments. Its rugged polycarbonate or die-cast aluminum housing ensures long-lasting durability, while high-efficiency LEDs provide maximum visibility and minimal energy consumption.

Illumination:

• Ultra-bright white LED lamp heads for dependable outdoor emergency lighting.

• 1.0W per head (8 LEDs x 0.125W) for efficient light output.

• Optional high-lumen version (1.5W per head, 12 LEDs) provides extended center-to-center coverage.

• Chrome-plated metallized reflector and tempered glass lens ensure even, wide light distribution.

• Adjustable LED heads allow for directional illumination and optimal spacing.

Construction:

• Available in impact-resistant polycarbonate or die-cast aluminum housing for superior outdoor durability.

• Weather-sealed enclosure protects against moisture, dust, and corrosion.

• Glass lens provides UV stability and resists yellowing or cracking over time.

Electrical:

• Low-voltage operation, powered from a compatible remote power source (not included).

• Low-voltage wiring required (not included).

• System design should consider wire gauge, voltage, and total wattage to ensure proper illumination.

Mounting:

• Includes universal mounting adapter plate for easy installation to a single-gang switch box.

• Suitable for wall or ceiling mount applications.

Applications:
Ideal for outdoor corridors, building perimeters, parking structures, canopies, and industrial areas requiring reliable, energy-efficient remote emergency lighting.

Certifications & Compliance:

• UL Listed for Wet Locations

• Meets NFPA 101, NEC, and OSHA emergency lighting requirements

Warranty:

• Five-year limited warranty on electronics and housing
