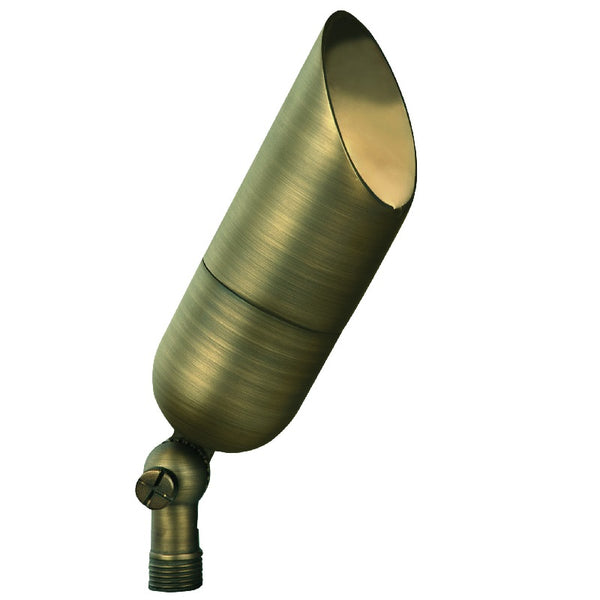

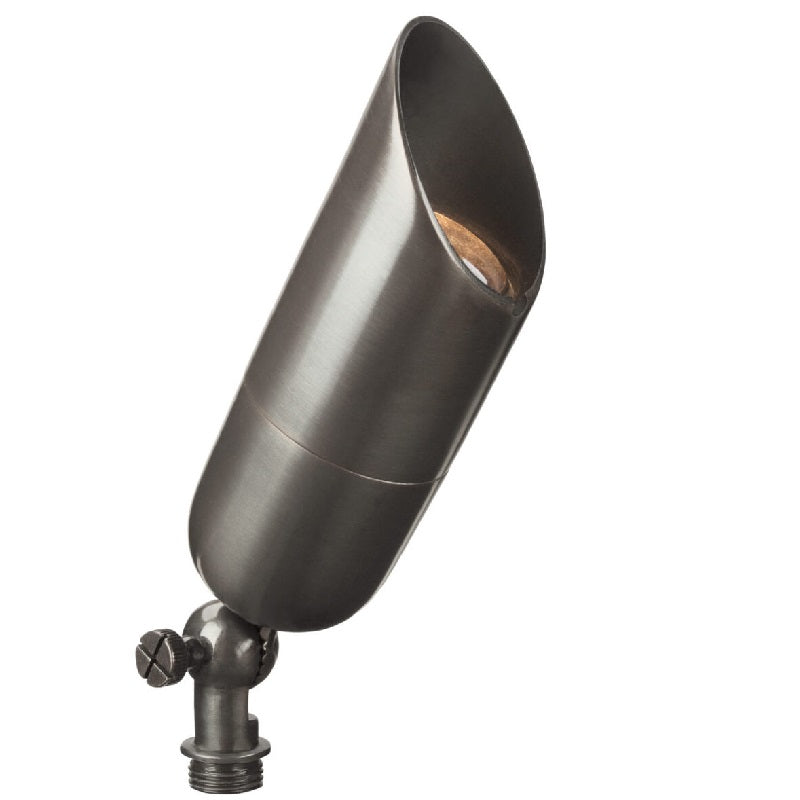

Brass Architectural Bullet Uplight | 12V MR16 Adjustable knuckle
| SKU(s) | CL-528B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Gun Metal |
| Wattage | 3.5 & 5W |
| Voltage | 12V |
| Lumens | 270LM & 470LM |
| Color Temp | 2700K & 3000K |
| Width | 2-1/4" |
| Length | 6-1/4" |
| Height | 8-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
 View Spec Sheet
|
|
|
View Installation Guide
|
Upgrade your outdoor lighting with this Architectural Brass Bullet Light, designed for long-lasting performance and timeless style. Available in elegant Antique Bronze and Gun Metal finishes, this fixture is ideal for landscape uplighting applications such as trees, walls, and architectural features.
Crafted from corrosion-resistant cast brass, the housing features a turn-and-lock shroud with a silicone O-ring gasket and a clear, heat-resistant convex glass lens. It includes a top-grade fixed ceramic bi-pin socket with a retention clip for secure MR16 lamp placement (lamp not included). Rated for 12V operation, it supports halogen lamps up to 35W or LED lamps within a 9V–17V range.
The fixture comes prewired with a 3-foot 18-2 SPT2-W direct burial cord. A universal connector (CX-839) or silicone-filled wire nut (CX-854) is available separately. The adjustable brass knuckle with a thumb screw and ½" NPT male hub allows flexible aiming. It mounts securely with a standard ground spike and ½" NPT female hub.
Warranty: Limited lifetime warranty on the brass housing.
Note: Requires a remote 12V transformer (sold separately). Visit our Transformers & Accessories page for more options.
$75.65 /each
| SKU(s) | CL-372B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Height | 2-5/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$133.25 /each
| SKU(s) | CL-394B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$95.45 /each
| SKU(s) | CL-540C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 8-1/2" |
| Diameter | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
