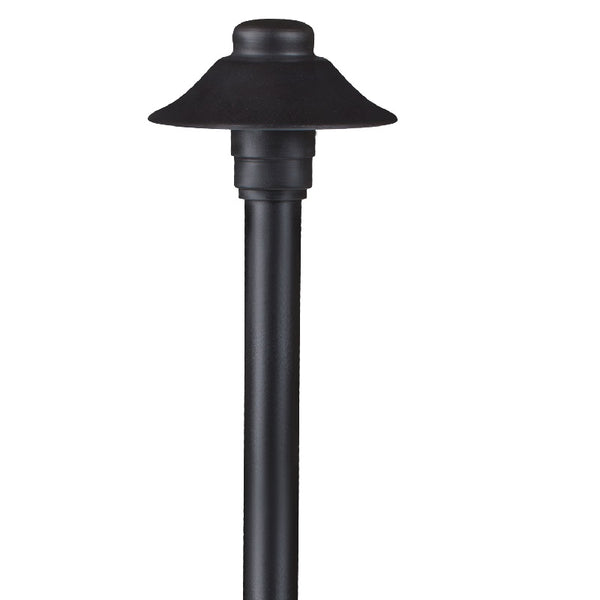

Mini Umbrella Path Light with 18″ Stem | Aluminum 12V T3
| SKU(s) | CL-638-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 21" |
| Diameter | 4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

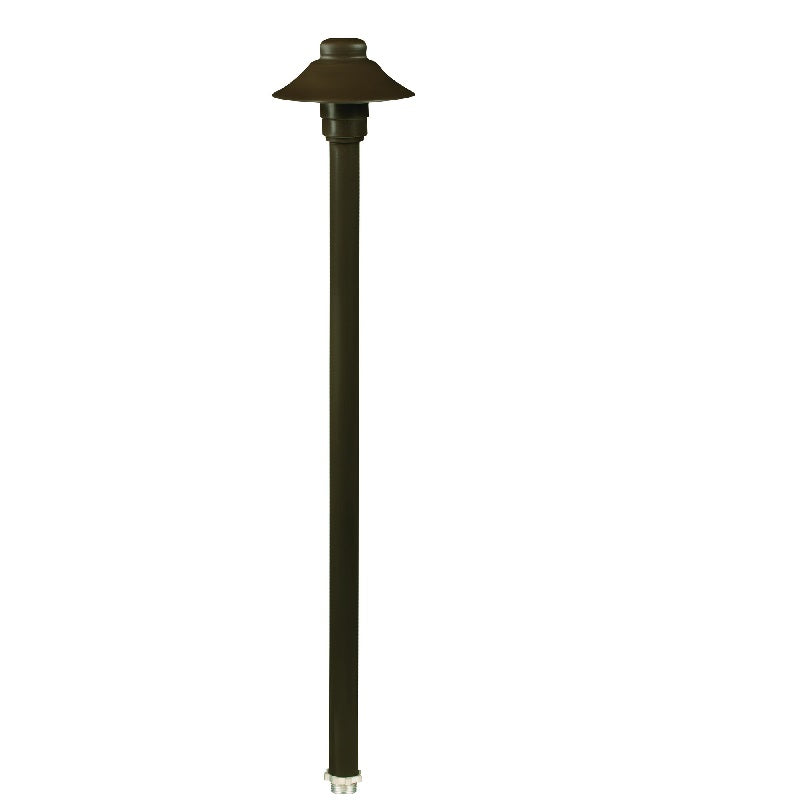

The Mini Umbrella 18″ Stem Path Light offers classic styling and reliable performance for illuminating walkways, gardens, patios, and landscaped areas. Built from die-cast aluminum with a durable 18-inch stem, this architectural-grade fixture provides both strength and elegance for residential and commercial outdoor lighting projects.
Featuring a clear tempered glass lens with water protection cover, this fixture ensures long-lasting durability and consistent light distribution, even in sprinkler-exposed areas. Its ceramic bi-pin socket allows for quick, tool-free lamp installation, supporting 12V T3 lamps up to 20W halogen or LED equivalents.
Prewired with a 3-ft 18-2 SPT2-W direct burial cord, the fixture is designed for fast, hassle-free setup. It mounts easily with a sturdy injection-molded ground spike with ½” NPT threaded female hub for secure installation.
✔ Available in Black or Bronze finishes
✔ Die-cast aluminum housing with 18″ stem for durability
✔ Clear tempered glass lens with sprinkler protection
✔ Fixed ceramic bi-pin socket with tool-free lamp access
✔ Supports 12V T3 lamps, 20W halogen max / LED equivalent
✔ Prewired 3-ft direct burial cord for easy installation
✔ Injection-molded ground spike with ½” NPT threaded hub
✔ Voltage range: 9V–17V | Requires 12V remote transformer
✔ 5-year warranty on fixture housing against defects
$84.65 /each
| SKU(s) | CL-637-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 7" |
| Height | 25" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$84.65 /each
| SKU(s) | CL-708-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/4" |
| Length | 4-3/4" |
| Height | 20" |
| Diameter | 4-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$32.45 /each
| SKU(s) | CL-505-BK |
| Color | Black | Bronze | Granite | Rust | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Granite, Rust, White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 9.25" |
| Diameter | 2-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$225.00 /each
| SKU(s) | CL-723-T-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
