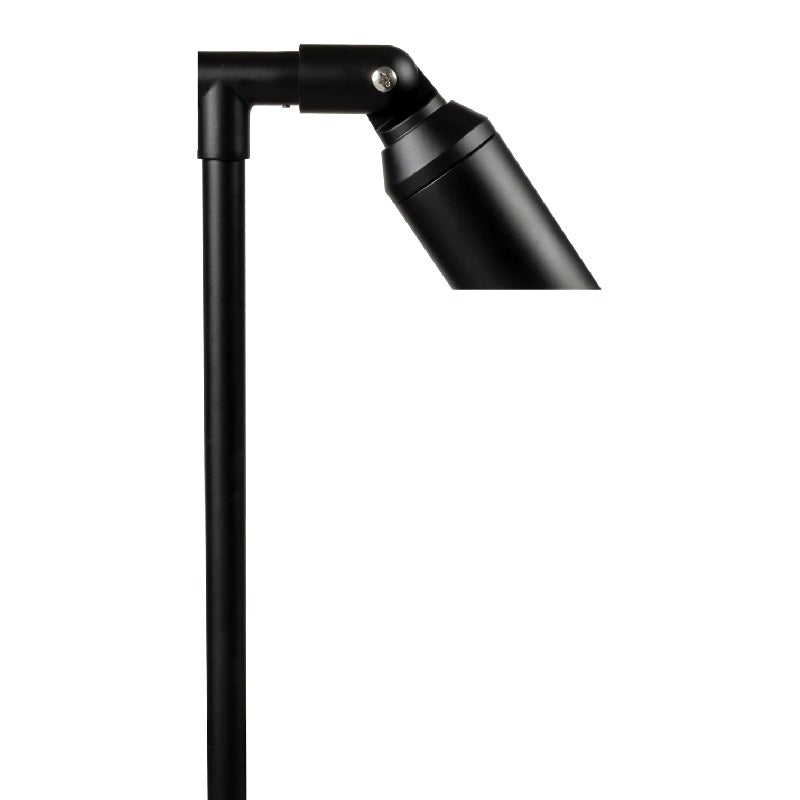

Machined Aluminum Path Light 18″ & 24″ Stem | MR-16 LED
| SKU(s) | CL-720-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

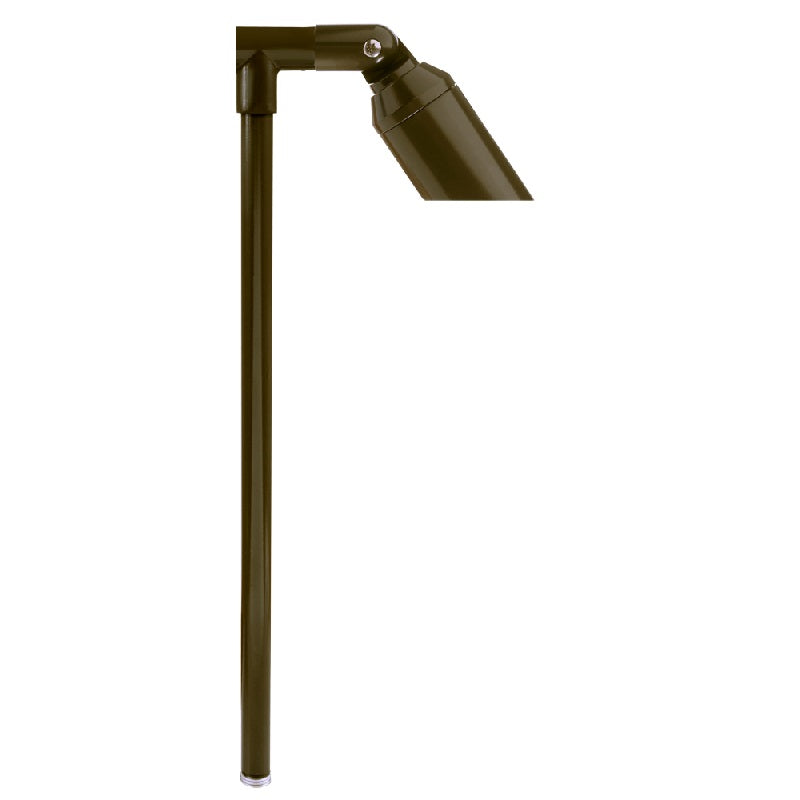

The Machined Aluminum Path Light is a premium architectural outdoor lighting fixture designed for performance, durability, and sleek aesthetics. Available in Black or Bronze finishes and your choice of 18″ or 24″ stem height, this path light is ideal for illuminating walkways, gardens, driveways, and landscaped areas with precision and style.
Crafted from corrosion-resistant 6061 extruded aluminum, the fixture provides superior strength and long-lasting durability. A clear, heat-resistant tempered glass lens protects the light source, while the top-grade ceramic bi-pin socket with retention clip ensures a secure lamp fit.
This path light is designed for 12V MR-16 LED lamps (available in 3.5W, 5W, or 6W options, or fixture-only without lamp). It comes prewired with a 3-ft 18-2 SPT1-W direct burial cord and underground connectors, making installation efficient and reliable.
An adjustable machined aluminum knuckle with stainless steel screw provides precise aiming, while the 8½″ slotted black ABS ground spike with ½″ NPT male hub ensures stable mounting in various outdoor settings.
✔ Available in 18″ or 24″ stem heights
✔ Black or Bronze finish for versatile landscape design
✔ 6061 extruded aluminum housing with superior corrosion resistance
✔ Heat-resistant tempered flat glass lens for lamp protection
✔ Supports MR-16 LED lamps (3.5W, 5W, 6W) or no-lamp option
✔ Adjustable aluminum knuckle with stainless screw for easy aiming
✔ Prewired with 3-ft burial cord + connectors for quick installation
✔ Voltage range: 9V–17V | Requires 12V transformer
✔ 10-year warranty on fixture housing against defects
$196.25 /each
| SKU(s) | CL-652-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 5-1/4" |
| Length | 5-1/4" |
| Height | 17-1/2" / 23-1/2" |
| Diameter | 5-1/4" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$235.85 /each
| SKU(s) | CL-654-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-7/8" |
| Length | 7-7/8" |
| Height | 18" / 24" |
| Diameter | 7-7/8" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$217.85 /each
| SKU(s) | CL-651-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 17" / 23" |
| Diameter | 6-3/4" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$315.00 /each
| SKU(s) | CL-744-BT-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
