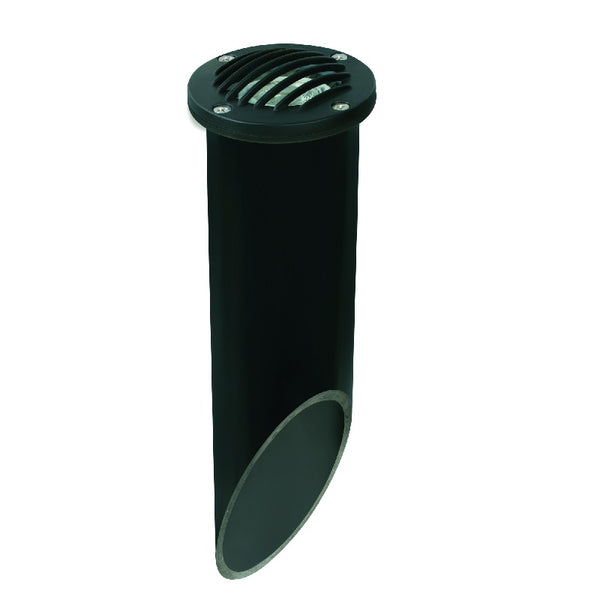

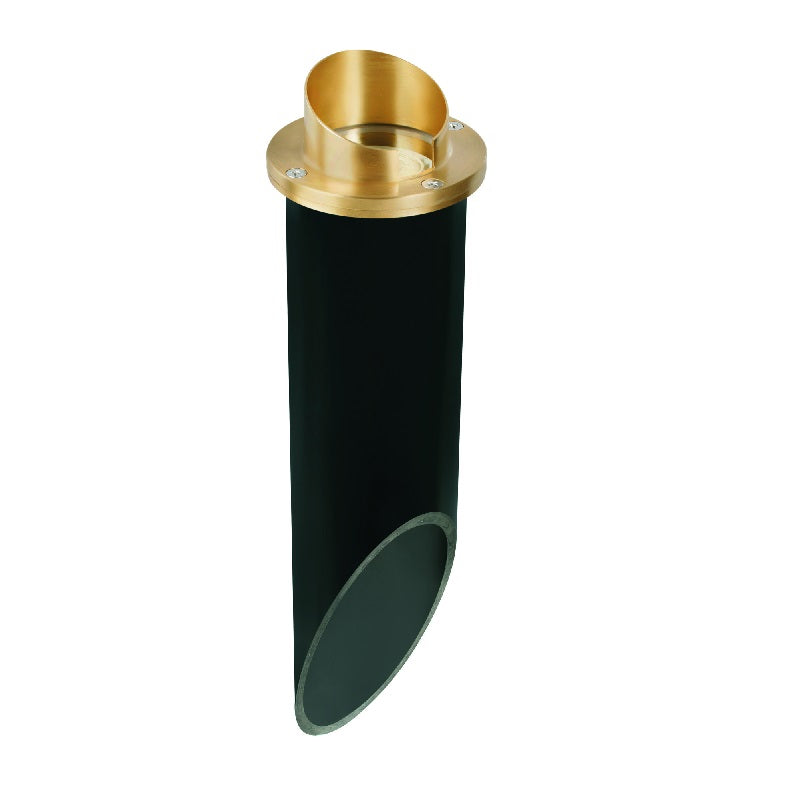

Louvered Well Light with PVC Sleeve | MR-16 In-Ground
| SKU(s) | CL-303-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 15" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Louvered Well Light with PVC Sleeve offers durable, low-profile in-ground lighting with a louvered faceplate designed to minimize glare and provide subtle, directional illumination. Ideal for landscaping, walkways, trees, and architectural accents, this fixture combines functionality with aesthetic appeal.
Crafted from die-cast aluminum, composite, or natural brass, the housing is mounted securely with tension clips inside a PVC sleeve for long-lasting support. Its clear, tempered, heat-resistant glass lens ensures lamp protection while delivering consistent light output.
The top-grade ceramic bi-pin socket with retention clip provides a secure lamp fit, while the fixture’s prewired 3-ft 18-2 SJT-W direct burial cord ensures easy installation (connectors available separately).
✔ Available in Aluminum, Composite, or Natural Brass housings
✔ Finishes: Black or Natural Brass
✔ PVC Sleeve included for in-ground direct burial or concrete encasement
✔ Louvered design reduces glare and enhances light control
✔ Compatible with 12V MR-16 lamps (LED or halogen, up to 50W max)
✔ Voltage range: 9V–17V | Requires a remote 12V transformer
✔ One-year warranty against manufacturer defects
$234.00 /each
| SKU(s) | CL-106-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 4-3/4" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
$205.25 /each
| SKU(s) | CL-720-T-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$198.00 /each
| SKU(s) | CL-750-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 9.5" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$79.25 /each
| SKU(s) | CX-BTE |
| Color | Black |
| Voltage | 9V-17V |
| Width | 2" |
| Length | 2-1/2" |
| Height | 9-1/2" |
| Wire | 5ft UL listed SPT-1W |
| Certs |
|
|
View Installation Guide
|
