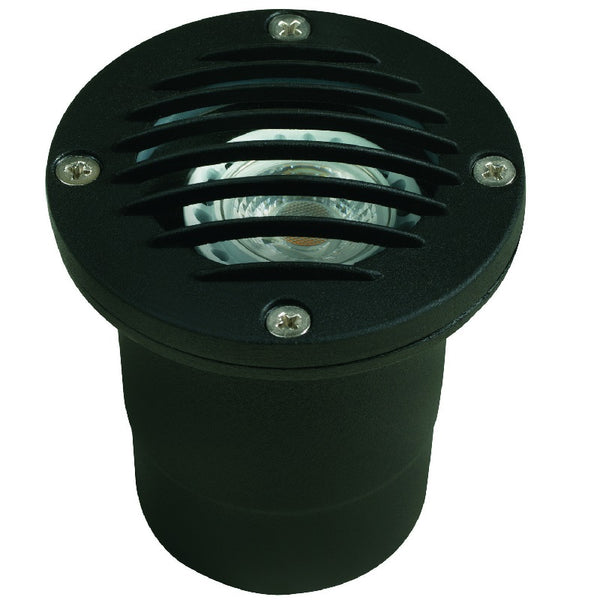

Louvered Well Light | Black & Brass Finishes | 12V MR-16
| SKU(s) | CL-326-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 3-3/4" |
| Diameter | 3-7/8" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Louvered Well Light is a durable in-ground landscape lighting fixture designed for subtle illumination with enhanced glare control, making it ideal for walkways, driveways, patios, gardens, and architectural accents. Available in aluminum, composite, or natural brass housings with black and natural brass finishes, this fixture combines versatility, durability, and aesthetic appeal.
The fixture features a louvered design that directs and softens light output, reducing glare while providing an elegant wash of illumination across the landscape. It is equipped with a clear, tempered, heat-resistant glass lens sealed with a silicone gasket for maximum protection against outdoor conditions.
A high-quality ceramic bi-pin socket with retention clip ensures secure lamp placement. Compatible with 12V MR-16 lamps up to 50W (halogen), the Louvered Well Light also supports LED MR-16 lamps within a 9–17V operating range, offering energy-efficient performance without sacrificing brightness.
Prewired with a 3-foot 18-2 SPT2-W direct burial cord, the fixture allows easy installation. Optional connectors, including the CX-839 universal connector or CX-854 silicone-filled wire nut, can be ordered separately for weatherproof wiring.
Designed for direct burial or concrete encasement, this fixture requires a remote 12V transformer (sold separately).
The one-year warranty on the housing ensures peace of mind, delivering reliable performance and long-lasting outdoor lighting at a value grade.
$84.65 /each
| SKU(s) | CL-325-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 5" |
| Diameter | 3-7/8" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$68.45 /each
| SKU(s) | CL-314-NM |
| Color | Black |
| Lamp | No-Lamp | 6W | 13W |
| Color | Black |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 3-1/2" + 7/8" |
| Diameter | 6-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$133.25 /each
| SKU(s) | CL-720-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$79.25 /each
| SKU(s) | CL-631-VG |
| Color | Green |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Green |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 30" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
