Underwater MR-16 Brass Light | 30′ Cord 12V
| SKU(s) | CL-311-AB |
| Color | Antique Bronze | Natural Brass |
| Size | 30" |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-1/2" |
| Length | 3-1/2" |
| Height | 2-3/4" |
| Diameter | 3-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

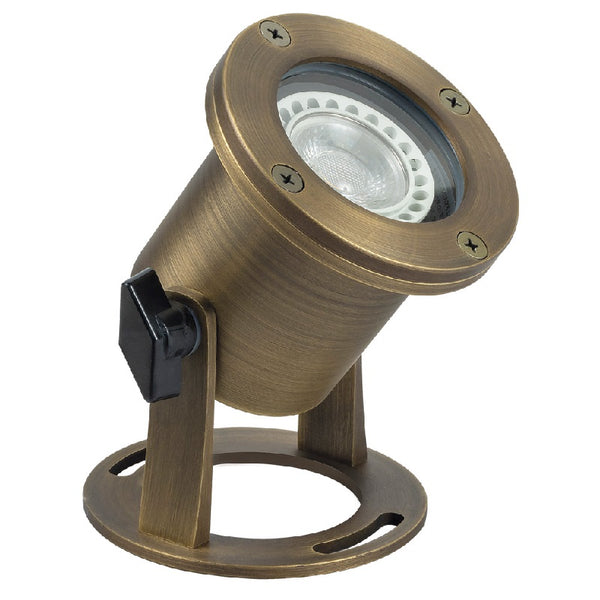

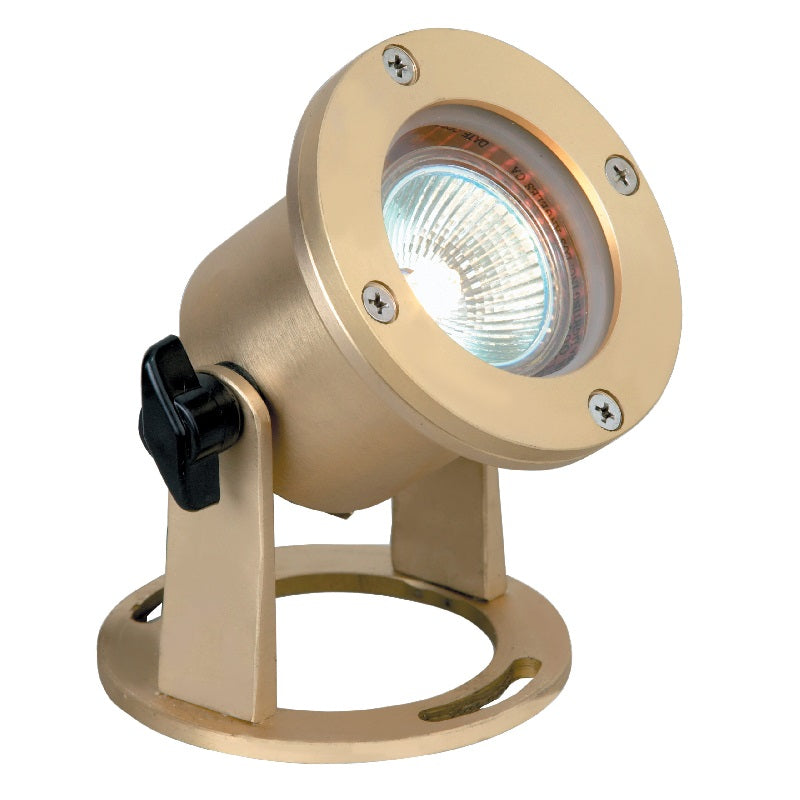

The Hooded Underwater MR-16 Light is a premium-grade architectural submersible fixture designed for ponds, fountains, and water features. Built with solid corrosion-resistant cast brass and finished in Antique Bronze, it delivers long-lasting performance and a timeless aesthetic that blends naturally with aquatic environments.
The integrated hooded design helps reduce glare while focusing illumination exactly where it’s needed, making it ideal for highlighting fountains, waterfalls, and underwater landscapes. Its clear tempered glass lens ensures durability against heat and impact, while the spring-loaded ceramic bi-pin socket securely accommodates MR-16 lamps (12V, 50W halogen max). Compatible with LED MR-16 lamps, this fixture offers energy-efficient underwater lighting solutions.
Equipped with a water-resistant 18-2 SJT-W cord, available in 30′ length, it provides flexibility for installations of different depths and distances. The heavy-duty brass mounting bracket with adjustable arms and thumb screws ensures stability and precise aiming underwater.
Key Features:
Material: Cast brass, corrosion-resistant
Finish: Antique Bronze
Design: Hooded shroud for glare control and focused light
Lamp Type: MR-16, 12V, 50W max | LED MR-16 compatible
Lens: Clear, heat-resistant tempered glass
Socket: Spring-loaded ceramic bi-pin socket
Wiring: 18-2 SJT-W waterproof cord (30′ standard, 50′ & 100′ optional)
Mounting: Adjustable brass bracket with thumb screws for stability and light aiming
Electrical: Operates on 12V low-voltage systems, 9–17V LED range; transformer required
Warranty: Limited lifetime warranty on brass housing
This hooded underwater brass light is perfect for creating dramatic underwater effects in ponds, pools, and fountains, while ensuring durability and professional-grade performance.
$49.55 /each
| SKU(s) | CL-362-BK |
| Color | Black | Rust | White | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze, Rust & White |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-3/4" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$158.45 /each
| SKU(s) | CL-222-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 210LM |
| Color Temp | 3000K |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 5-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$180.00 /each
| SKU(s) | CL-308-AB |
| Color | Antique Bronze |
| Size | 30" | 50" | 100" |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 4-1/2" |
| Length | 4" |
| Height | 5-3/4" |
| Diameter | 4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$70.25 /each
| SKU(s) | CL-366-RT |
| Color | Rust | White | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Bronze, Rust & White |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8" |
| Height | 2" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
