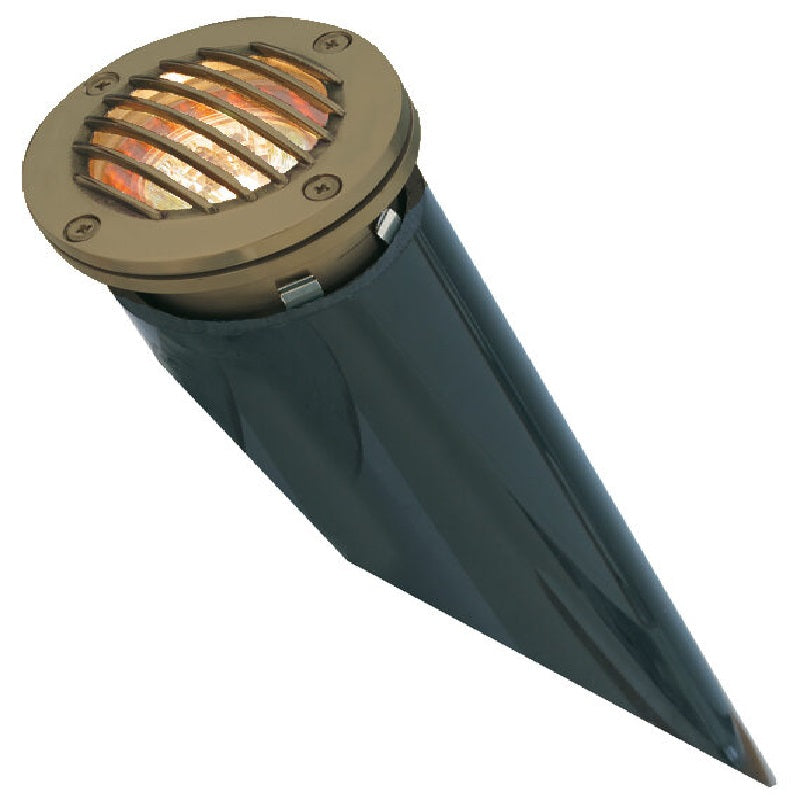

Louvered In-Ground Well Light with PVC Sleeve | MR16 12V
| SKU(s) | CL-203-AB |
| Color | Antique Bronze | Stainless Steel |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Stainless Steel |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K & 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 15-3/4" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Louvered Well Light with PVC Sleeve is a premium in-ground landscape lighting fixture designed to deliver glare-free, directional lighting with architectural elegance and durability. Built from solid cast brass with an antique bronze finish or 316 marine-grade stainless steel, it offers exceptional resistance to corrosion—perfect for harsh outdoor or coastal environments.
This louvered version features a protective glare-reducing shield, ideal for softly illuminating paths, walls, signage, and focal points without harsh brightness. The fixture is compatible with MR16 12V lamps (50W max) and includes a 3-foot prewired direct burial cord for easy installation.
The fixture installs via a durable PVC mounting sleeve, reinforced with stainless steel retention clips, allowing secure in-ground or concrete encasement mounting. The clear, heat-resistant convex glass lens ensures optical clarity and includes an extra flat lens for customizable light diffusion. The ceramic bi-pin socket with a retention clip ensures secure lamp placement.
The voltage range of 9V–17V supports LED lamps, and the fixture is compatible with standard low-voltage transformers. This architectural-grade well light is backed by a limited lifetime warranty, making it a reliable choice for any professional landscape lighting design.
$108.00 /each
| SKU(s) | CL-374B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8" |
| Height | 2-5/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | CL-343B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-3/8" |
| Length | 3-3/8" |
| Height | 3-3/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$100.85 /each
| SKU(s) | CL-541C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 8-1/2" |
| Diameter | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | CL-342B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-3/8" |
| Length | 3-3/8" |
| Height | 3-3/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
