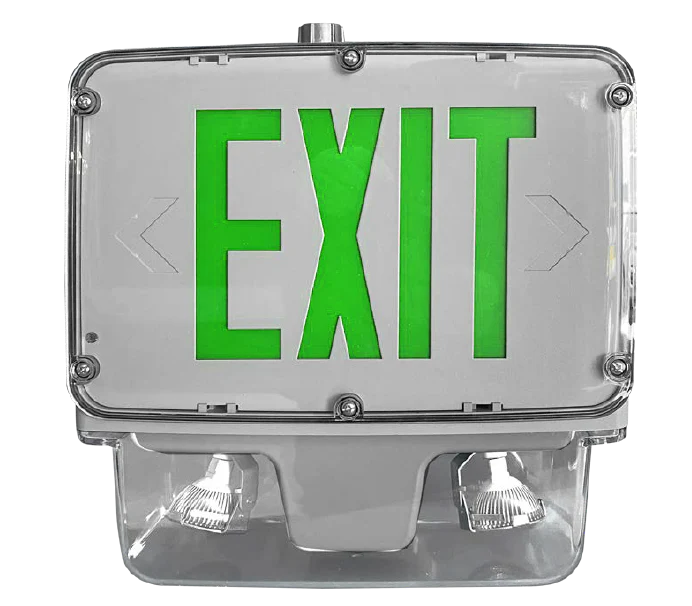

The All LED Hazardous Location Exit & Emergency Combo HLCWLEZU is a high-performance, industrial-grade safety lighting solution designed for the most demanding and hazardous environments. Engineered for reliability in locations where flammable gases, vapors, or harsh conditions may exist, this unit delivers superior visibility, durability, and full code compliance.

Equipped with two fully adjustable, ultra-bright 3.3W MR-16 LED lamp heads, the HLCWLEZU provides optimized illumination and improved center-to-center spacing for effective emergency egress lighting. The high-efficiency LED exit sign offers long-life red or green selectable illumination, ensuring clear visibility and adaptability to various code requirements.

Built for hazardous environments, the unit is designed with a rugged housing and includes gasketed universal knockout backplate for watertight wall installation. A polycarbonate mounting canopy is included, allowing flexible top or end mounting configurations.

For emergency reliability (EM models), the system incorporates a maintenance-free rechargeable battery system—available in 6V/12V NiCd or sealed lead-acid configurations depending on wattage model. The unit provides a minimum of 90 minutes of emergency illumination, ensuring safe evacuation during power loss.

A key feature of the HLCWLEZU is its bi-color LED status indicator, which displays system condition (green for normal operation, red for battery check), along with a charge rate/power ON indicator. A magnetic test switch allows easy compliance testing without opening the unit.

The internal solid-state transfer switch ensures seamless transition to emergency mode, while the fully automatic two-rate charger restores battery power within 24 hours after discharge.

Additionally, select models offer remote capacity output (4.8W, 7.8W, 20.8W at 6V/12V DC), providing flexibility for expanded emergency lighting systems.

Designed for industrial safety, this unit is ideal for hazardous manufacturing sites, chemical plants, refineries, and high-risk commercial environments requiring dependable emergency lighting performance.

Technical Specifications

General Features:

• Product Type: Hazardous Location Exit & Emergency Combo (HLCWLEZU)
• Mounting: Wall, top, or end mount (polycarbonate canopy included)
• Housing: Industrial-grade hazardous location construction
• Environment: Designed for explosive/industrial risk areas (hazardous rated applications)

Exit Sign Illumination:

• Light Source: Energy-efficient LED
• Color Options: Red or Green selectable

Emergency Lighting:

• Lamp Heads: Two adjustable MR-16 LED heads
• Wattage: 3.3W per head
• Design: High-performance, optimized spacing

Electrical:

• Input Voltage: Dual 120V/277V

Battery & Backup:

• Battery Options:
  • 6V/12V NiCd (12W & 15W models)
  • 6V/12V Sealed Lead Acid (28W model)
• Backup Duration: Minimum 90 minutes
• Recharge Time: 24 hours
• Charger: Fully automatic solid-state, two-rate charger
• Transfer Switch: Internal solid-state automatic operation

Remote Capacity:

• 4.8W / 7.8W / 20.8W (6V/12V DC output depending on model)

Indicators & Controls:

• Bi-color LED indicator (Green = normal, Red = battery check)
• Charge rate / Power ON LED indicator
• Magnetic test switch for code compliance testing

Installation Features:

• Mounting Canopy: Polycarbonate (top or end mount)
• Wall Mount: Gasketed universal knockout backplate (watertight seal)
• Conduit Entry: Knockouts provided for sealed wiring

Emergency Performance:

• Minimum 90-minute emergency illumination
• Automatic battery activation via solid-state transfer switch
