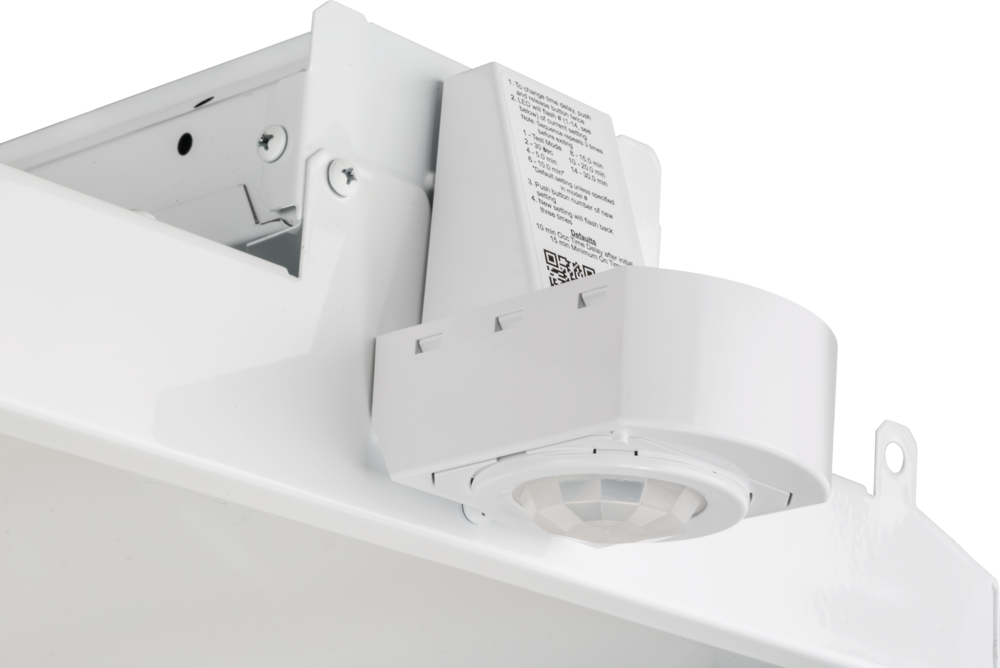

High Bay Occupancy Sensor 360deg - Aisle Coverage

Regular price $69.42 Sale

High Bay Occupancy Sensor 360deg - Aisle Coverage

: In stock

UPC: 655746012628
Shipping/Return Policy
Spec Sheet View Spec Sheet


The LSXR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications. All LSXR Family sensors utilize passive infrared (PIR) detection and feature interchangeable lenses, providing flexibility for multiple mounting height and coverage pattern requirements. All LSXR Family sensors utilize 100% digital Passive Infrared (PIR) detection and power from / switch line voltage. Available options include dual relays, HVOLT powering, and an integrated switching / dimming photocell.

Product Features

  • Four Interchangeable Lenses
  • Integrated Mounting Bracket
  • 100% Digital PIR Detection, Excellent RF Immunity
  • No Field Calibration or Sensitivity Adjustments Required
  • Interchangeable Hot & Load Wires
  • 0-10 VDC Output for Dimming
  • Push-Button Programmable
  • Non-Volatile Settings Memory
  • Convenient Test Mode
  • Green LED Indicator
  • LampMaximizer Control

Dimension and Specs

  • Weight: 6.00oz
  • Size: 3 5/8" x 3 5/8" x 1 1/2" Deep (9.2 cm x 9.2 cm x 3.8 cm Deep)
  • Maximum Load: 800W @ 120 VAC
  • Size (w/ Mounting Flange): 3.75"H x 2.50"W x 4.00"D (9.5cm x 6.4cm x 10.2cm)
  • Operating Temp (Standard): 14° to 122°F (-10° to 50°C)
  • Relative Humidity (LT Option): 20 to 90% non-condensing
  • Minimum Load: None
  • Motor Load: 1/4 HP
  • Frequency: 50/60 Hz
  • Dimming Load: Sinks < 20mA; ~40 Ballasts @ .5mA each
