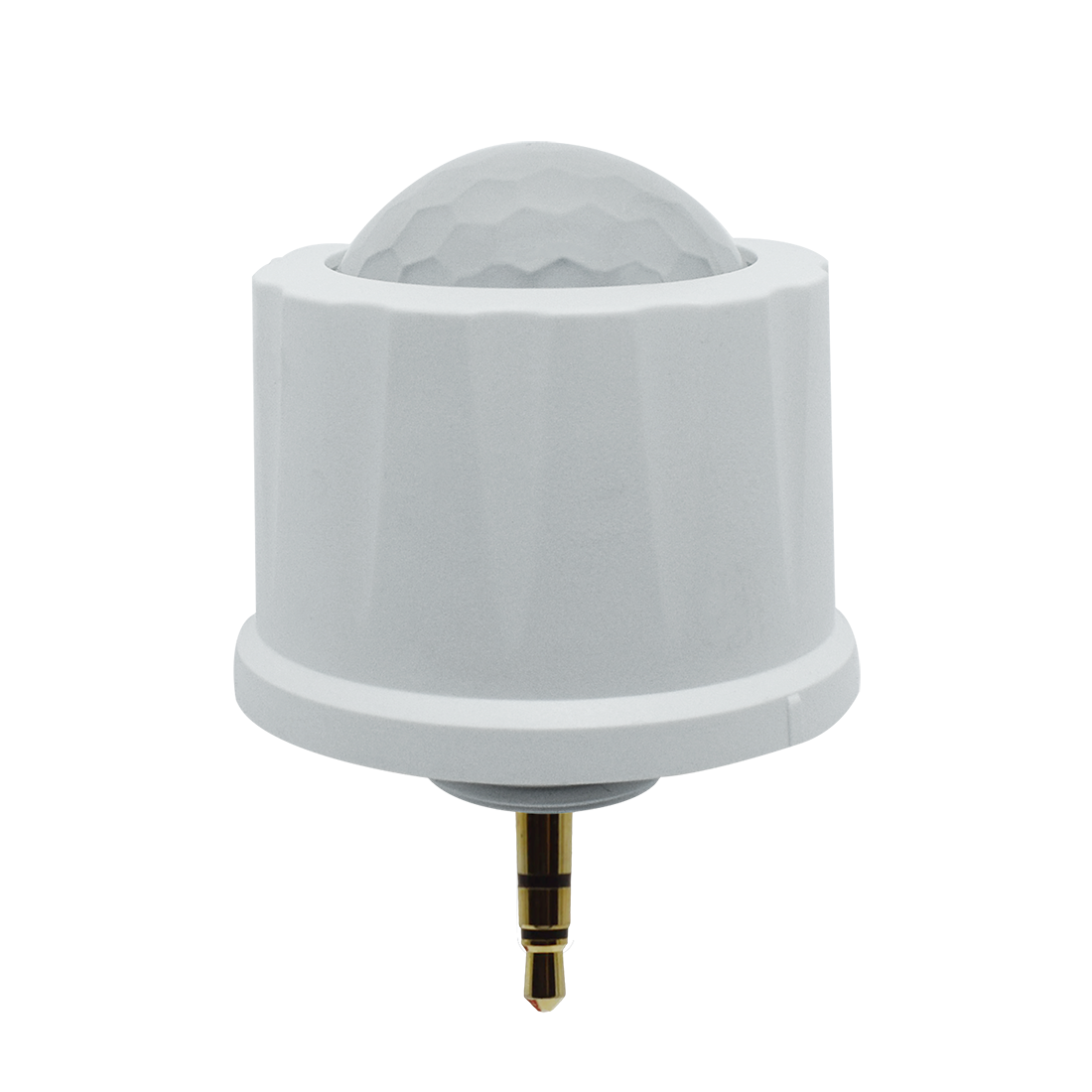

Wall Pack Screw-In PIR Occ Sensor | HD05R Required | 15VDC | HD07VR-PHF-1

The Wall Pack Screw-In PIR Occupancy Sensor is a compact and energy-efficient lighting control accessory designed specifically for the Best Lighting Sensor-Ready Wall Pack Series. Engineered for reliable occupancy detection and daylight harvesting, this screw-in PIR sensor helps reduce energy consumption while improving automation and lighting performance in commercial outdoor applications.

Designed for use with compatible sensor-ready LED wall packs, this PIR occupancy sensor features an RCA/audio jack connector for quick plug-in installation into standard receptacles. Its compact screw-in design simplifies retrofits and new construction projects, allowing contractors and maintenance teams to add smart lighting control without complex wiring modifications.

This sensor supports 0-10V dimming, enabling automatic lighting adjustment based on occupancy and ambient daylight conditions. Integrated daylight harvesting and photocell functionality help maximize energy savings by reducing fixture output when sufficient natural light is available or when spaces are unoccupied.

Operating on 10.5-15VDC input power, the sensor is designed for dependable performance in commercial environments and can mount at heights up to 39 feet, making it ideal for wall packs installed in parking lots, building perimeters, loading docks, walkways, and industrial facilities.

Built for demanding outdoor conditions, the sensor operates in temperatures ranging from -20°C to 60°C, ensuring reliable performance in a wide variety of climates and commercial applications.

The sensor requires a compatible remote control, such as the HD05R remote, to modify factory settings and customize detection range, hold time, daylight threshold, and dimming behavior based on project requirements.

Ideal for commercial buildings, warehouses, parking structures, security lighting, and exterior wall-mounted fixtures, this Screw-In PIR Occupancy Sensor provides smart control, energy savings, and simplified installation for modern LED lighting systems.

Technical Specifications

Product Type: PIR Occupancy Sensor
Application: Sensor-Ready LED Wall Packs
Connection Type: RCA / Audio Jack Screw-In Connector

Electrical

• Input Voltage: 10.5-15VDC
• Dimming: 0-10V
• Functions: Daylight Harvesting & Photocell Control

Performance

• Mounting Height: Up to 39 ft
• Operating Temperature: -20°C to 60°C

Compatibility

• Compatible with Best Lighting Sensor-Ready Wall Pack Series
• Requires compatible remote control for adjusting factory settings
• Recommended Remote: HD05R
