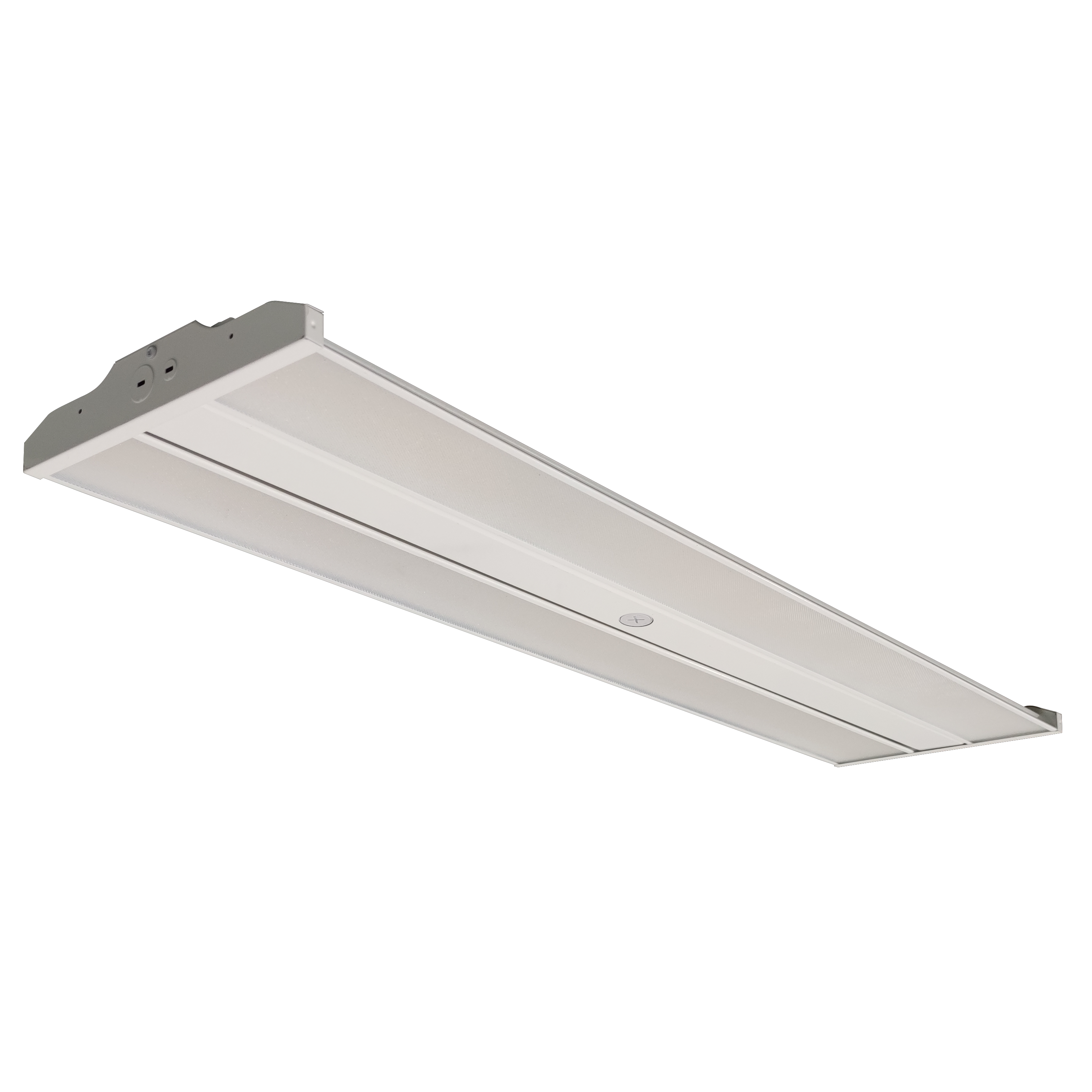

LED Linear High Bay Light Sensor Ready | 36K Lumens Max | CCT Selectable | HBLSR-363024L-4K5K

Maximize lighting efficiency, visual performance, and operational savings in large-scale commercial and industrial spaces with the Linear Double Lens Sensor-Ready High Bay. Engineered with a heavy-duty, stamped steel housing in a durable white powder-coat finish and fitted with high-impact polycarbonate double lenses, this high-output LED fixture is built for demanding high-ceiling environments. It serves as an ideal solution for distribution centers, manufacturing plants, industrial warehouses, logistics hubs, gymnasiums, and big-box retail facilities.

Featuring Tri-Lumen field selectability, this fixture allows contractors to easily customize illumination levels on site by selecting between 24,000 lumens, 30,000 lumens, and 36,000 lumens. In addition, integrated color temperature controls enable seamless switching between 4000K neutral white (for clean, balanced visibility) and 5000K cool white (for high-contrast, task-focused lighting). Powered by patent-safe LEDs rated for an exceptional L70 lifespan of 134,000 hours (and L90 life of 40,000 hours), it provides long-lasting illumination (CRI >80) while eliminating costly maintenance cycles.

Designed for smart lighting automation, the fixture features an integrated screw-in sensor socket that accepts plug-and-play occupancy sensors and daylight harvesting controls (sold separately). A medium beam distribution lens comes standard, with optional narrow or wide optical distribution lenses available to tailor coverage for narrow warehouse aisles or open floor plans. Operating across universal line voltages (120-277V AC at 50-60Hz) with standard 0-10V continuous dimming drivers, high power factor (>0.90), and low total harmonic distortion (<20%), this high bay is DLC 5.1 Premium listed, cULus damp location rated for extreme ambient temperatures (-40°C to 50°C / -40°F to 122°F), includes 6kV surge protection, and comes complete with a V-hook chain mounting kit backed by a 5-year warranty.

Key Features:

• Field-Selectable Lumen & CCT Versatility: Toggle between 3 high-output lumen levels (24,000 / 30,000 / 36,000 LM) and 2 color temperatures (4000K / 5000K) to meet specific ceiling height and project needs.

• Screw-In Sensor Ready: Integrated twist-lock sensor socket enables quick, tool-free installation of motion, PIR, or daylight sensors (sold separately).

• Industrial-Grade Construction: Stamped steel housing with a protective white finish and shatter-resistant polycarbonate double lenses designed for rugged environments.

• DLC 5.1 Premium Qualified: Eligible for top-tier utility energy efficiency rebates when used with standard medium distribution optics.

• Universal Voltage & Smooth Dimming: Operates reliably on 120-277V AC circuits with standard 0-10V DC continuous dimming capabilities.

• Safety & Code Compliant: cULus listed for damp locations (-40°F to 122°F), FCC Part 15 Class A compliant, and equipped with 6kV input transient surge protection.

Technical Specification Table

Packaging & Logistics Specifications

• Included Hardware: Standard V-Hooks and 1-Meter Suspension Chain Kit

• Optional Field Accessories: Wire Guards, Surface Mount Brackets, Pendant Conduit Adapters, Screw-In Motion/Daylight Sensors, Emergency Battery Backup Drivers
