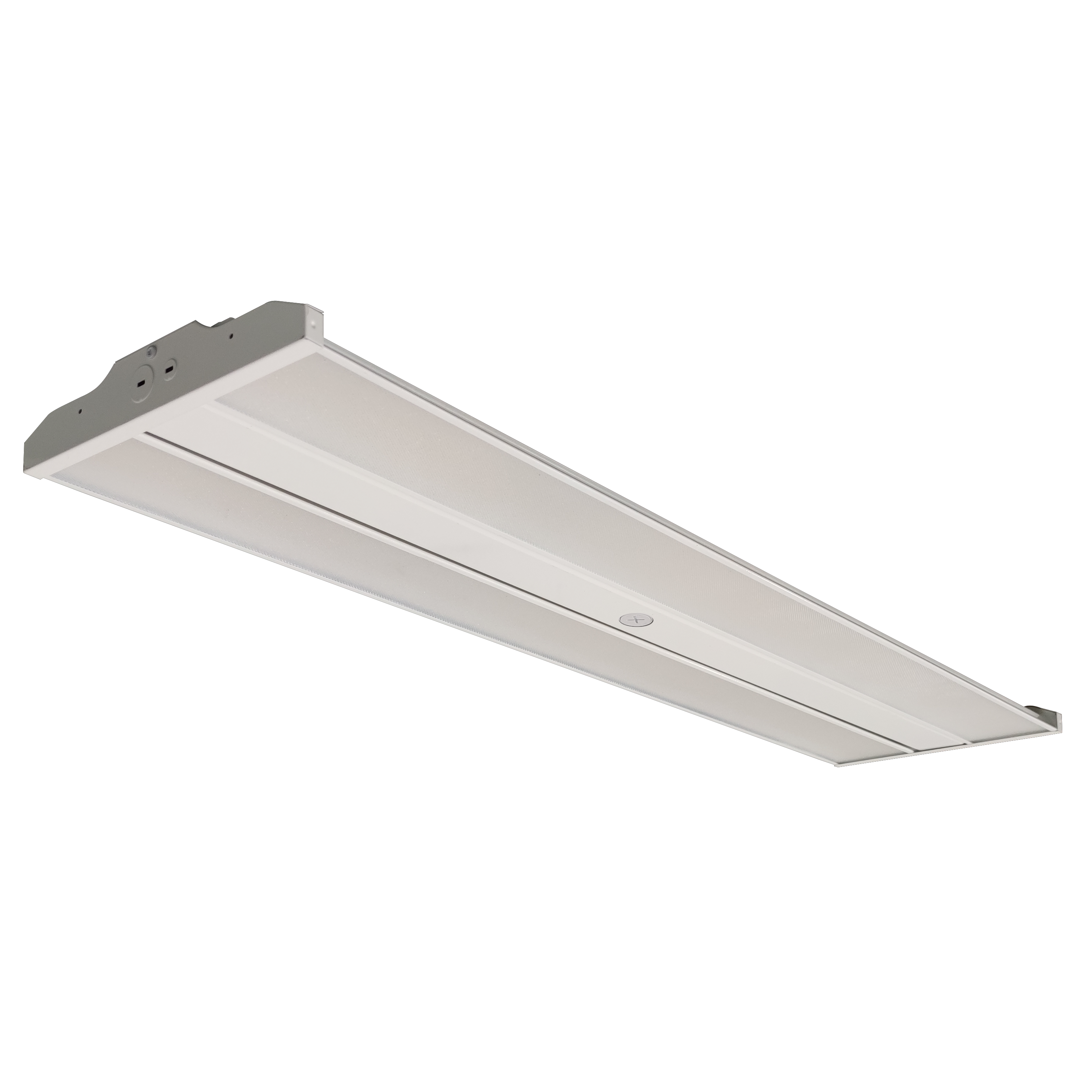

Industrial-linear-led-high-bay-15000-18000-24000-lumens-selectable
Screw-in-sensor-ready-commercial-linear-led-high-bay-fixture

LED Linear High Bay Light Sensor Ready | 24K Lumens Max | CCT Selectable | HBLSR-241815L-4K5K

$110.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Certs:

UL Listed DLC Premium Certified FCC Certified

Maximize energy efficiency, operational performance, and lighting control in industrial facilities with the Linear Double Lens Sensor-Ready High Bay. Engineered with a stamped steel housing in a clean white finish and fitted with high-impact polycarbonate double lenses, this commercial-grade fixture delivers reliable, high-lumen illumination tailored for high-ceiling applications. It serves as an ideal LED solution for distribution centers, manufacturing plants, logistics warehouses, gymnasiums, and big-box retail spaces.

Featuring Tri-Lumen field selectability, this fixture allows contractors to easily toggle between 15,000 lumens, 18,000 lumens, and 24,000 lumens on site. It also incorporates field-selectable color temperature controls to switch between 4000K neutral white and 5000K cool white output. Powered by patent-safe LEDs rated for an exceptional L70 lifespan of 134,000 hours (and L90 life of 40,000 hours), it ensures long-lasting visual clarity while reducing maintenance overhead.

Equipped for smart energy integration, the fixture features a built-in screw-in sensor socket for quick attachment of occupancy sensors and daylight controls (sold separately). A medium beam distribution lens comes standard, with optional narrow or wide optics available for specialized aisle or open-area layouts. Running on universal input voltage (120-277V AC) with standard 0-10V continuous dimming, high power factor (>0.90), and low harmonic distortion (<20%), this high bay is DLC 5.1 Premium listed, cULus damp location rated for extreme temperatures (-40°C to 50°C), includes 6kV surge protection, and comes complete with a V-hook chain mounting kit backed by a 5-year warranty.

Key Features:

  • Field-Selectable Output & CCT: Easily switch between 3 lumen levels (15,000 / 18,000 / 24,000 LM) and 2 color temperatures (4000K / 5000K) to meet specific project needs.

  • Screw-In Sensor Ready: Integrated sensor port accepts plug-and-play occupancy and daylight harvesting sensors (sold separately) without opening the fixture.

  • Durable Construction: Heavy-duty stamped steel housing with a protective white finish and shatter-resistant polycarbonate double lenses.

  • DLC 5.1 Premium Rated: Qualified for top-tier utility energy efficiency rebates when configured with standard medium distribution optics.

  • Universal 120-277V Input: Integrates smoothly into commercial electrical infrastructures with 0-10V continuous dimming capabilities.

  • Code & Safety Compliant: cULus listed for damp locations (-40°F to 122°F), FCC Part 15 Class A compliant, and equipped with 6kV surge suppression.

Technical Specification Table

Technical Specification Product Details Profile
Fixture Type Linear Double Lens Sensor-Ready LED High Bay
Primary Applications Warehouses, Manufacturing Plants, Commercial Gyms, Retail Aisles
Housing & Finish Stamped Steel Housing / White Finish
Lens Material & Optic Polycarbonate Double-Lens (Medium Distribution Standard)
Selectable Luminous Output 15,000 / 18,000 / 24,000 Lumens (Tri-Lumen Selectable)
Selectable CCT Options 2-CCT (4000K Neutral White / 5000K Cool White)
Color Rendering Index (CRI) CRI >80
LED Rated Lifetime L70 ≥134,000 Hours / L90 ≥40,000 Hours (Patent-Safe LEDs)
Input Voltage Range 120-277V AC (50-60Hz); 347-480V Optional (via Step-Down Transformer)
Dimming Protocol 0-10V DC Continuous Dimming
Power Factor / THD Power Factor >0.90 / Total Harmonic Distortion <20%
Surge Protection 6kV Input Transient Protection
Sensor Compatibility Screw-In Sensor Socket Ready (Sensors Sold Separately)
Operating Temperature -40°C to 50°C (-40°F to 122°F)
Included Mounting Hardware V-Hooks and 1-Meter Chain Mount Kit
Optional Mounting Hardware Surface Mount Kit, Pendant Mount Kit (1/2" Rigid Conduit), Cable Suspension
Optional Accessories Steel Wire-Guard Kits, Emergency Battery Backup Driver
Regulatory Compliance cULus Listed (Damp Locations), FCC Part 15 Class A Compliant
DLC Listing DLC 5.1 Premium (Medium Optic); DLC 5.1 Standard (Narrow/Wide)
Manufacturer Warranty 5-Year Limited Warranty (Housing & Electronics)

Packaging & Logistics Specifications

  • Included Hardware: Standard V-Hooks and 1-Meter Suspension Chain Kit

  • Optional Field Accessories: Wire Guards, Surface Mount Brackets, Pendant Adapters, Screw-In Motion/Daylight Sensors, Emergency Battery Backup
