Lensed Step Light | Aluminum Outdoor Surface Mount Fixture with Frosted Glass
| SKU(s) | CL-350-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 5" |
| Height | 3" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

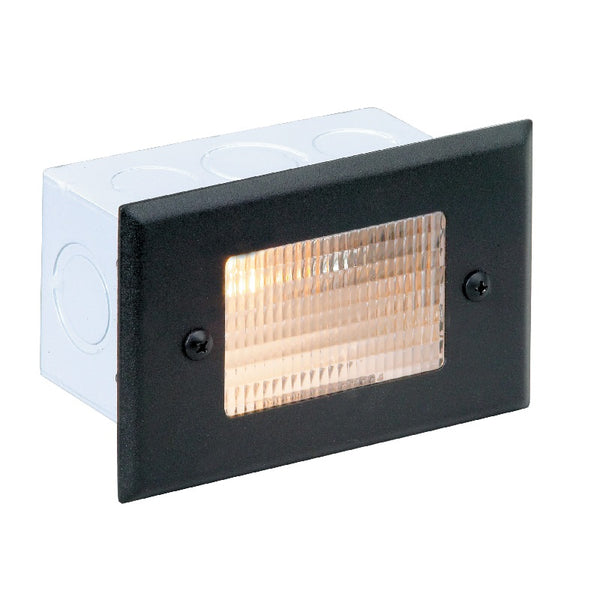

The Lensed Step Light is a versatile outdoor lighting fixture designed to enhance safety and style in steps, pathways, patios, and masonry installations. Crafted from durable aluminum, it is available in four elegant finishes: black, bronze, white, and silver plated, allowing seamless integration into any architectural design.
This boxed step light features a frosted, tempered, and heat-resistant glass lens that delivers a soft, diffused glow, ideal for low-level accent lighting. It is equipped with a top-grade fixed S.C. bayonet socket and supports 12V SCB lamps up to 18W (halogen), ensuring reliable illumination. For energy efficiency, the fixture also operates with LED lamps across a 9–17V voltage range.
The housing includes a white powder-coated steel recessed mount box, designed for secure installation into concrete, brick, or masonry. Prewired with a 12-inch direct burial cord, the fixture provides flexibility and convenience during installation. Optional universal connectors (CX-839) or silicone-filled wire nuts (CX-854) are available separately for weatherproof connections.
Built for outdoor use only, this value-grade step light requires a remote 12V transformer (sold separately) and offers multiple accessory options to complete your setup. Backed by a one-year manufacturer’s warranty on the housing, the Lensed Step Light ensures dependable performance, safety, and long-lasting durability for residential and commercial projects.
$84.65 /each
| SKU(s) | CL-324-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 3-3/4" |
| Diameter | 3-7/8" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$100.85 /each
| SKU(s) | CL-394-BK |
| Color | Black | Bronze |
| Lamp | 2.5W |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 25ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$58.55 /each

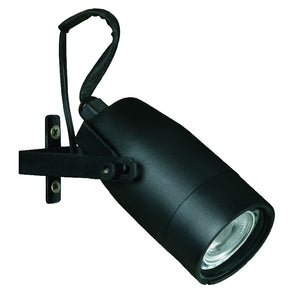

| SKU(s) | CL-100-BK |
| Color | Black | Bronze | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze & White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 5" |
| Diameter | 2-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$79.25 /each
| SKU(s) | CL-631-VG |
| Color | Green |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Green |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 30" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
