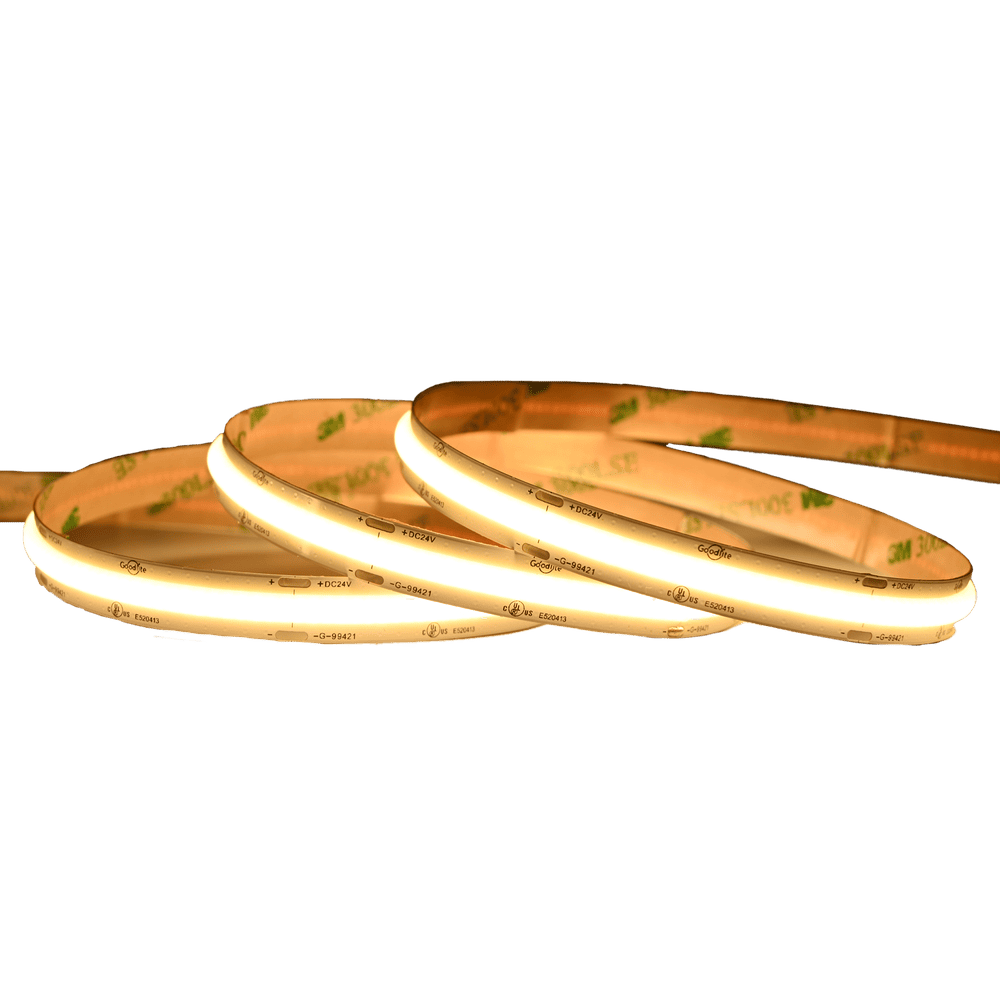

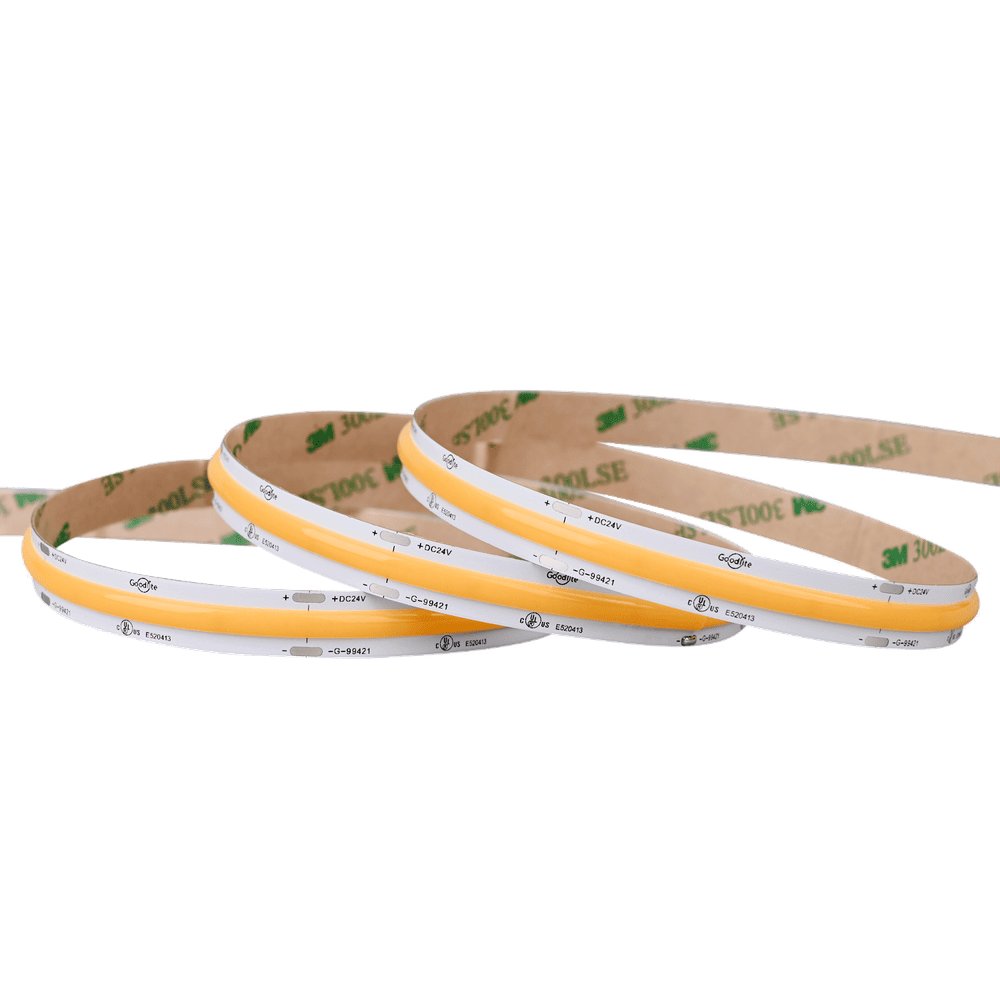

16.4FT COB LED Tape Light 3W/ft 24V CRI93 IP20

The 3W/ft 24V COB LED Tape Light 16.4FT Series delivers smooth, dot-free linear illumination engineered for architectural accent and task lighting applications where visual comfort and uniformity are essential. Utilizing advanced Chip-on-Board (COB) LED technology, this flexible strip produces continuous light without visible diode spotting, making it ideal for under-cabinet lighting, shelving, coves, niches, toe-kicks, and decorative millwork in residential and commercial interiors.

With a high color rendering index (CRI 93), the series ensures accurate color appearance for finishes, materials, and merchandise. The wide 120° beam angle provides even surface washing and ambient glow while minimizing shadows and glare. Available in five popular color temperatures from warm 2700K to crisp 5000K, it supports layered lighting design across kitchens, retail displays, hospitality accents, and architectural details.

Each 16.4-foot (5 m) roll features a slim 10 mm width and ultra-low 1.8 mm profile for seamless integration into aluminum channels and tight recesses. Precision cut points every 1.97 inches allow installers to customize lengths for exact layouts. Industrial-grade 3M 9495 adhesive backing ensures secure mounting on wood, metal, and composite surfaces.

Operating on stable 24V low-voltage power, the tape supports runs up to 32 feet per feed for consistent brightness and reliable performance. UL listing, IP20 dry-location rating, and a 3-year warranty make the 3W/ft COB Tape Light Series a dependable solution for professional lighting designers, contractors, and cabinet manufacturers seeking energy-efficient, high-quality linear illumination.

Technical Specifications

Series: 3W/ft 24V COB LED Tape Light
Models: G-99420, G-99421, G-99422, G-99423, G-99424

General

• Roll length: 16.4 ft (5 m)

• Width: 10 mm

• Height: 1.8 mm

• Cut distance: 1.97 in

• Adhesive: 3M 9495 300MP

• LED type: COB (dotless)

Optical

• Beam angle: 120°

• CRI: 93

• Output per 16.4 ft roll: 285–315 lm

Available Color Temperatures & Codes

• 2700K – Soft White — G-99420 — 024431994202

• 3000K – Warm White — G-99421 — 024431994219

• 3500K – Neutral White — G-99422 — 024431994226

• 4100K – Cool White — G-99423 — 024431994233

• 5000K – Super White — G-99424 — 024431994240

Electrical

• Voltage: 24V DC

• Power: 3 W/ft

• Max run: 32 ft

Environmental & Compliance

• Location rating: IP20 (dry location)

• Certification: UL Listed

• Warranty: 3 years

Packaging

• Inner pack: 25

• Master pack: 100
